E-ink E-paper Display module 3.3V 2.04 inch 172x72

-23%
Description:

This E-ink display module is specially made for E-ink display development, no need to build any additional circuit and component, you can run this E-ink display module directly with your project.
Don't know how to use it? Check out our step by step tutorial.

Features:
  • Ultra low power consumption
  • Super wide viewing angle - near 180°
  • Extra thin & light
  • High Resolution
  • SPI interface
  • Four gray shade colors
  • All necessary component included
  • Integrating boosted circuit
Specifications:
  • Resolution: 172x72
  • Display thickness: 1.18mm
  • Display Dimension: 2.04inch,
  • Module dimension: 30.13x60.26mm
  • Pixel Pitch (mm): 0.28(H) X 0.28(V) / 95dpi
  • Contrast Ratio: 10:1
  • Display Color: 4 gray shade colors, White, Gray, Deep gray, Black
  • Refresh Time (room temp.): 1 sec
  • Interface: SPI
  • Operation Temperature: 0~50°C
  • Storage Temperature: -20~60°C
  • Module Weight: 15g
  • Port:

         SPI: CS, SCLK, MOSI(SDA)
         D/C: Data/command control
         BS1: BUS interface selection pin
         Bu: Busy state output pin
         RES: Reset signal input
         VCC: 3.3V
         GND: Ground



Technical Support:

Provide demo code based on STM32, smoothly transfer to other MCU, including 3.3V Arduino. If you need further help, please email to shop@smart-prototyping.com.

Datasheet:

Display driver IC SD1306 datasheet

Demo for STM32

Demo connecting method:

Display module STM32
SDA PA8
SCL PA9
CS PB8
DC PB15
RST PB14
BU PB13
BS PB11

How to connect to Arduino:
Display a picture on Arduino guide

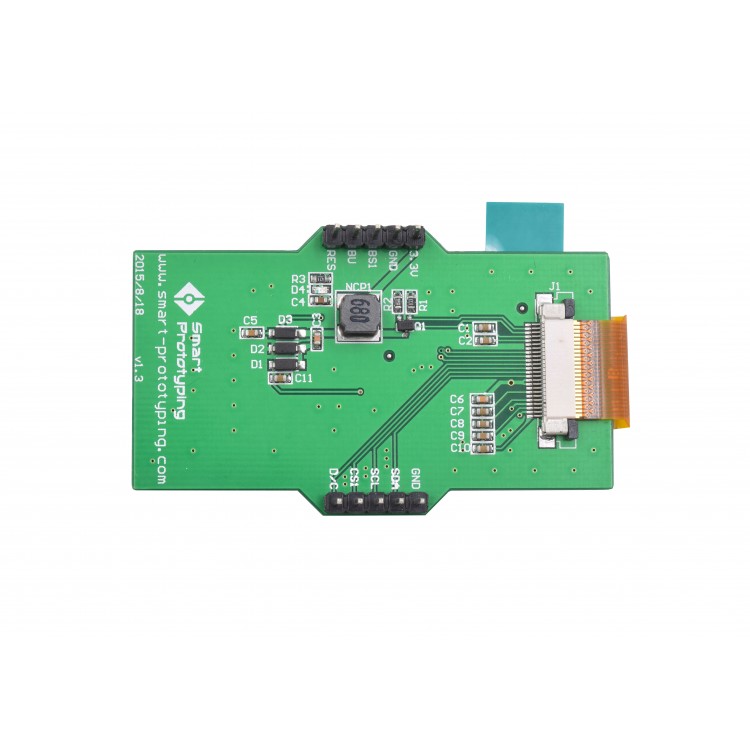

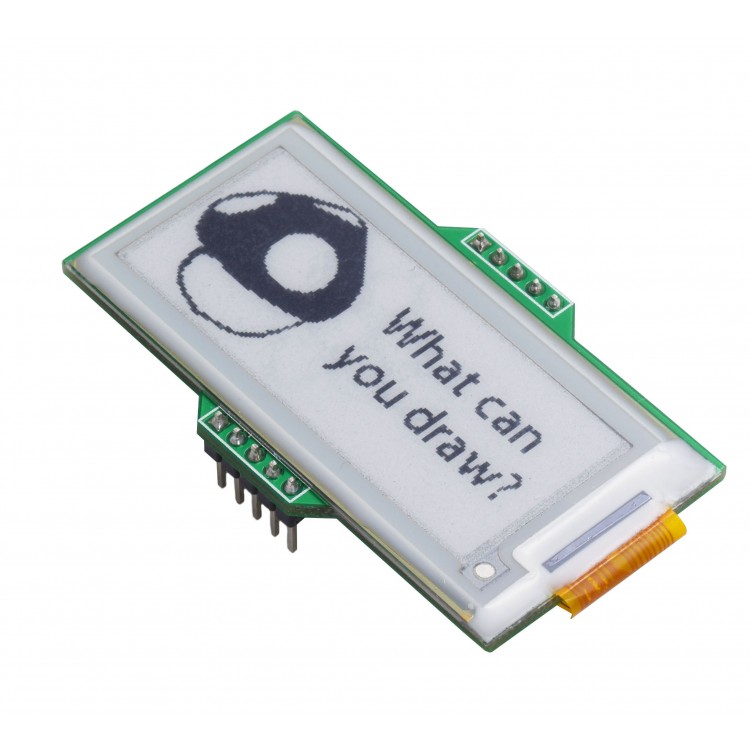

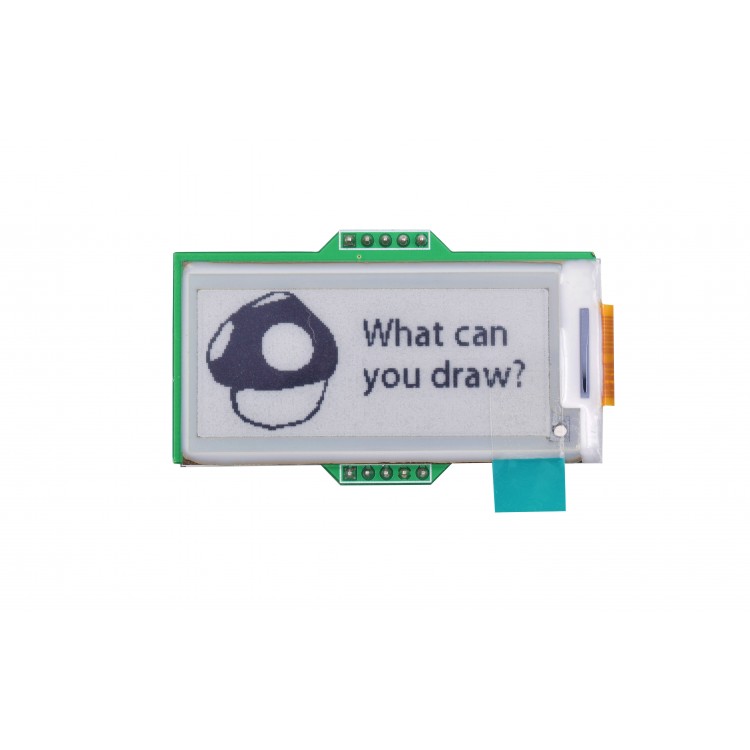

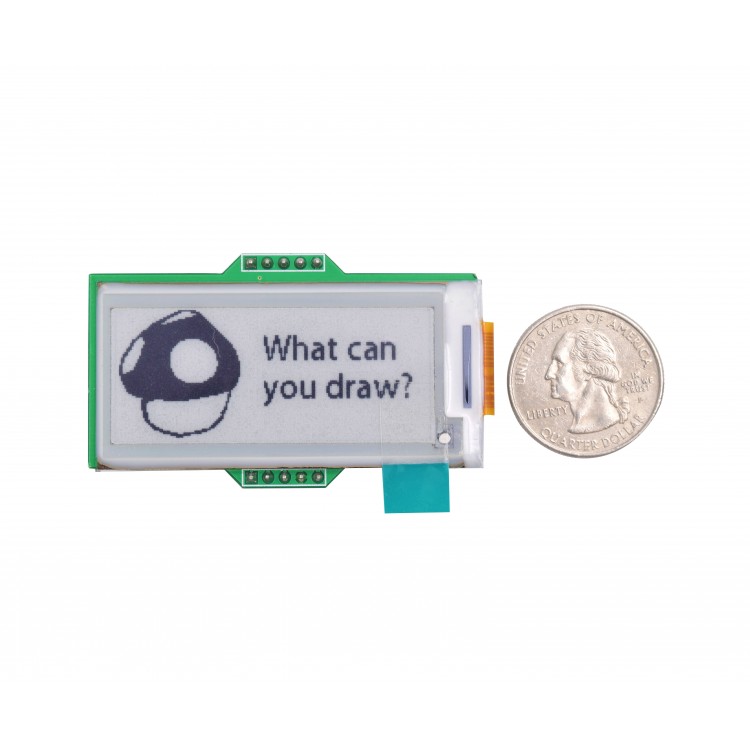

Product pictures:
