Description

The A6 Module provides a serial port to communicate via GPRS, sending text messages and phone calls. The GPRS functions can be used for IoT project which does not require WiFi connection condition. The GSM functionality of the module provides more ways to send commands to your IoT device.


Combine with our breakout board and get started on your IoT communication!



Specifications

  • Dimension: 22.8×16.8×2.5mm
  • Frequency: 850, 900, 1800, 1900 MHz
  • GPRS multi-slot: 12, 1-12 configurable
  • GPRS Station: Class B
  • Compatible GSM Phase 2/2+: Class 4 (2W @ 850/ 900 MHz), Class 1(1W @ 1800/1900MHz)
  • Operating Voltage: 3.3 - 4.2V
  • Current: 1.3mA @ DRX=5, 1.2mA @DRX=9
  • Temperature: -30 degree to +80 degree
  • Weight: 3.0g
  • AT Command: Standard GSM07.07,07.05 AT command and Ai-Thinker extend command
  • GPRS Class 10 speed: max. 85.6 kbps (up), 42.8kbps (down)
  • Support PBCCH, CSD, USSD
  • Protocol Stack: PPP, TCP, UDP, HTTP, FTP, SMTP, MUX
  • Certification: CE, FCC, ROSH, CTA


Datasheet

A6 Datasheet

A6 GSM AT Commands


Write a review

Note: HTML is not translated!
    Bad           Good

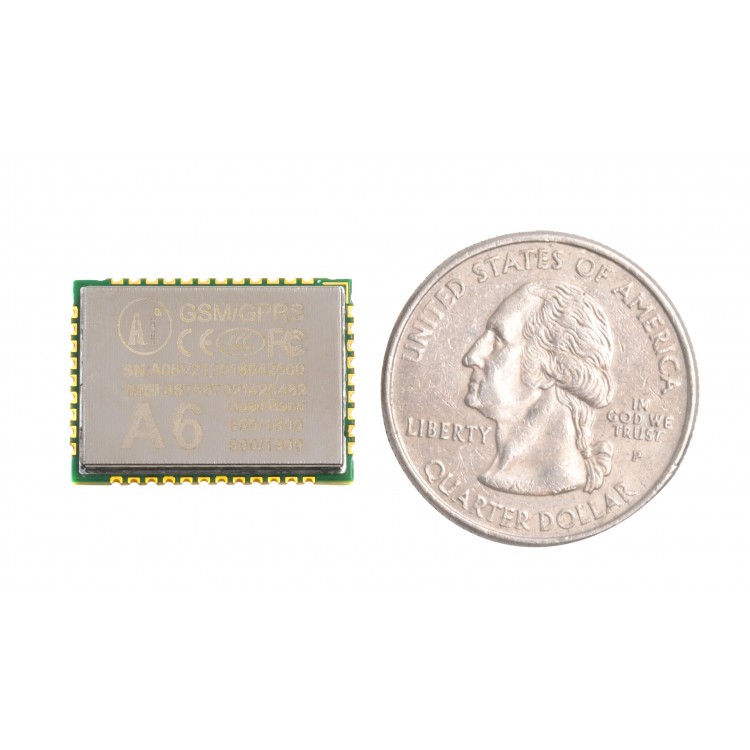

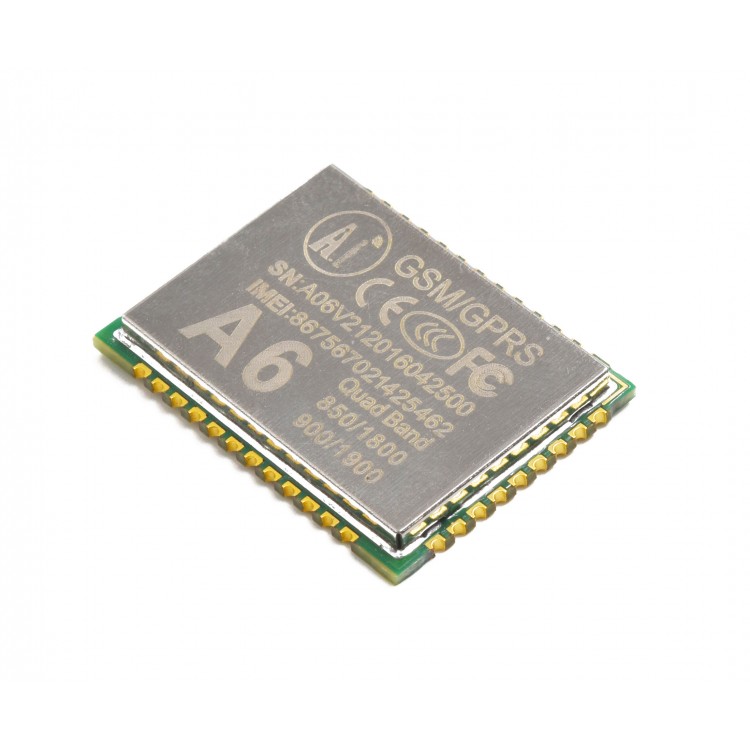

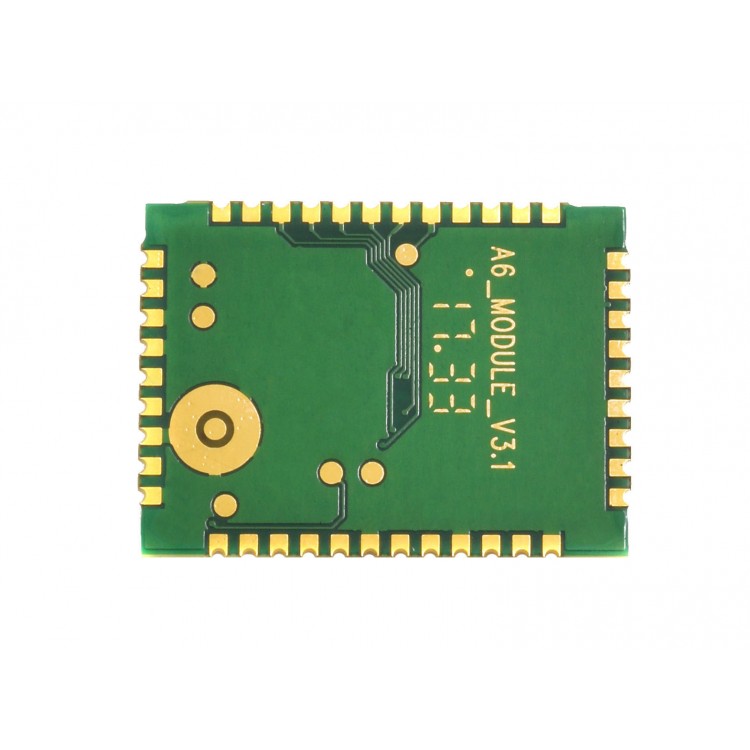

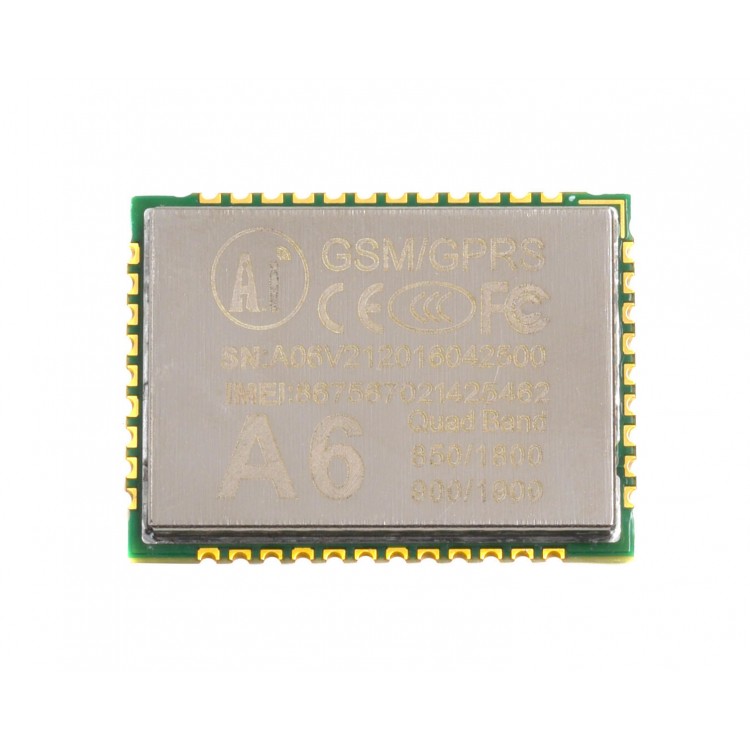

GPRS/GSM Module A6

Expand your ability to control your IoT device by using a GPRS + GSM module
  • Product Code: 101866
  • Availability: In Stock
  • $5.99
  • 5+$5.70
  • 10+$5.60
  • 30+$5.30
  • 50+$5.10
  • 100+$4.80
