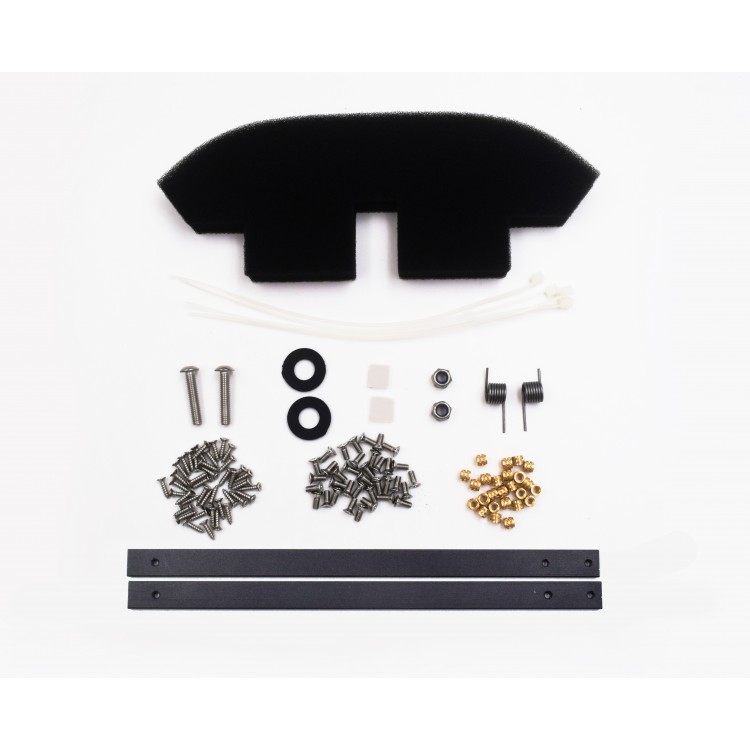

This is the sub-kit for the Project North Star kit, this kit contains all the mechanical parts except the 3D printed parts.
Check what’s inside the kit here:
Group | No. | Part Name | Qty per Kit | Leap Motion Part Number |
Mechanical Parts (excl. 3D Printed Parts) | 4 | Spring Left (0.304-in OD Torsion Spring 180 Deg. L-Hand Wound) | 1 | #630-001 |
| 5 | Spring Right (0.304-in OD Torsion Spring 180 Deg. R-Hand Wound) | 1 | #630-002 | |
| 6 | M2.5x0.45 6mm Long Steel Flat Head Screw 90 Deg CS | 28 | #640-001 | |
| 7 | M4x0.7 20mm Steel Button Head Socket Screw | 2 | #640-002 | |
| 8 | M2x8mm Long Thread-Forming Screws for Plastic | 36 | ~#650-001 | |
| 9 | M4x0.7mm Zinc Plated Nylon Insert Hex Lock Nut | 2 | #660-001 | |
| 10 | 8x16x2mm Rubber Washer | 2 | ~#670-001 | |
| 11 | M2.5x0.45 3.4mm Long Heat-Set Insert for Plastics | 21 | #690-001 | |
| 12 | 3x10x165mm 6061 Aluminum Bar Slide (Pre-Drilled & Threaded) | 2 | ~#900-005 | |
| 13 | Gen 2 Welding Headgear | 1 | ~#900-001 | |
| 14 | Foam Forehead Padding (Pre-Cut) | 1 | ~#900-003 | |
| 15 | Thin Foam | 1 | ~#900-004 | |
| 16 | 2mm Thick Self-Stick Anti-Skid Rubber 3M Tape (Pre-Cut) | 4 | ~#900-002 | |
| 17 | Cable Ties 3*100mm | 10 | --- |
The included parts are almost the same as those from Leap motion’s release 3.
We’ve also pre-cut, tapped, drilled, or otherwise prepared some of the parts that were originally specified as raw materials..
- Springs: We’ve cut them into the exact lengths necessary for use.
- Aluminum bars: We’ve drilled and tapped the holes with 0.45mm thread pitch, so you don’t need to do it yourself. We’ve also added a single threaded hole at the back end of the bar, allowing solid attachment of the end caps.

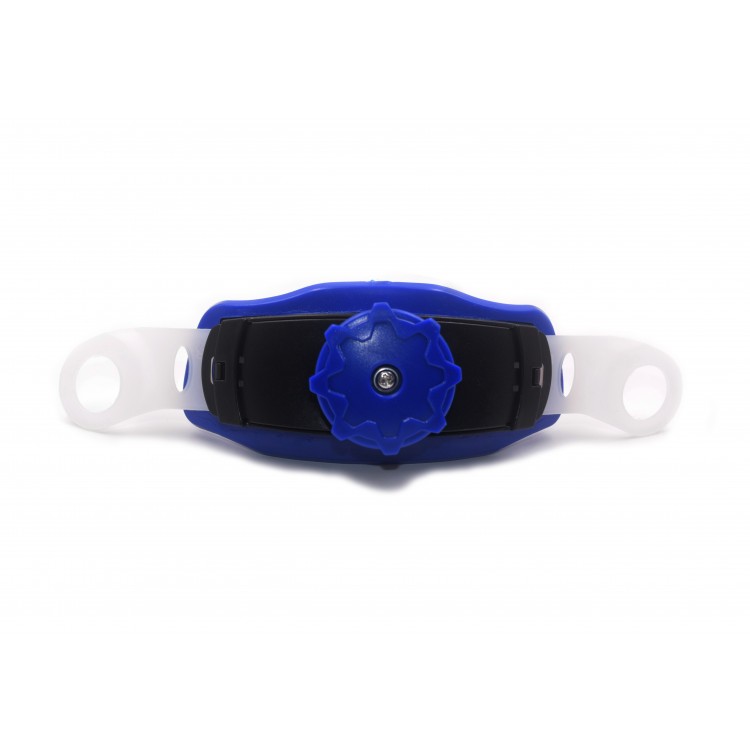

- Gen 2 welding headgear: we’ve opted to include the Gen 2 version, as opposed to the Gen 3 specified in Leap motion’s current design. We’ve done this for pricing and availability reasons. As the Gen 2 only constitutes two dollars of the kit’s price, it won’t be a big waste if you opt to source the Gen 3 headgear locally by yourself.
- Foam forehead padding: We’ve cut the foam into the right shape and size for the 3D printed parts, which should save you significant time and effort.
- We’ve also included some zip ties, for all your cable management needs. After all, one can never have too many zip ties. Right?
