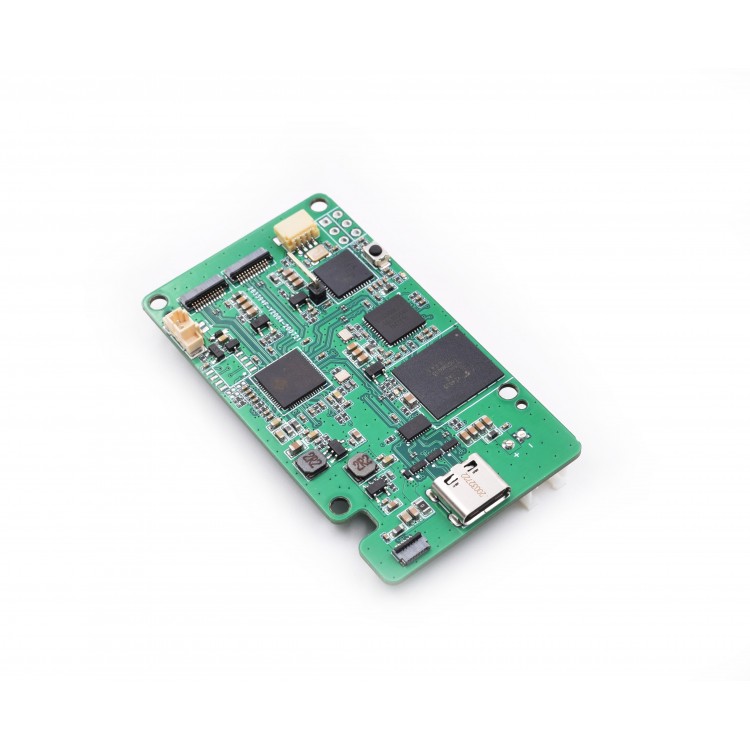

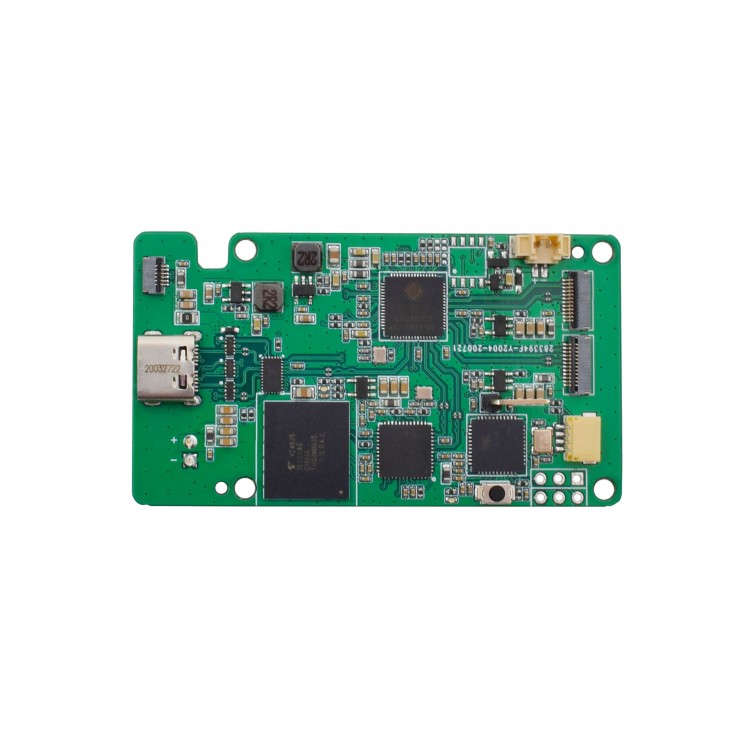

This bundle includes CombineReality’s North Star Integrator, a USB Hub System with integrated Arduino and flash drive. It cuts down the use of cables on all Project North Star headsets from 4 to 2 and is packed with a bunch of features:

• USB-C hub, two USB 3.0 ribbon connectors, and one USB 2.0 ribbon connector
• 512MB on-board flash drive (only works when connected to a USB 3.0 host)

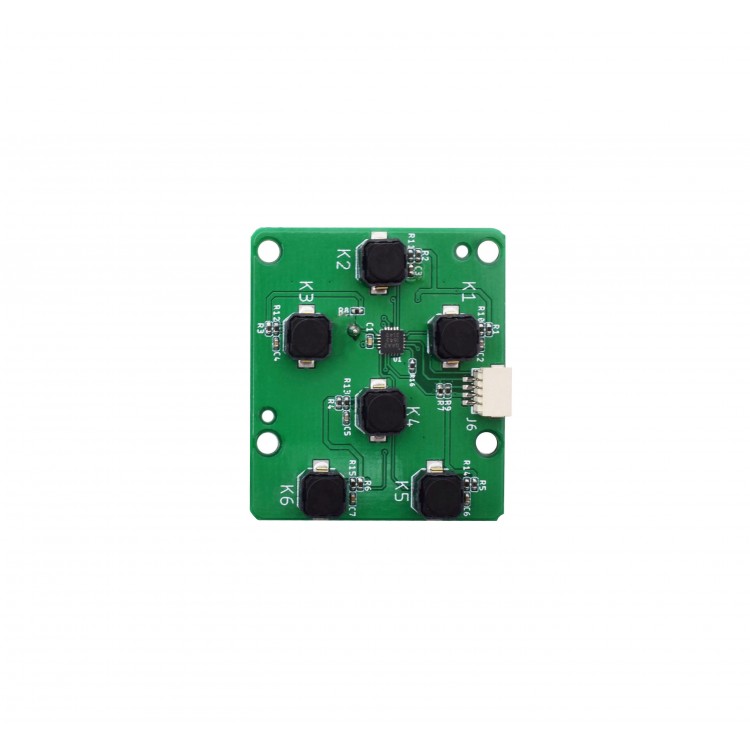

• Arduino Leonardo compatible microcontroller, featuring a Qwiic connector that can be used to connect additional sensors like an IMU, as well as HID buttons that can emulate keyboard keys. A button breakout board is included, and the microcontroller is preflashed with firmware that maps the buttons to the default ergonomics adjustment keys. (Eye relief, eye position, and IPD)
• Also allows for manual power reset of sensor USB ports via a GPIO pin.

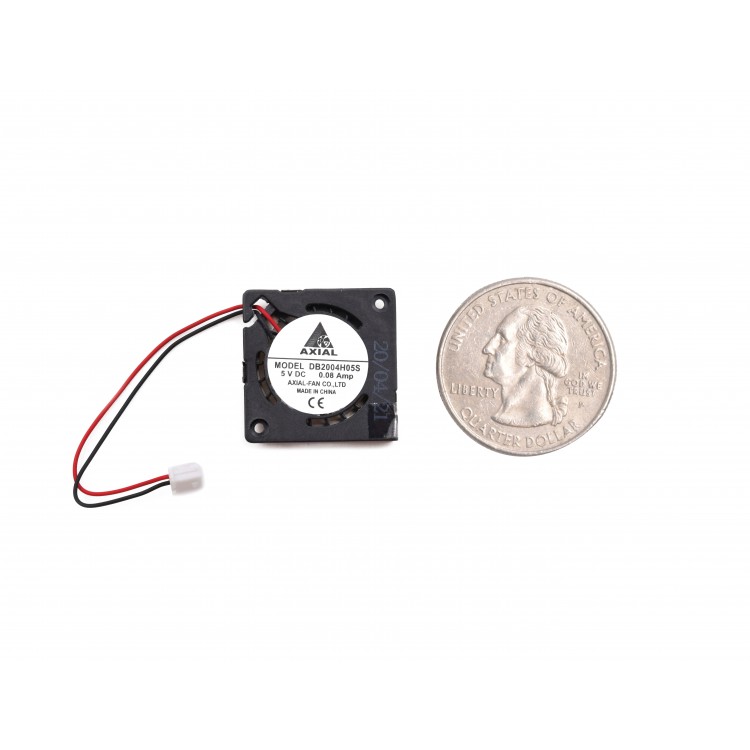

• A fan, the speed of which is controlled by the Arduino-compatible microcontroller.
• A thermistor for a more intelligent fan speed control (new)
• A ribbon connector that lets the Arduino on the hub relay commands and debug output to and from the serial UART of the display driver board (new)

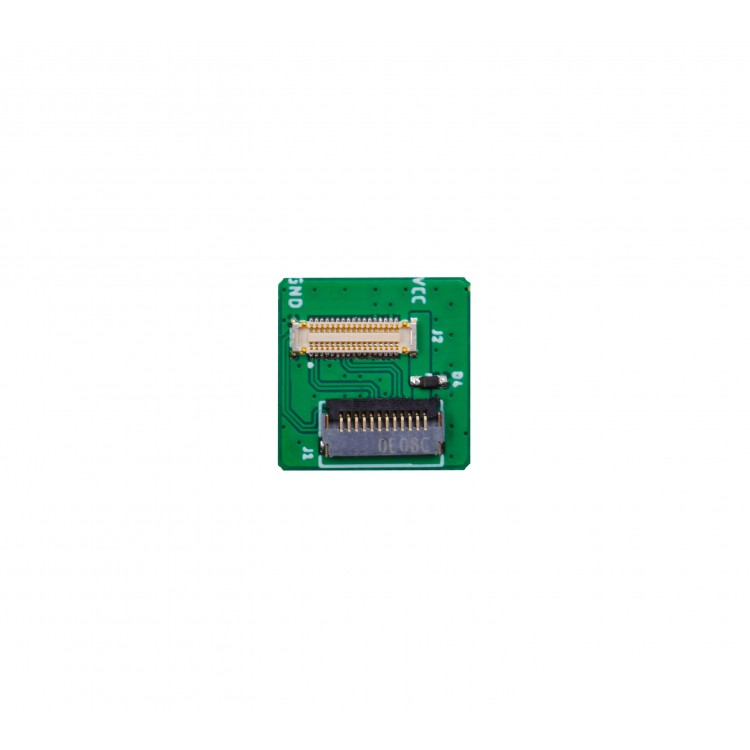

• Ribbon adapter board for Intel® RealSense™ T261 embedded 6-DOF module (ribbon cable included)

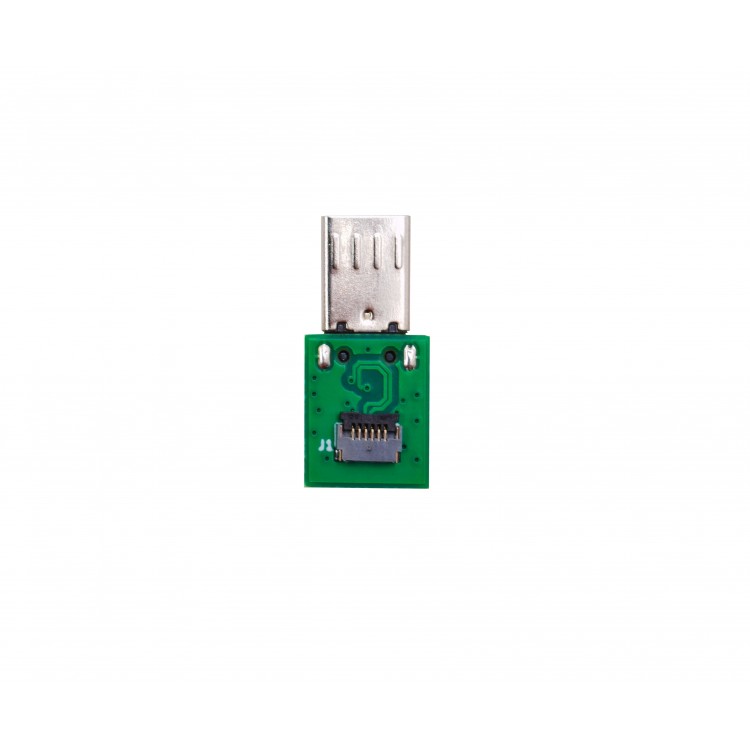

• Ribbon adapter board for Leap Motion Controller (ribbon cable included)

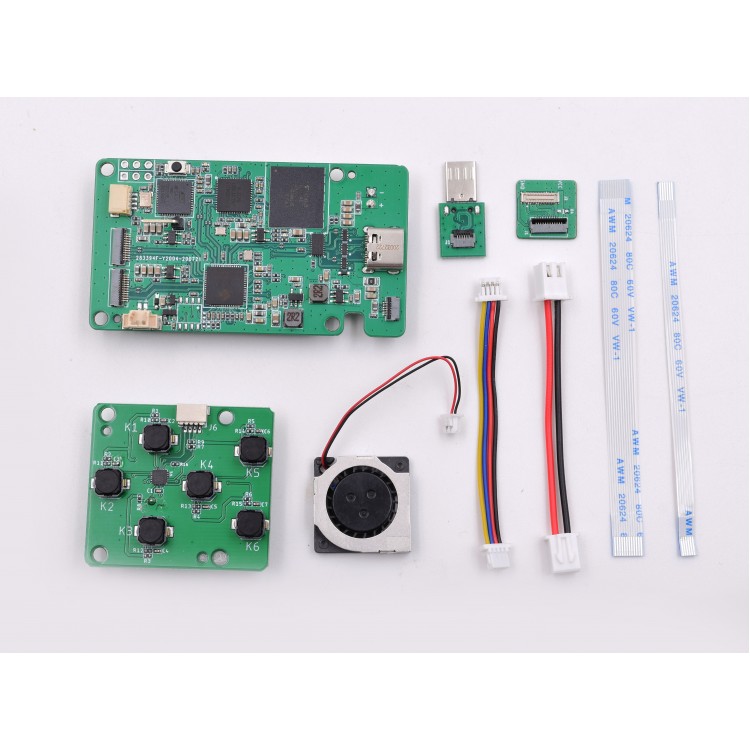

• For a full overview of the kit's content, please check the Bill of Materials tab.



If you have any questions or requests, please contact us.



--

Useful Links

This headset kit requires a certain level of technical expertise. Please consult these technical resources before purchasing:

• North Star Integrator Hub EagleCAD Files

• Project North Star Discord Community
• Community documentation
• Hand alignment tool
• CombineReality website
• Leap Motion Project North Star Github
• Leap Motion (Ultraleap) Blog
