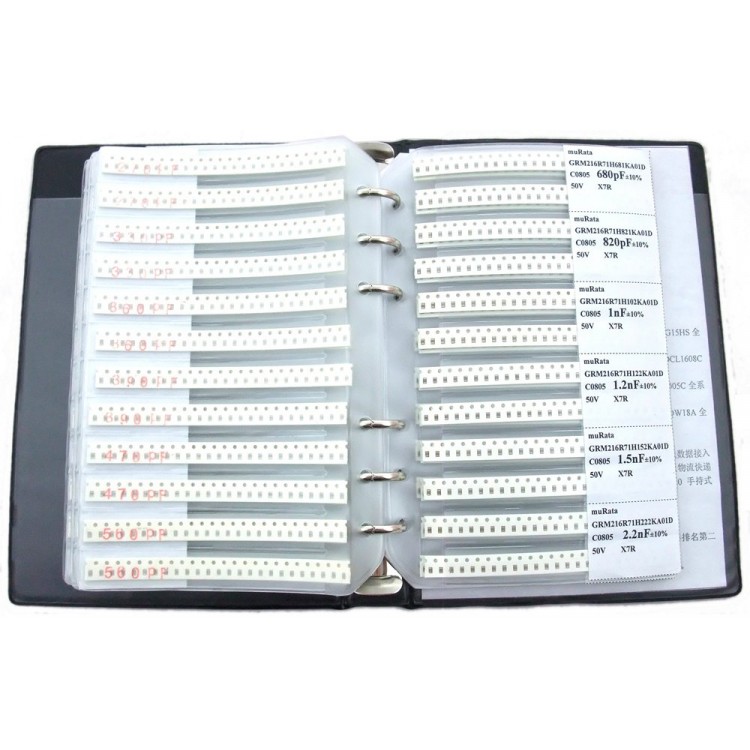

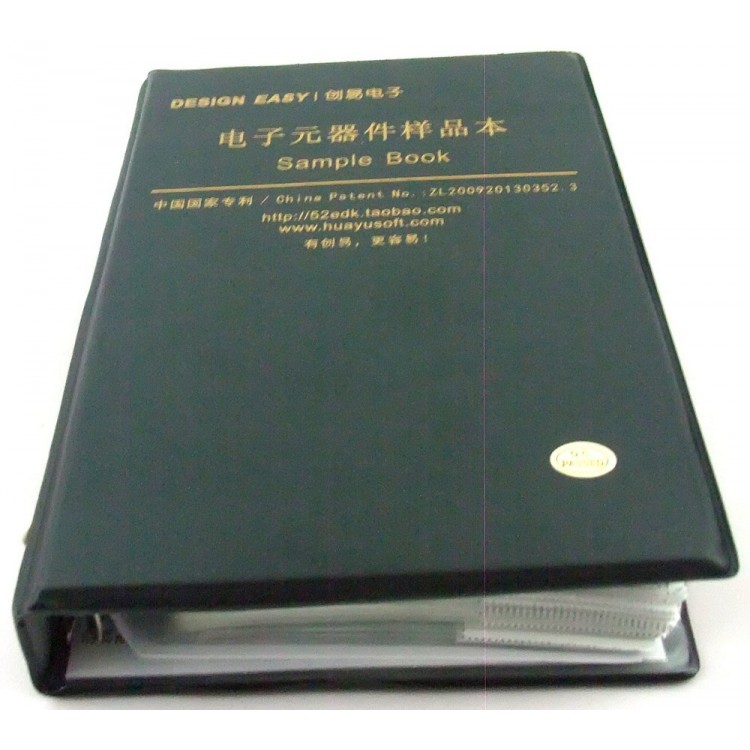

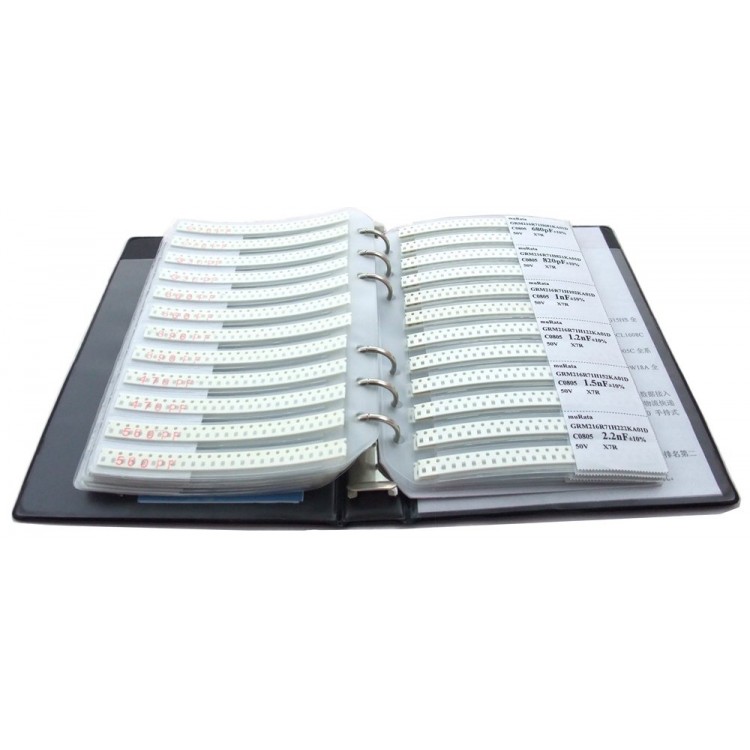

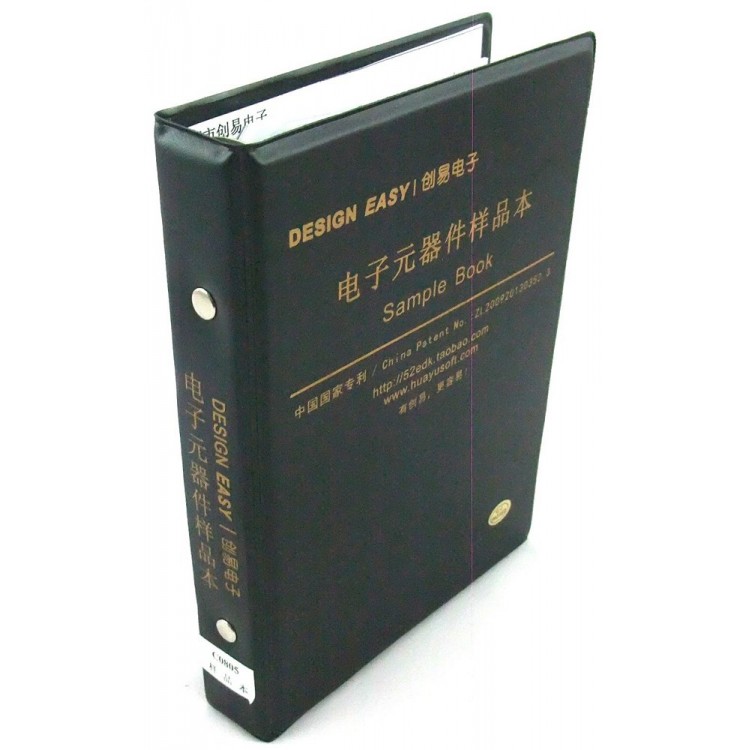

SMD Book C0805 (100437)

Introduction:

A useful book with all SMD capacitor values you might ever need in your lab.
4600 high quality capacitors from the Japanese company Murata will match all your needs.
Perfect for everyone who is making prototypes, electronic projects or small production.

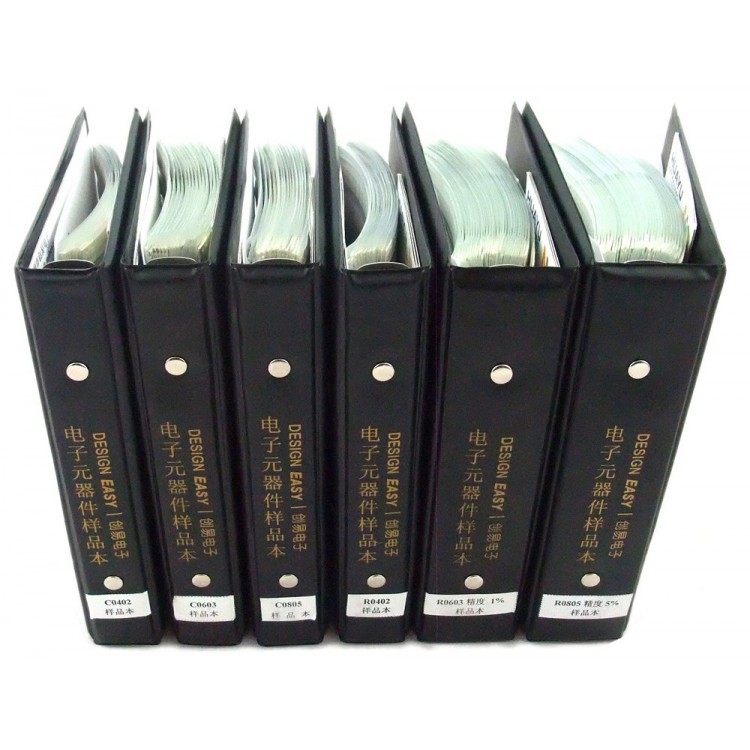

See the related products for other SMD books.

Features:

  • 4600 high quality capacitors
  • Package: 0805 (2.0x1.25mm)
  • Manufacturer: Murata (Japan)
  • Series: GRM21 0805
  • RoHS compliant
  • 92 different values between 0.5pF and 10uF, each 48-50 parts
  • a practical and rugged book for storing and finding exactly the value you need



Values:

No. Capacitance / Votlage / Type Specification
1 0.5pF±0.25pF 50V C0G GRM2165C1HR50CD01D
2 0.75pF±0.25pF 50V C0G GRM2165C1HR75CD01D
3 1pF±0.25pF 50V C0G GRM2165C1H1R0CD01D
4 1.2pF±0.25pF 50V C0G GRM2165C1H1R2CD01D
5 1.5pF±0.25pF 50V C0G GRM2165C1H1R5CD01D
6 1.6pF±0.25pF 50V C0G GRM2165C1H1R6CZ01D
7 1.8pF±0.25pF 50V C0G GRM2165C1H1R8CA01D
8 2pF±0.25pF 50V C0G GRM2165C1H2R0CA01D
9 2.2pF±0.25pF 50V C0G GRM2165C1H2R2CA01D
10 2.4pF±0.25pF 50V C0G GRM2165C1H2R4CD01D
11 2.5pF±0.25pF 50V C0G GRM2165C1H2R5CA01D
12 2.7pF±0.25pF 50V C0G GRM2165C1H2R7CD01D
13 3pF±0.25pF 50V C0G GRM2165C1H3R0CD01D
14 3.3pF±0.25pF 50V C0G GRM2165C1H3R3CD01D
15 3.6pF±0.25pF 50V C0G GRM2165C1H3R6CD01D
16 3.9pF±0.25pF 50V C0G GRM2165C1H3R9CD01D
17 4pF±0.25pF 50V C0G GRM2165C1H4R0CD01D
18 4.3pF±0.25pF 50V C0G GRM2165C1H4R3CD01D
19 4.7pF±0.25pF 50V C0G GRM2165C1H4R7CA01D
20 5pF±0.25pF 50V C0G GRM2165C1H5R0CD01D
21 5.1pF±0.5pF 50V C0G GRM2165C1H5R1DD01D
22 5.6pF±0.5pF 50V C0G GRM2165C1H5R6DD01D
23 6pF±0.5pF 50V C0G GRM2165C1H6R0DD01D
24 6.2pF±0.5pF 50V C0G GRM2165C1H6R2DD01D
25 6.8pF±0.5pF 50V C0G GRM2165C1H6R8DD01D
26 7pF±0.25pF 50V C0G GRM2165C1H7R0CA01D
27 7.5pF±0.5pF 50V C0G GRM2165C1H7R5DZ01D
28 8pF±0.5pF 50V C0G GRM2165C1H8R0DZ01D
29 8.2pF±0.5pF 50V C0G GRM2165C1H8R2DZ01D
30 9pF±0.5pF 50V C0G GRM2165C1H9R0DZ01D
31 10pF±5% 50V C0G GRM2165C1H100JZ01D
32 11pF±5% 50V C0G GRM2165C1H110JZ01D
33 12pF±5% 50V C0G GRM2165C1H120JZ01D
34 13pF±5% 50V C0G GRM2165C1H130JZ01D
35 15pF±5% 50V C0 GRM2165C1H150JZ01D
36 16pF±5% 50V C0G GRM2165C1H160JA01D
37 18pF±5% 50V C0G GRM2165C1H180JZ01D
38 20pF±5% 50V C0G GRM2165C1H200JZ01D
39 22pF±5% 50V C0G GRM2165C1H220JZ01D
40 24pF±5% 50V C0G GRM2165C1H240JZ01D
41 27pF±5% 50V C0G GRM2165C1H270JZ01D
42 30pF±5% 50V C0G GRM2165C1H300JZ01D
43 33pF±5% 50V C0G GRM2165C1H330JZ01D
44 36pF±5% 50V C0G GRM2165C1H360JZ01D
45 39pF±5% 50V C0G GRM2165C1H390JZ01D
46 43pF±5% 50V C0G GRM2165C1H430JZ01D
47 47pF±5% 50V C0G GRM2165C1H470JZ01D
48 51pF±5% 50V C0G GRM2165C1H510JZ01D
49 56pF±5% 50V C0G GRM2165C1H560JZ01D
50 62pF±5% 50V C0G GRM2165C1H620JZ01D
51 68pF±5% 50V C0G GRM2165C1H680JZ01D
52 75pF±5% 50V C0G GRM2165C1H750JA01D
53 82pF±5% 50V C0G GRM2165C1H820JZ01D
54 91pF±5% 50V C0G GRM2165C1H910JZ01D
55 100pF±5% 50V C0G GRM2165C1H101JA01D
56 120pF±5% 50V C0G GRM2165C1H121JA01D
57 150pF±5% 50V C0G GRM2165C1H151JA01D
58 180pF±5% 50V C0G GRM2165C1H181JA01D
59 200pF±5% 50V C0G GRM2165C1H201JA01D
60 220pF±10% 50V X7R GRM216R71H221KA01D
61 270pF±10% 50V X7R GRM216R71H271KA01D
62 330pF±10% 50V X7R GRM216R71H331KA01D
63 360pF±10% 50V X7R GRM216R71H361KA01D
64 390pF±10% 50V X7R GRM216R71H391KA01D
65 470pF±10% 50V X7R GRM216R71H471KA01D
66 560pF±10% 50V X7R GRM216R71H561KA01D
67 680pF±10% 50V X7R GRM216R71H681KA01D
68 820pF±10% 50V X7R GRM216R71H821KA01D
69 1nF±10% 50V X7R GRM216R71H102KA01D
70 1.2nF±10% 50V X7R GRM216R71H122KA01D
71 1.5nF±10% 50V X7R GRM216R71H152KA01D
72 2.2nF±10% 50V X7R GRM216R71H222KA01D
73 3.3nF±10% 50V X7R GRM216R71H332KA01D
74 4.7nF±10% 50V X7R GRM216R71H472KA01D
75 6.8nF±10% 50V X7R GRM216R71H682KA01D
76 8.2nF±10% 50V X7R GRM216R71H822KA01D
77 10nF±10% 50V X7R GRM216R71H103KA01D
78 15nF±10% 50V X7R GRM216R71H153KA01D
79 22nF±10% 25V X7R GRM216R71E223KA01D
80 33nF±10% 25V X7R GRM216R71E333KA01D
81 47nF±10% 25V X7R GRM219R71E473KA01D
82 68nF±10% 25V X7R GRM219R71E683KA01D
83 82nF±10% 25V X7R GRM219R71E823KA01D
84 100nF±10% 25V X7R GRM21BR71E104KA01L
85 220nF±10% 25V X7R GRM21BR71E224KA01L
86 330nF±10% 25V X7R GRM21BR71E334KA01L
87 470nF±10% 25V X7R GRM21BR71E474KA88L
88 680nF±10% 25V X7R GRM21BR71E684KA01L
89 1uF±10% 10V X7R GRM21BR71A105KA01L
90 2.2uF±10% 16V X5R GRM21BR61C225KA88L
91 4.7uF±10% 10V X5R GRM21BR61A475KA73L
92 10uF±10% 10V X5R GRM21BR61A106KE19L



Package Content:

Quantity Content
1 DIN A5 Book with
4600 0805 capacitors, 48-50 from each of the 92 values above



Links & Downloads:

(none)

Write a review

Note: HTML is not translated!
    Bad           Good

SMD Book C0805 (100437)

  • Brand: Murata
  • Product Code: 100437
  • Availability: In Stock
  • $49.00
  • 5+$46.00
  • 20+$43.00
  • 50+$40.00

Tags: components, accessories
