Mifare RFID Card and Reader Kit RC522 (10100049)

Product description:

The MF522-AN module the original Philips MFRC522 chip design circuit card reader, easy to use, low cost, and applies to the user equipment development, the reader and the development of advanced applications, the need for the user RF card terminal design/production. This module can be directly loaded into the various reader molds. Utilizes a voltage of 3.3V, through the SPI interface simple few lines directly with any user CPU motherboard connected communication can ensure that the module is stable and reliable work, distance card reader;

Specifications feature:

  • Working current: 13 - 26mA/ 3.3V DC
  • Idle current: 10-13mA/3.3V DC
  • Sleep current: <80uA
  • Peak current: <30mA
  • Operating frequency: 13.56MHz
  • In support of the card type: Mifare1 S50, Mifare1 S70, Mifare UltraLight, Mifare Pro, Mifare Desfire
  • Operating temperature: -20 - +80 degrees Celsius
  • Environment temperature: -40 - +85 degrees Celsius
  • Relative humidity: 5% - 95%
  • SPI parameter module interface
  • Data transfer rate: 10Mbit/s

Package content:

  • 1x RFID-RC522 module
  • 1x The Standard S50 Blank Card
  • 1x S50 Special-shaped Card(as shown by the key ring shape)
  • 1xStraight Row of Pin
  • 1xCurved Row of Pin

Datasheet:

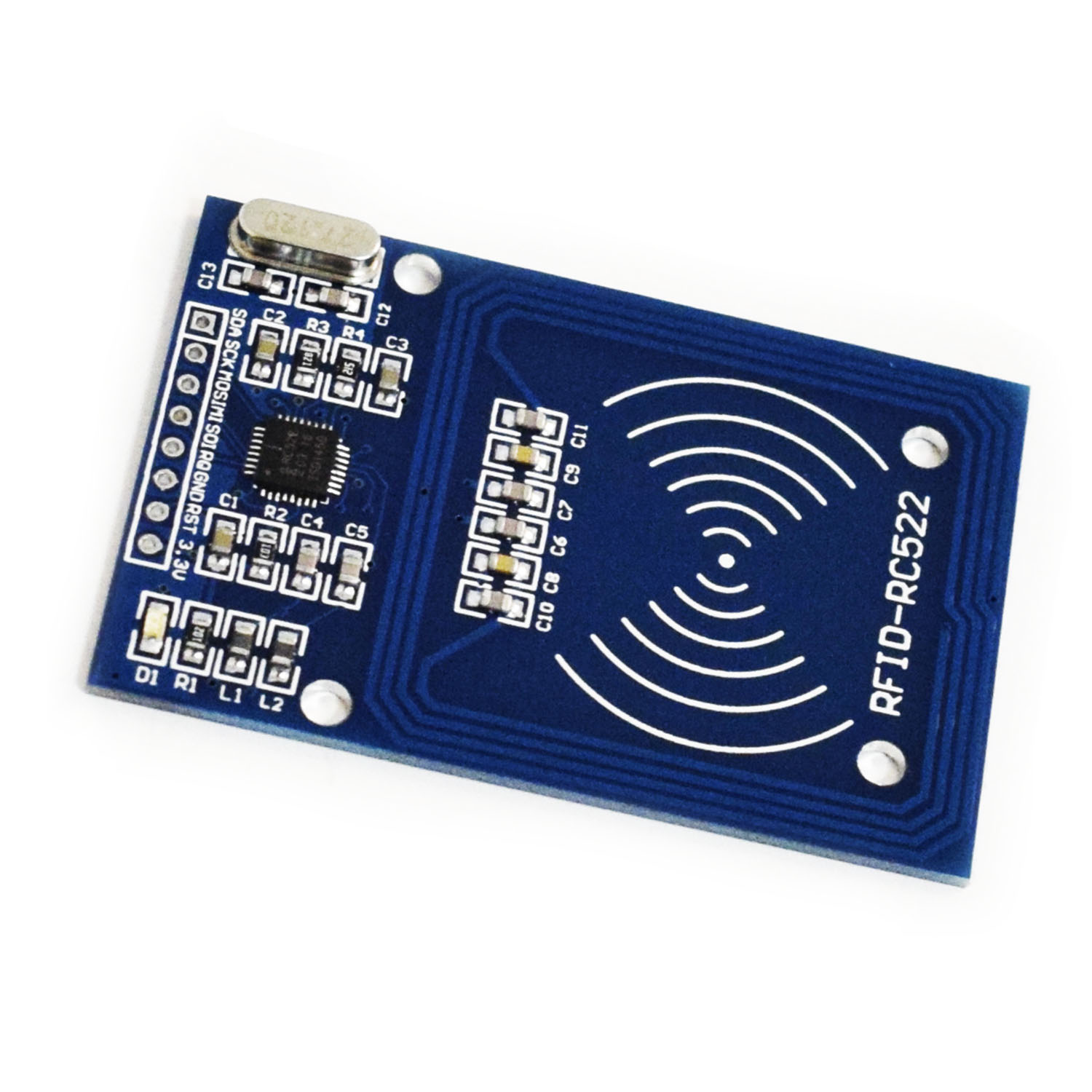

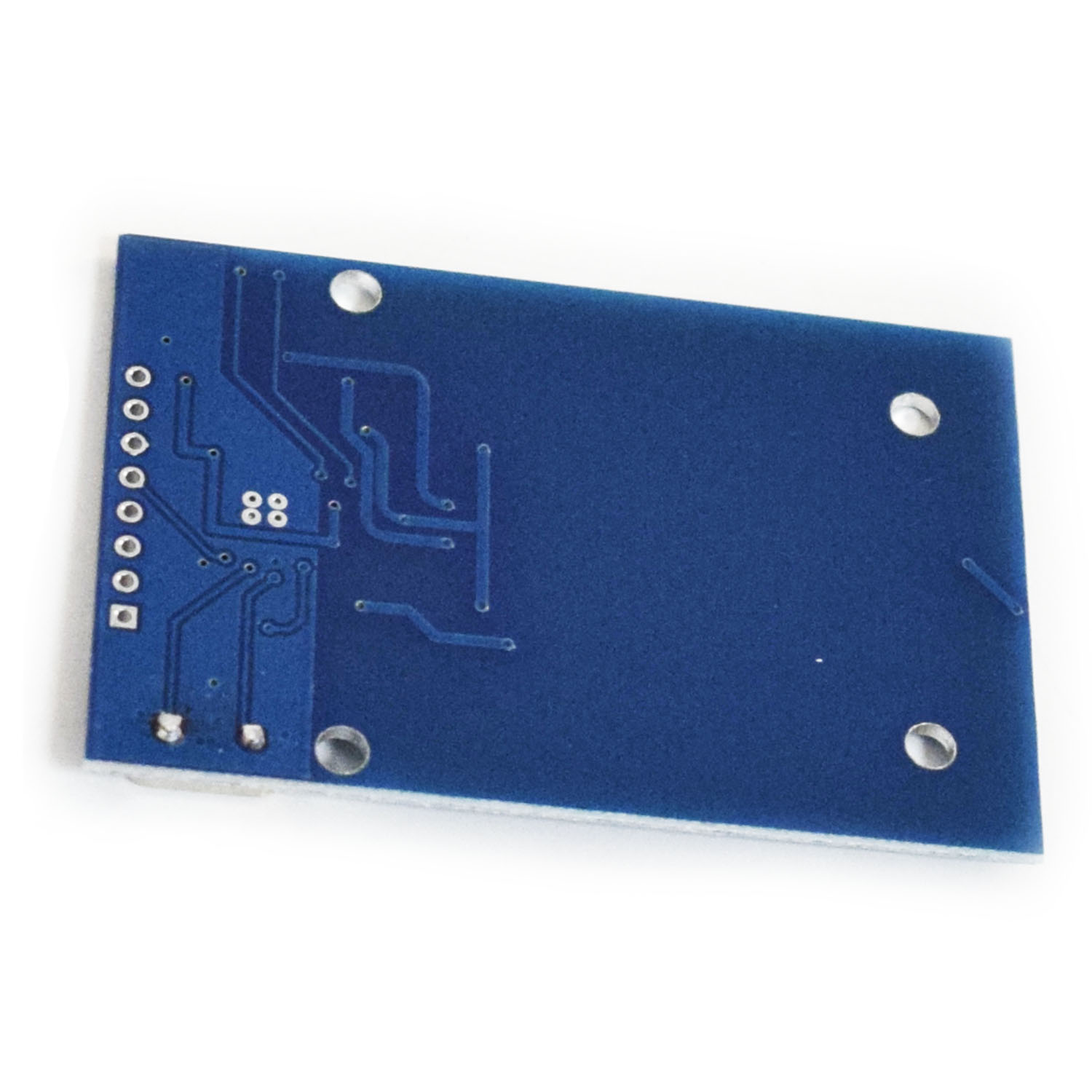

Product pictures:
