EL Panel (Light Red, 10x10cm) (101205)
A big sister to our EL tape, the EL panel is a similar item that comes in a 10 cm square format.  You’ll notice when working with it that it shares some of the same features as the EL tape:  flexibility, portability, and a beautiful soft glow.  It can be used as backlight for an illuminated device, or a platform for paper-cutting artwork.  Post it on a flat surface or wrap it around a curved surface.  Use it in a project as a lighting element or attach it to a shirt.  The options are amazing.

You need an inverter to drive the EL light, to control it, please pick up an EL Shield.

Features
  • No heat loss
  • Great backlight material
  • High efficiency (97%)
  • Does not emit UV light
  • Soft light that is not harsh on the eyes
  • Waterproof, except the connecter
  • The higher voltage EL USB inverter is recommended because it produces a stronger light
  • Able to be cut into other shape

Specifications
  • Dimension:  10 cm x 10 cm
  • Thickness:  0.4 mm - 1.0 mm
  • Operating Voltage:  100 V~ 220 V  Optimum :  120 V
  • Operating Frequency:  50 Hz~ 5000 Hz   Optimum:  1500 Hz - 2000 Hz
  • Static Capacitance:  6 nf/m (20 ° C, the RH <80%)
  • Brightness:   30 cd/m2 ~ 126 cd/m2 (at 120 V, 200 Hz ~ 2000 Hz)
  • Power:  108 mw m ~ 1032 mw/m (at 120 V, 200 Hz ~ 2000 Hz)
  • Life:  approximately 8000 hours
  • Operating Temperature/Humidity:  -10 °C ~ + 60 °C/RH < 90%
  • Storage Temperature/Humidity:  -10 °C ~ + 60 °C/RH < 65%

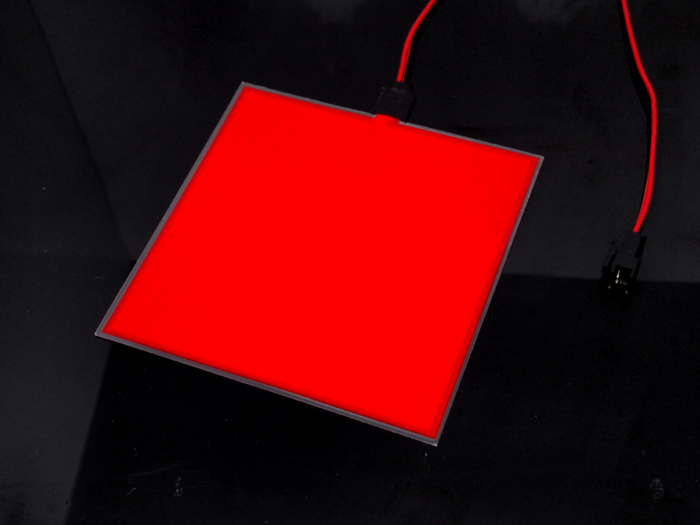

Product picture

Write a review

Note: HTML is not translated!
    Bad           Good

EL Panel (Light Red, 10x10cm) (101205)

  • Product Code: 101205
  • Availability: In Stock
  • $7.99
  • 10+$6.99
  • 30+$5.99
  • 50+$5.00
