Description

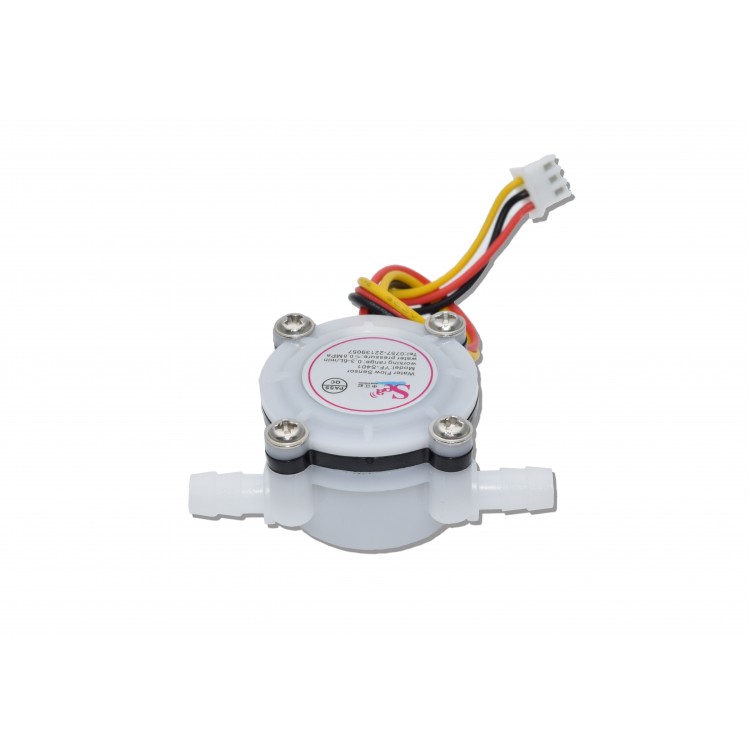

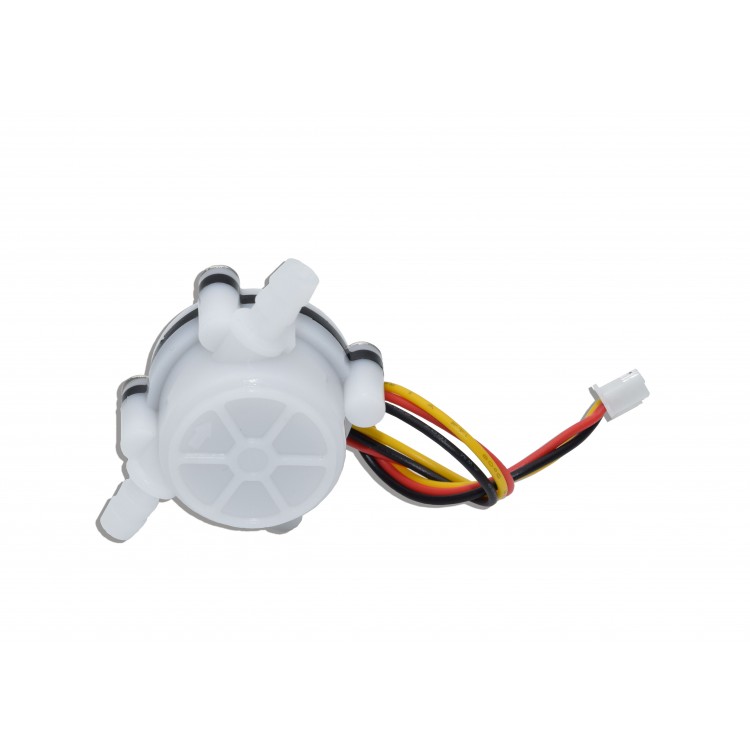

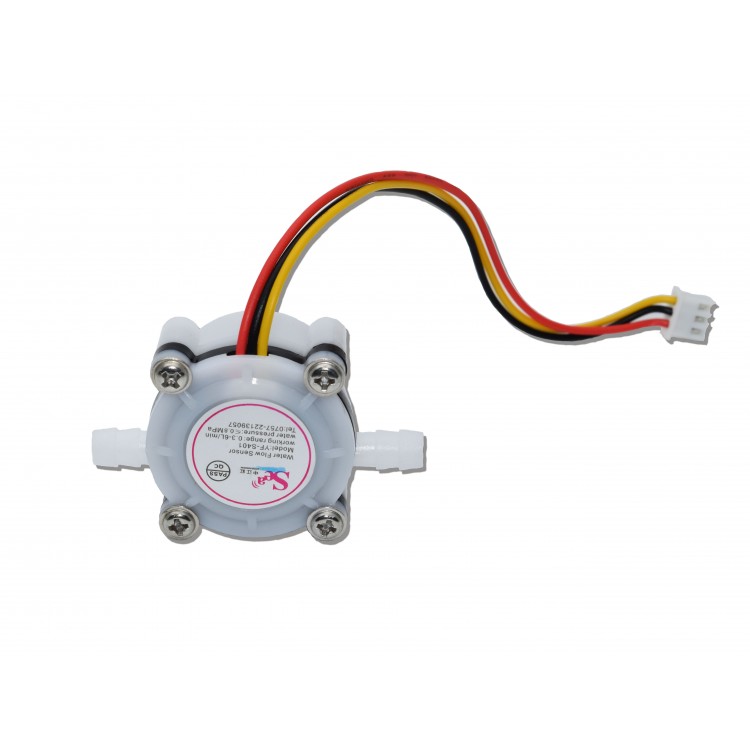

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

Specifications
  • Mini. Working Voltage: DC 3.5V
  • Max. Working Current: 15mA (DC 5V)
  • Working Voltage: DC 5V to 18V
  • Flow Rate Range: 0.3~6L/min
  • Load Capacity: ≤10mA (DC 5V)
  • Operating Temperature: ≤80℃
  • Liquid Temperature: ≤120℃
  • Operating Humidity: 35% to 90%RH
  • Water Pressure: ≤0.8MPa
  • Storage Temperature: -25 to + 80℃
  • Storage Humidity: 25% to 95%RH

Write a review

Note: HTML is not translated!
    Bad           Good

Water Flow Sensor

  • Product Code: 101772
  • Availability: In Stock
  • $4.59
  • 10+$3.99
  • 50+$3.49
  • 100+$3.00
