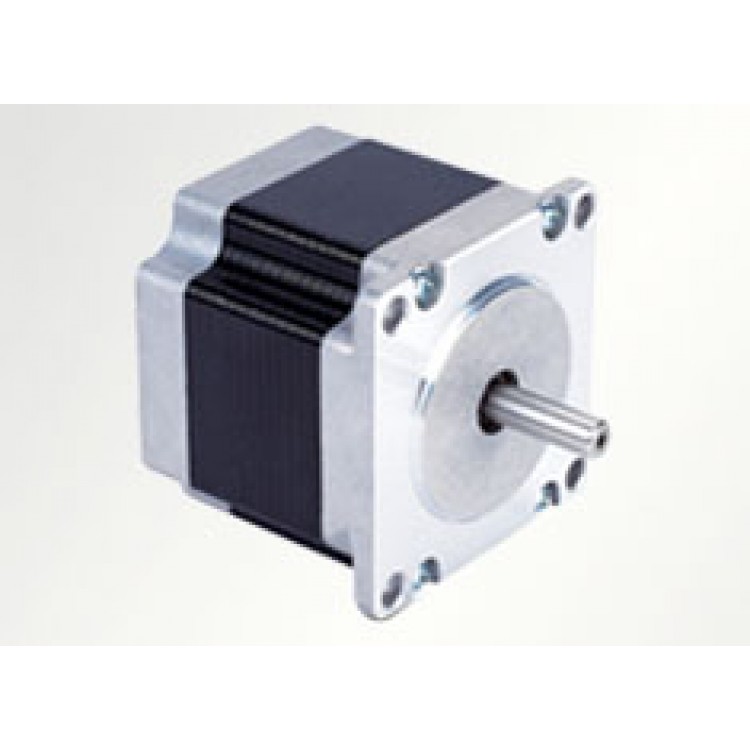

Stepper Motor NEMA 23 57x57mm (100384)

Introduction:

A medium size bi-polar NEMA 23 (42x42mm)  stepper motor perfect for medium size robots, 3D-printers, scanners and other applications which require a stepper motor for precise rotational or linear motion. Works perfect for many big 3D-printers, laser-cutter, engraving, pick-and-place CNC milling machines.

Features:

  • high precision
  • high torque
  • durable
  • medium size


Details:

Model
(ID)
Step
Angle
(deg)
Rated
Current
(A)
Rated
Voltage
(V)
Phase
Resistance
(Ohm)
Phase
Inductance
(mH)
Holding
Torque
(N*cm)
Detent
Torque
(N*cm)
Rotor
Inertia
(g*cm²)
Motor
Length
L (mm)
Motor
Weight
(g)
Axis
Diameter
(mm)
Lead
Wires
(No.)
D57L41S1.8 1.8 2 2.4 1.2 2.5 55 2.5 150 41 470 6.35 4
D57L64S1.8 1.8 2.5 3.75 1.5 4.5 150 5 380 64 850 6.35 4
D57L112S1.8 1.8 4.2 3.78 0.9 3.8 280 12 800 112 1400 6.35 4
  • Stepping Accuracy: ± 5%
  • Resistance Accuracy: ± 10%
  • Inductance Accuracy: ± 20%
  • Temperature Rise: 80°C Max.
  • Ambient Temperature: -20°C ... +50°C
  • Insulation Resistance: 100MOhm min. 500V DC
  • Withstand: 500V AC, 1 Minute

Note: You can find other stepper motors here, stepper motor drivers here and axis connectors/adapters here. If you do not know how to choose your stepper motor please read the guide here.


Dimensions:



(all dimensions in mm)



Wiring:



Package Content:

Quantity Content
1 Stepper Motor (as selected on top)
