GPS Module for Raspberry Pi (101761)

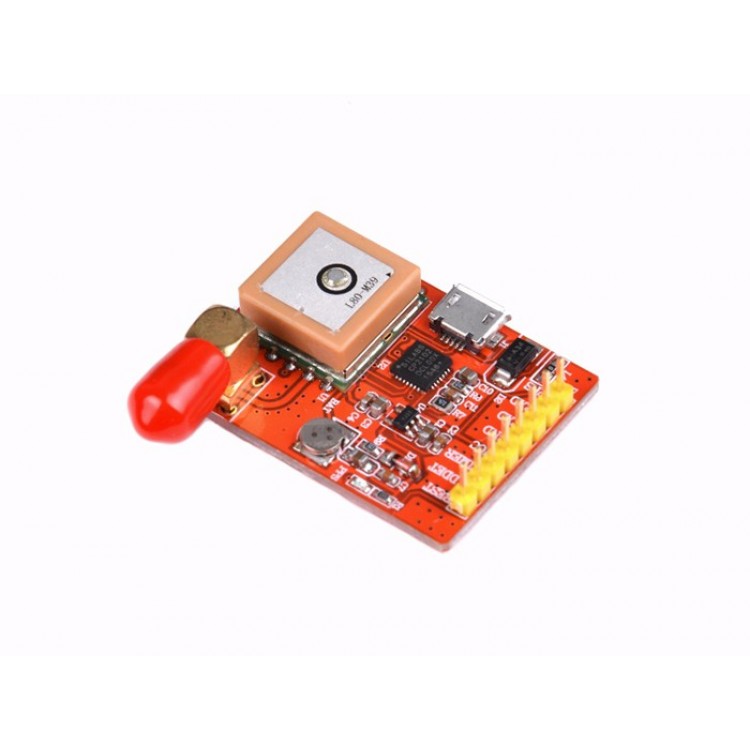

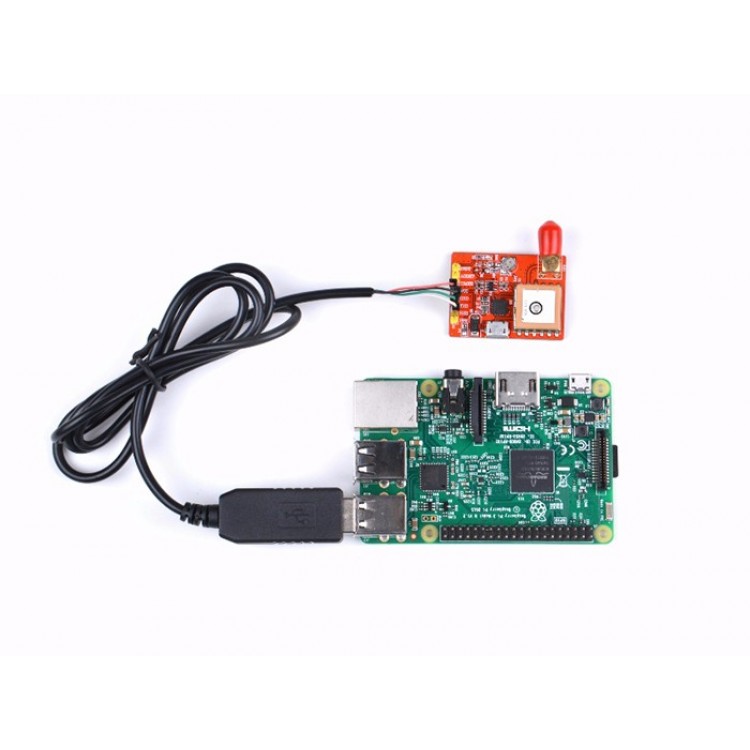

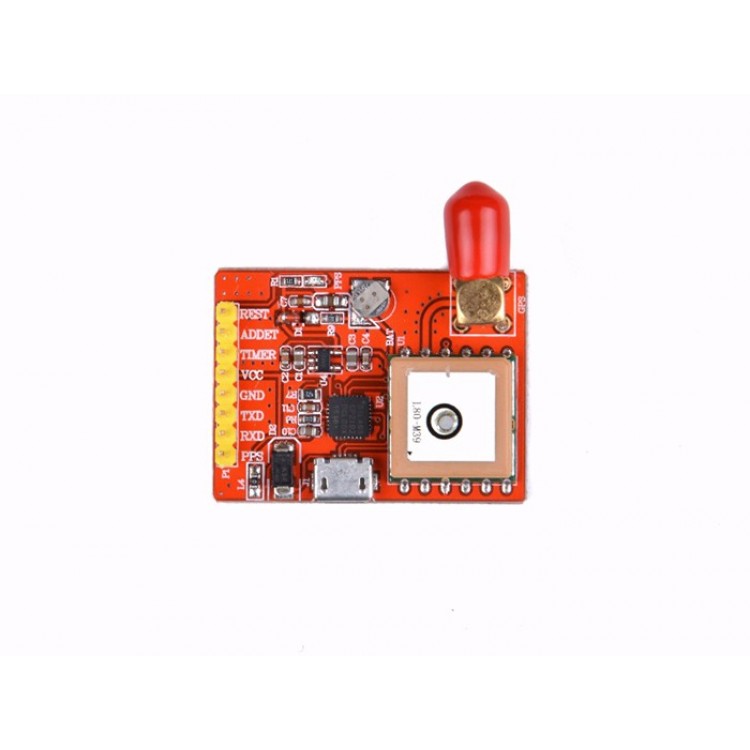

This is a Raspberry Pi compatible GPS module, support Raspberry Pi A, B, A+, B+, Zero, 2, 3. This module has CP2102 USB chip, which allows the module communicate with Raspberry Pi via serial port or USB. L80 GPS chip contains Patch antenna (15.0 x 15.0 x 4.0mm), low power consuming and faster locating.

  • -165 dBm sensitivity, 1Hz (Default), up to 5Hz, 66 channels
  • At least 100mA current draw to startup
  • PPS output can be used to coordinate time with satellite
  • Fast locating
  • Fix status LED blinks when module get the coordinates
  • EASY™, advanced AGPS technology without external memory
  • Support time service application which can be achieved by PPS sync NMEA feature
  • Built-in LNA for better sensitivity
  • RTC battery-compatible
  • 1x8 male headers, USB micro Interface
  • CP2102 Serial Converter USB 2.0 To TTL UART

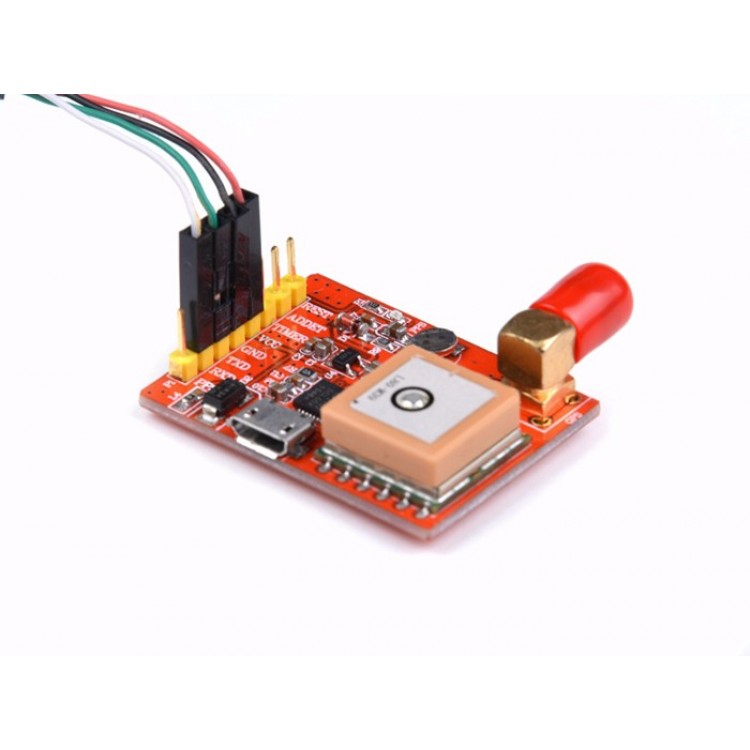

UART wire:

GPS Module
Wire Color
Red wire
Black wire
Green wire
White wire

Packing List:

  • 1 x USB-Port-GPS(L80-39) module
  • 1 x USB data wire
