Have you ever tried to charge your robot, Arudino or other product wireless? If not then you should definitely try this out. This device is a small, easy to use and cost-effective wireless charger which can be used in a wide range of products to add a wireless charging function. Build the transmitter module inside a base station and the receiver inside your product and you will get immediately wirelessly transmitted 5V and up to 600mA at the receiver's side which can be used for charging and/or powering your device.
Perfect for small robots, medical devices and other products which needs wireless charging to be waterproofed or become more convenient.
- easy to install
- small size
- precise output voltage
- Input Voltage Transmitter: 12VDC (13.5VDC max)
- Output Voltage Receiver: 5VDC (regulated)
- Output Current Receiver: 500mA (600mA max)
- Distance between Transmitter and Receiver: 1-20mm
- Dimesions: 17x12x4mm (Tranmitter), 24x10x3mm (Receiver)
- Coil Dimensions: Radius 38mm, Height <2mm
- Coil Inductance: 30µH
Coil Isolated: yes

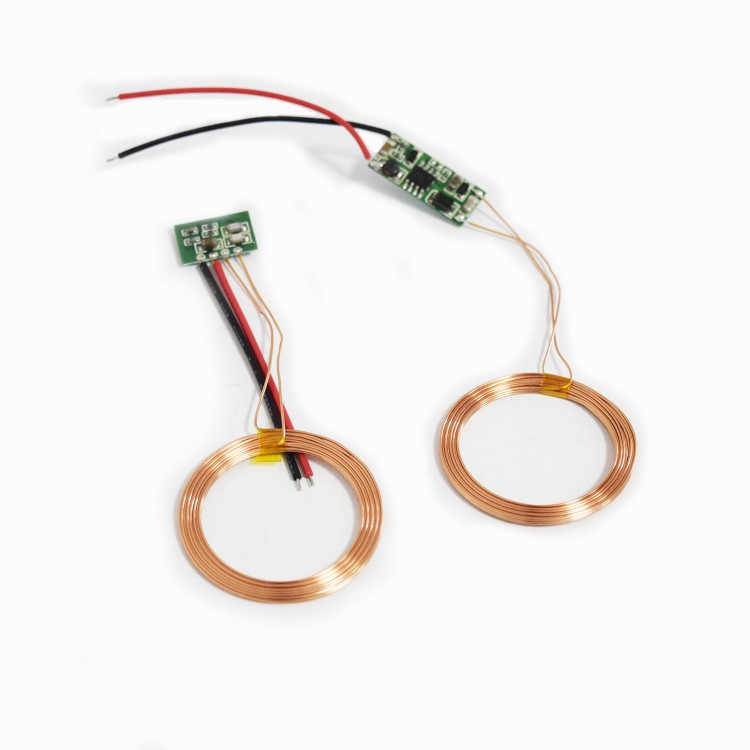

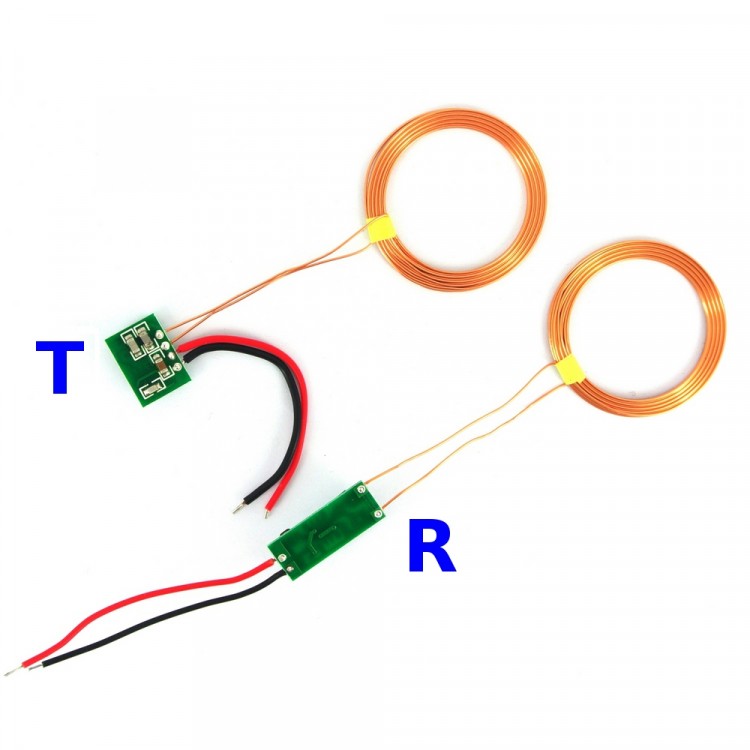

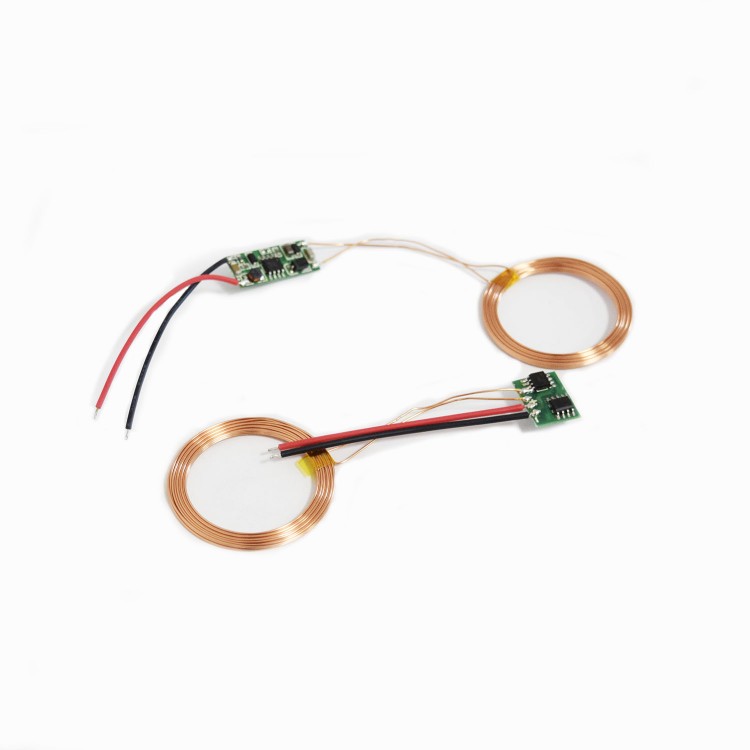

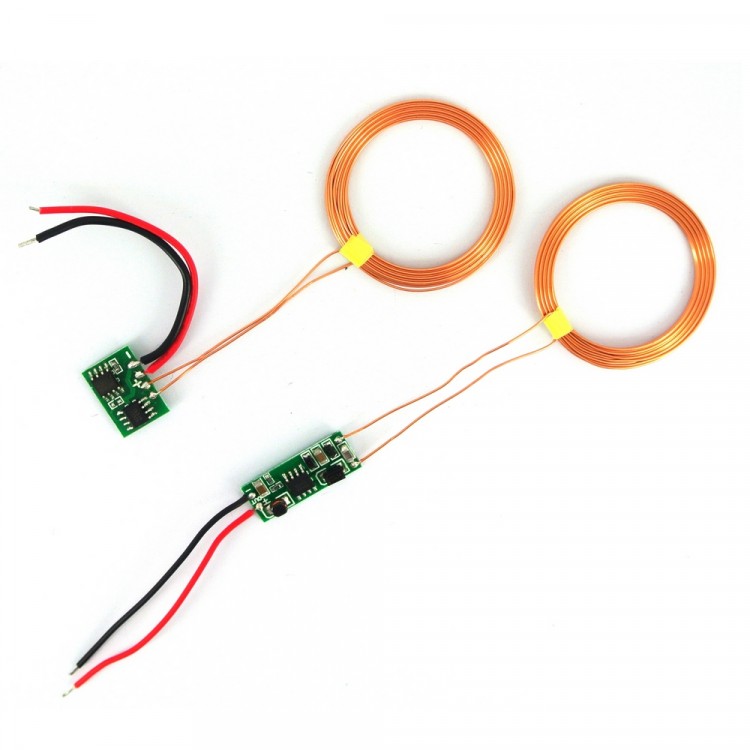

- 1x Pair of Receiver and Transmitter
