Wireless Charger Set (5V,1.5A)

Description:

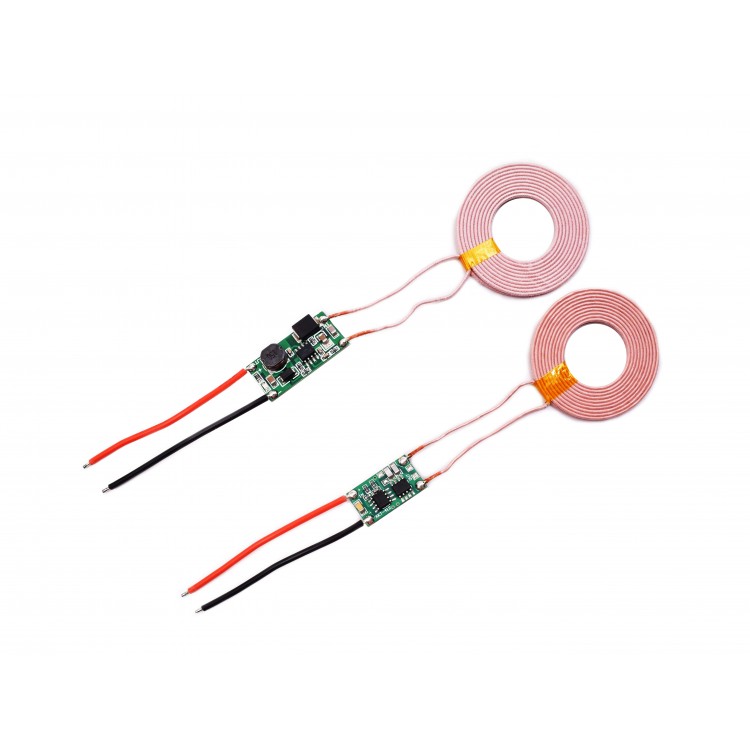

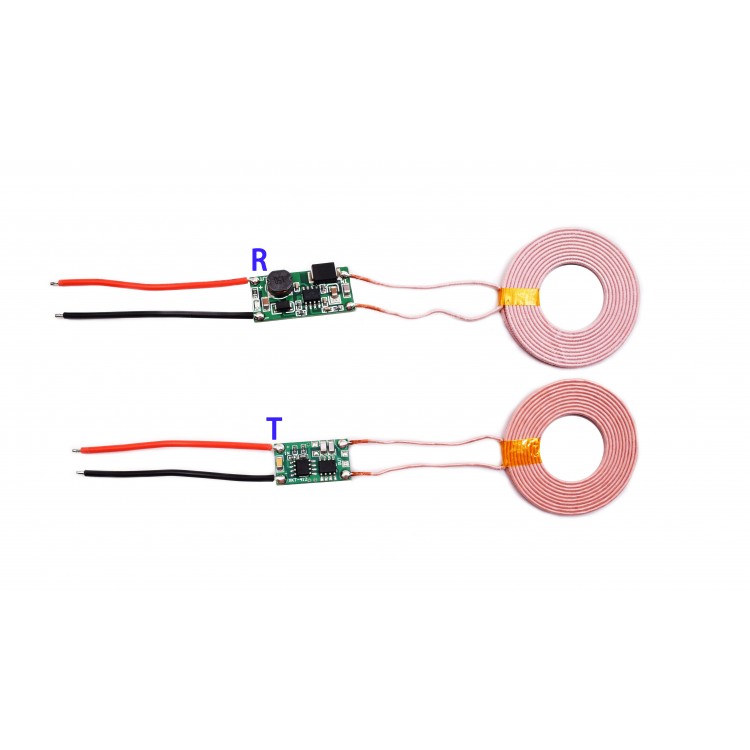

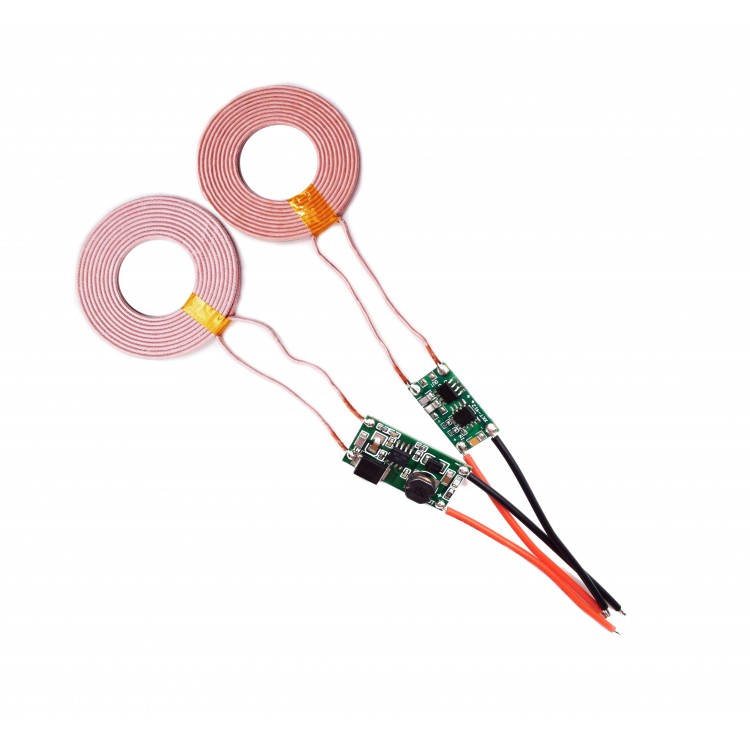

This wireless charger set comes with a transmitter and a receiver. The transmitter module can accept 9-12V input, the maximum current load is 1.1A. The receiver part can output up to 2A 5V or 0.7A. 12V power. it is a suitable wire charging solution for smartphones, gamepads, fish tanks, MP4, and other projects.

Note: The recommended stable output power is 1.5A 5V.


Specifications:

  • Input Voltage: 9-12V
  • Maximum Load Current: 1.1A
  • Receiver Maximum Output Voltage and Current: 5V/2A,12V/700mA
  • Wireless Transmitting Distance: 3-6mm
  • Transmitter and Receiver Coil Dimension: Outer Diameter is 43mm, thickness 2.3mm
  • Transmitter PCB dimension: 29.7 x 15.1 mm
  • Receiver PCB dimension: 22.1 x 13.1 mm
  • Transmitter module total weight: 10.3g
  • Receiver module total weight: 11.9g

Write a review

Note: HTML is not translated!
    Bad           Good

Wireless Charger Set (5V,1.5A)

  • Product Code: 102085
  • Availability: In Stock
  • $9.99
  • 10+$8.99
  • 30+$8.50
  • 100+$8.00
