Description

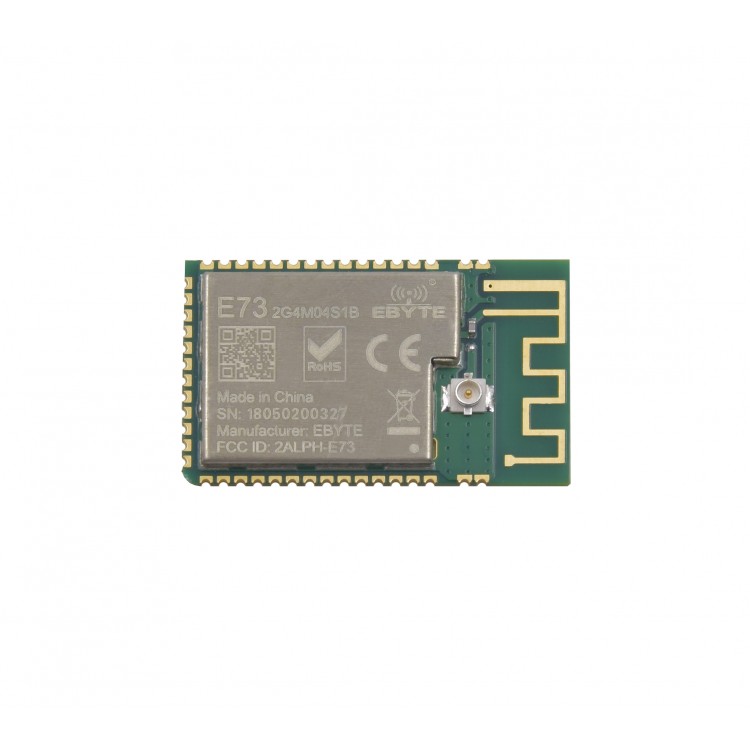

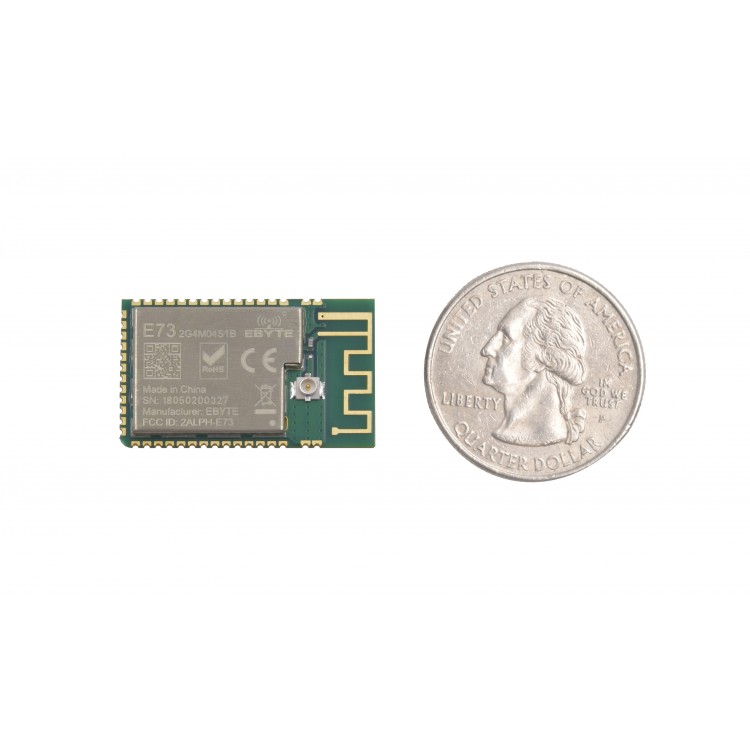

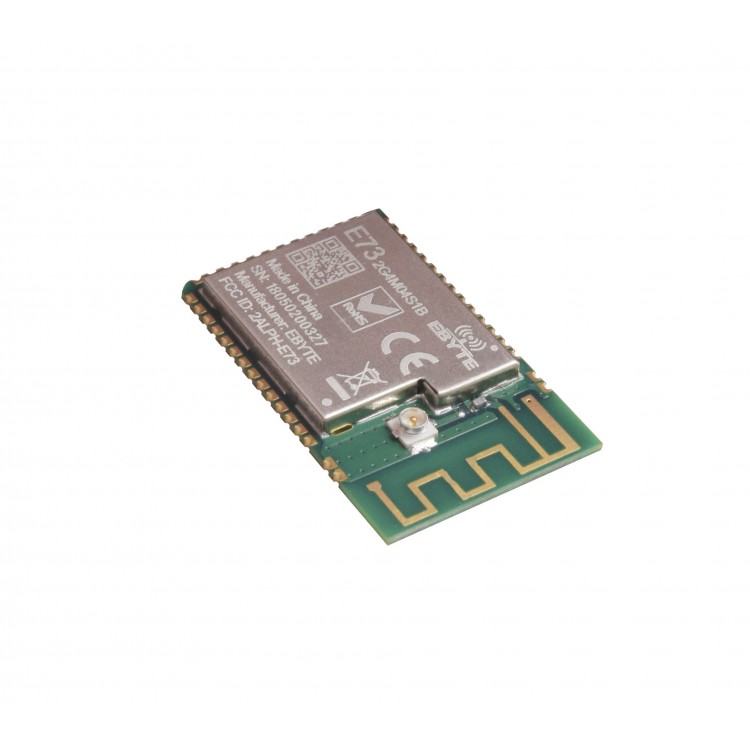

This nrf52832 module is a small size and high quality BLE module. It has well designed PCB antenna and an IPX antenna connector on board. The module breakout almost all the pins of nrf52832, very easy to embed into any project.

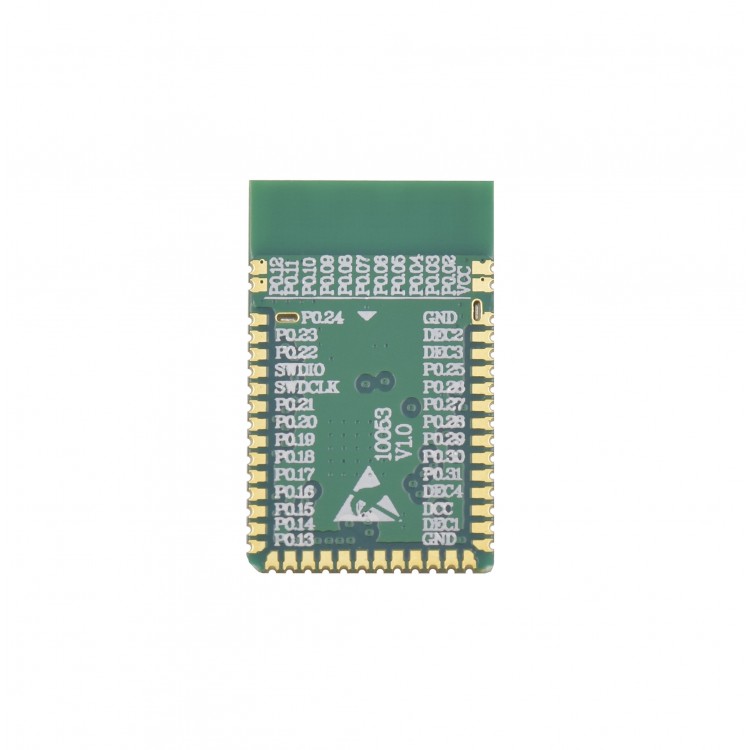

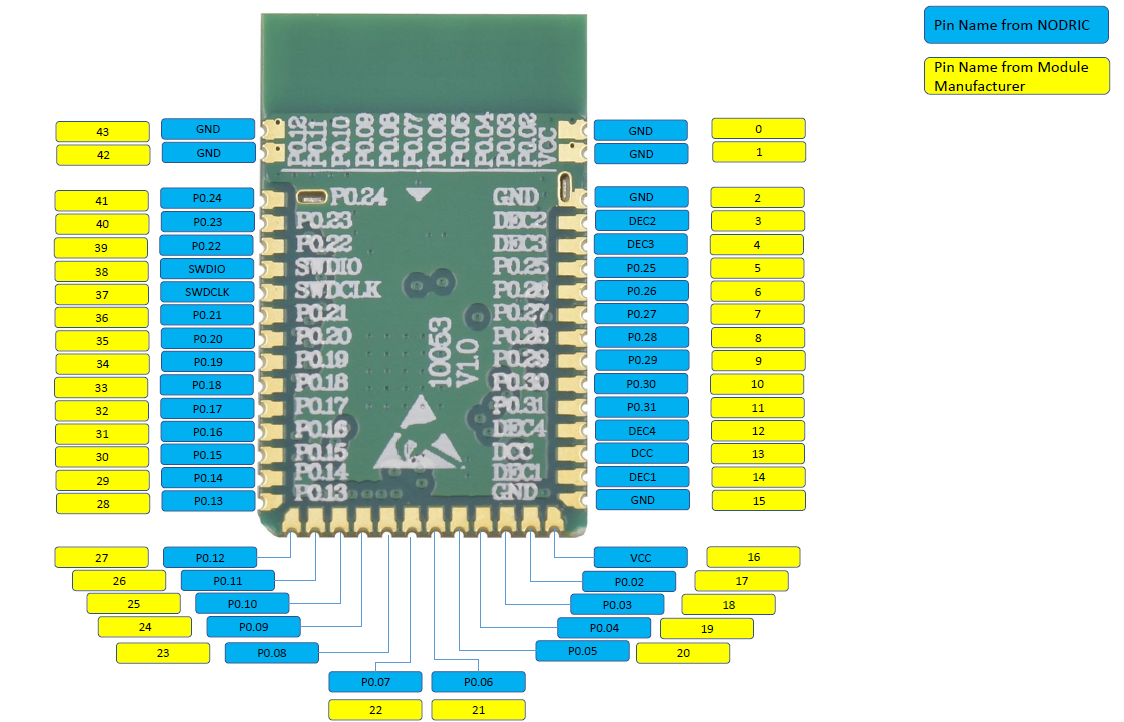

Nrf52832 BLE module Pin map, download PDF version here./nrf52832_module_pin_map.png)
Specifications
- Module number: E73-2G4M04S1B
- Manufacturer: EBYTE
- Bluetooth IC: nrf52832
- Operation Voltage: 1.8 - 3.6 V, typical 3.3V
- Transmitter Current: 13 - 15mA
- Transmitting Power: 3.8 - 4.3dBm
- Receiver Current: 4 - 6mA
- No-load Current: 1 - 3uA
- Recommend Frequency: 2379 - 2496MHz
- Module dimension: 17.5 x 28.7 mm
- Weight: 1.8g

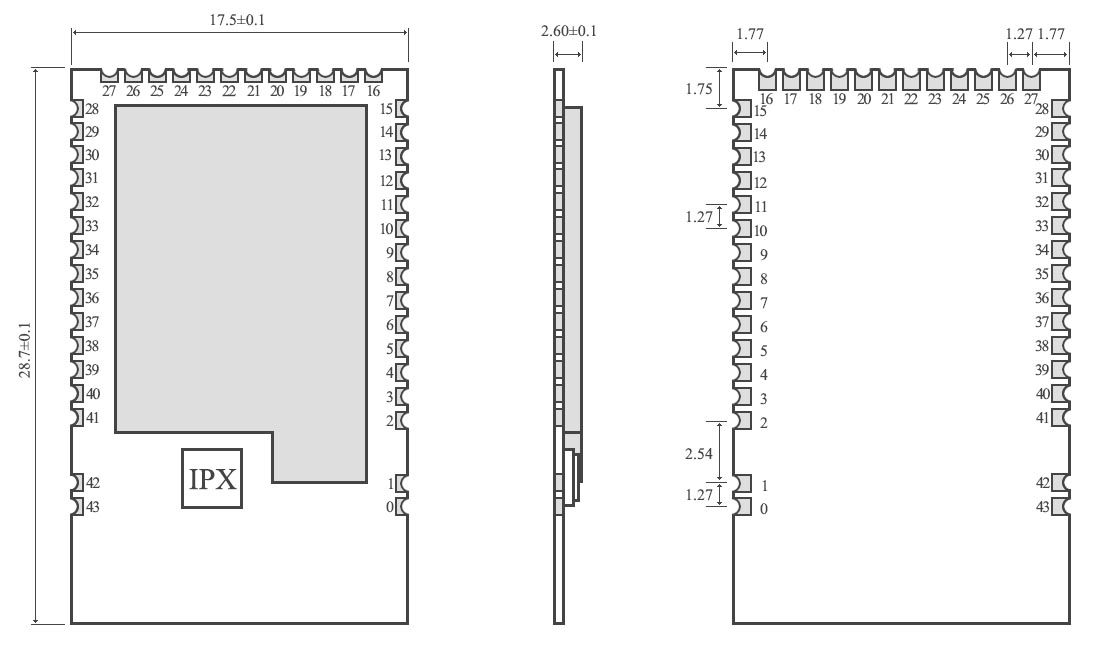

Dimension:/nrf52832_module_dimension.png)

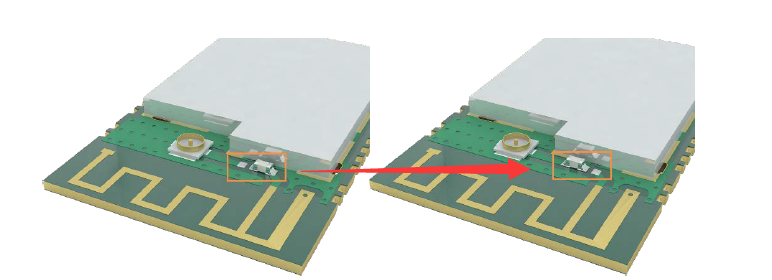

Changing antenna note: The module comes out with inductor soldered, which means it uses PCB antenna, change it to the other side if you use IPX antenna. /nrf52832_module_change_antenna.png)
Links:
- nrf52832 Datasheet
- nrf52832 official link

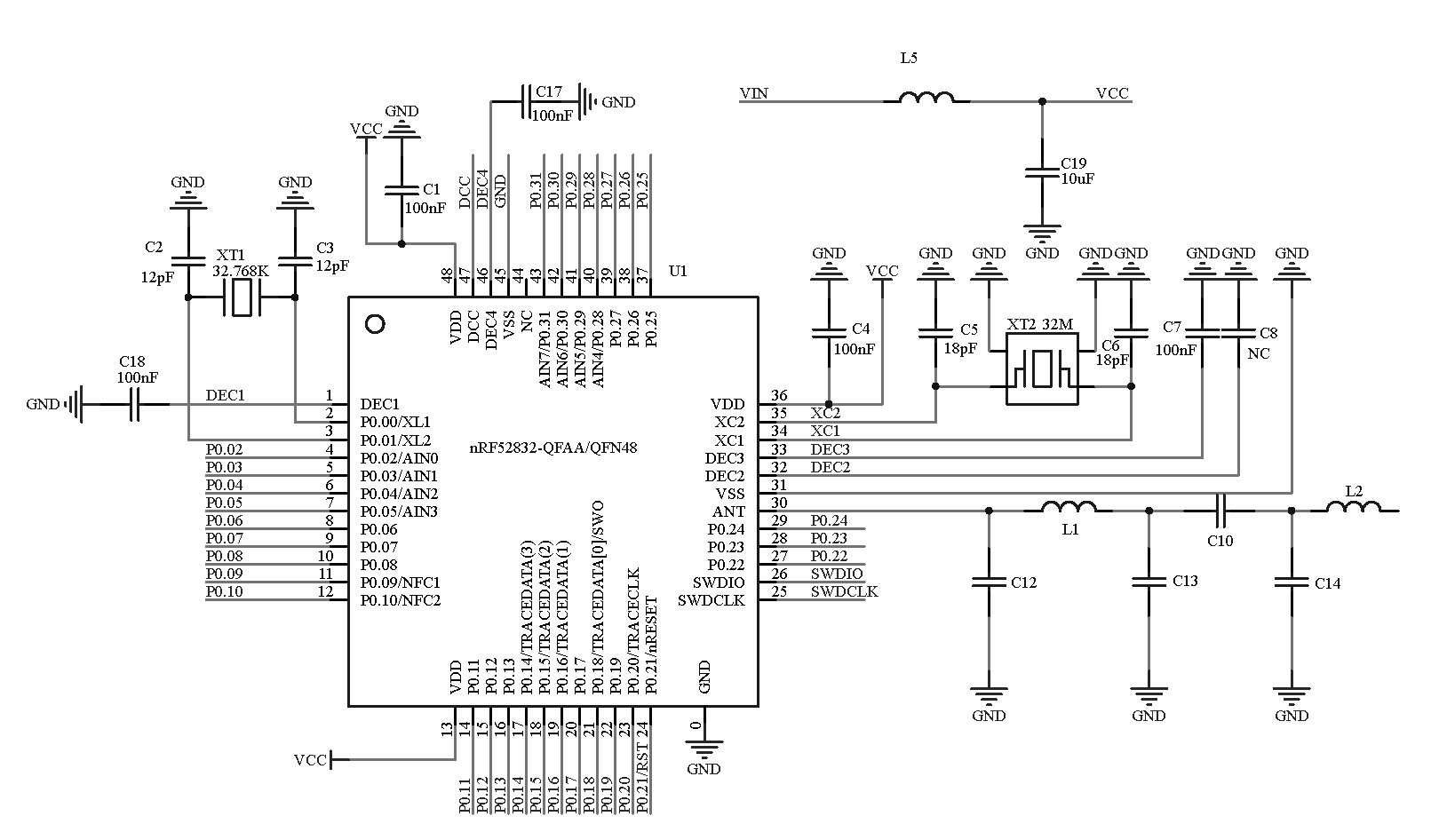

- nrf52832 module Schematic

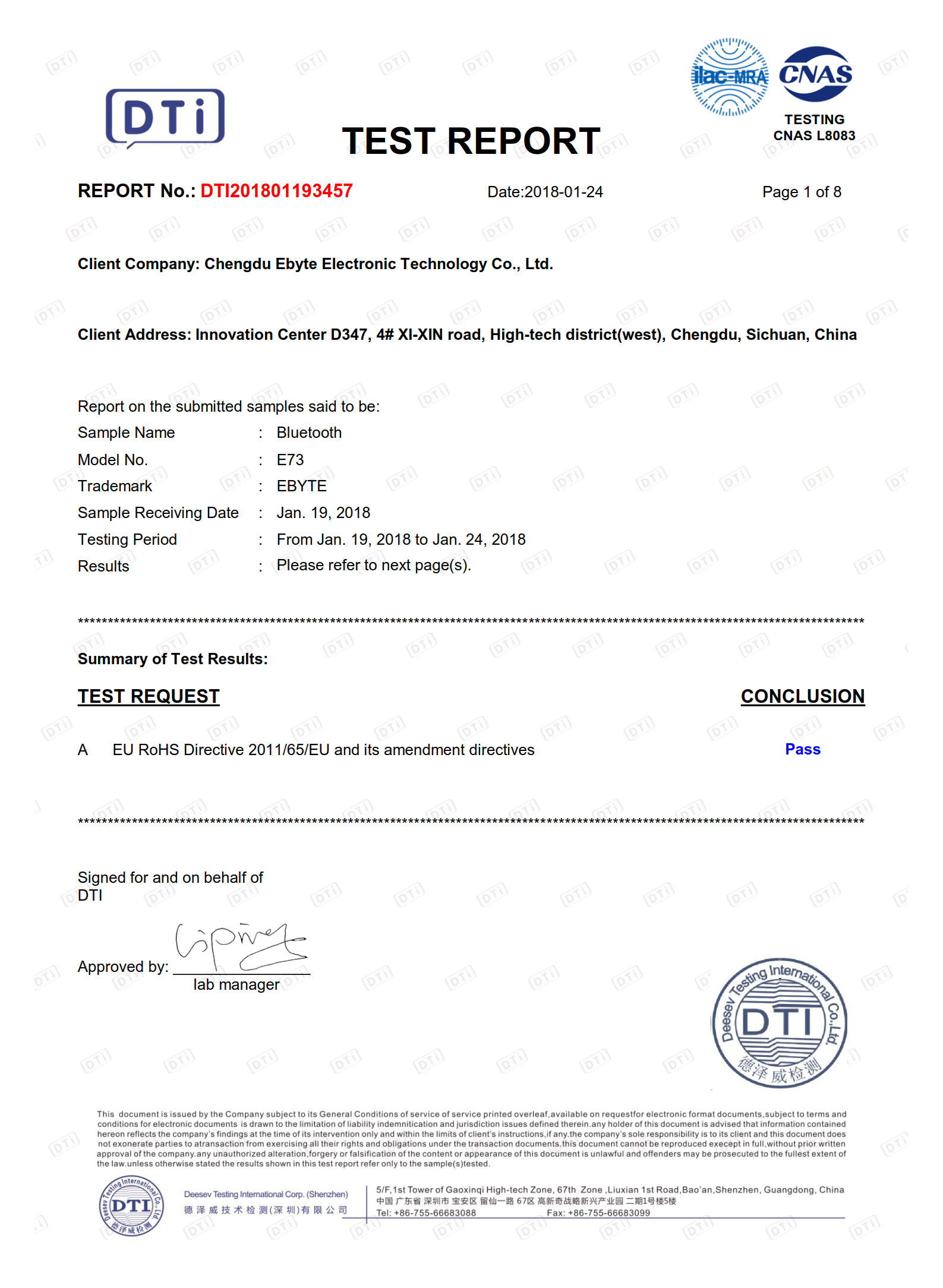

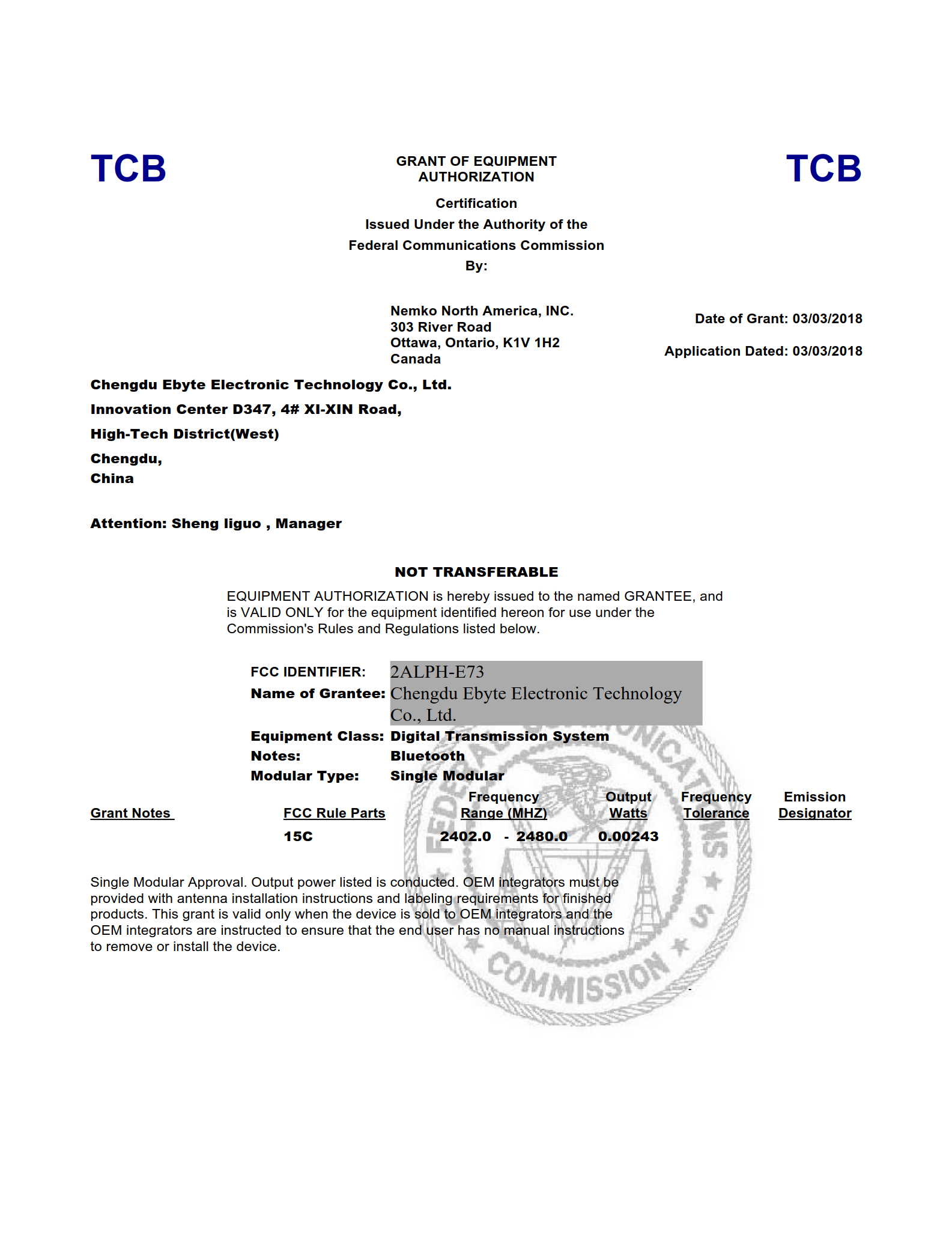

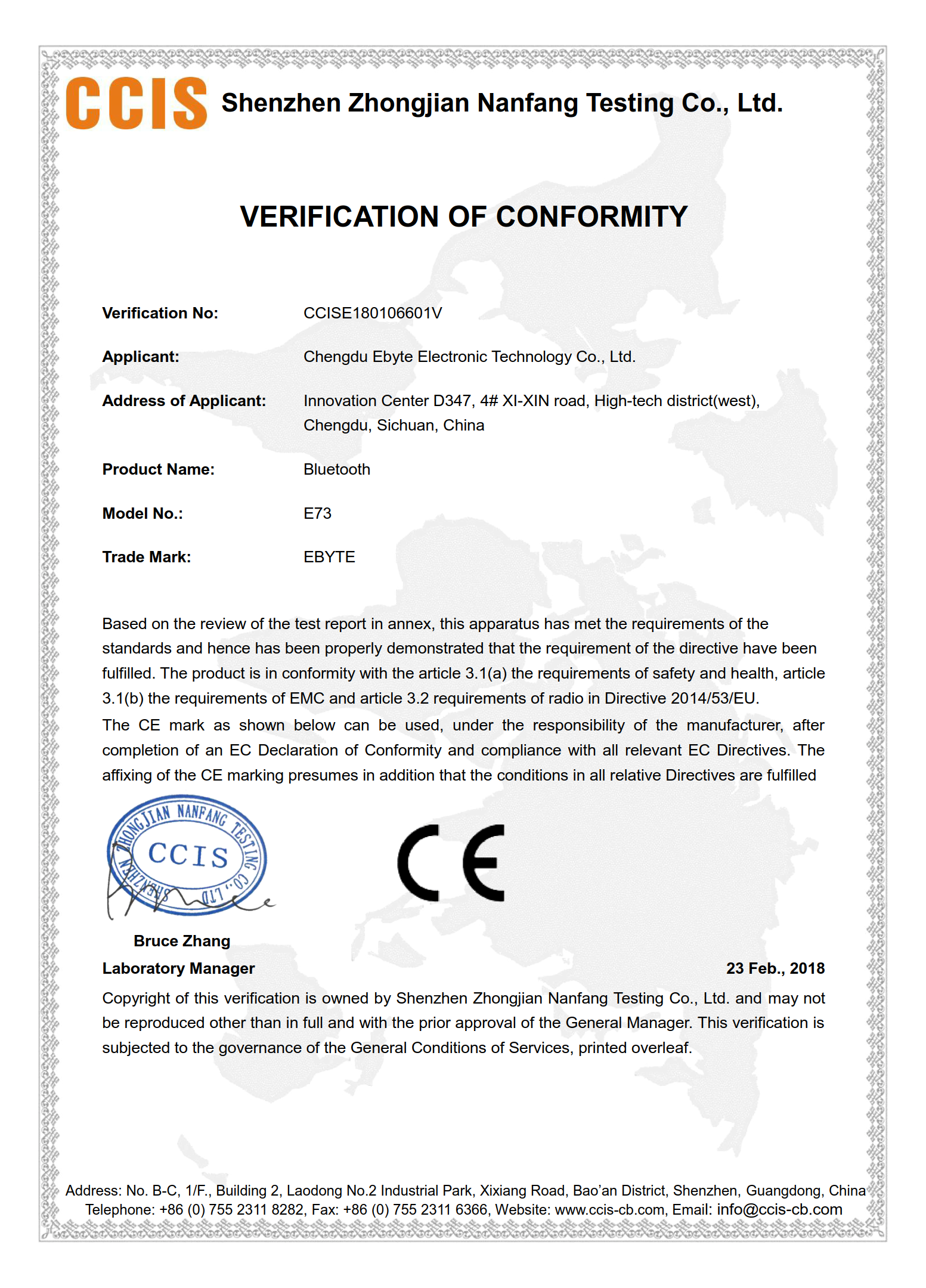

- Certifications:
CE
ROHS
FCC - Recommend Soldering Condition
