Description


RTL8710 Wifi Module is a low-cost wireless IoT platform based on Realtek RTL8710 ARM Cortex-M3 Processor 166MHz. It is tiny but could be proved to be interesting alternative with its stronger MCU, 1MB ROM, 512KB RAM, built-in 1MB Flash and faster Wifi performance.

RTL8710 Wifi Module uses FreeRTOS as the go-to operating system and can be debugged and programmed using RealTek’s RTL8710 SDK over a micro USB connection. It packs up to 17 GPIO, up to 3 I2C, up to 2 PCM, 4 PWM and two high-speed UART and one low-speed. For Wi-Fi, it has a speed of up to 150 Mbps over an 802.11n connection and a top speed of 54 Mbps over 802.11g.


Specifications

  • 802.11 b/g/n, CMOS MAC
  • Built-in 32 bit CPU, application processor
  • Built-in TCP/IP protocol
  • WiFi 2.4 GHz, support WPA/WPA2
  • Support STA/AP/STA+AP
  • Support Smart Config (Include Android and iOS devices)
  • SPI, UART, I2C, I2S, GPIO
  • Awaken in 2 m, connect and delivery data
  • 802.11b + 17 dBm output power
Packing List
  • RTL8710 WiFi Module x1

Write a review

Note: HTML is not translated!
    Bad           Good

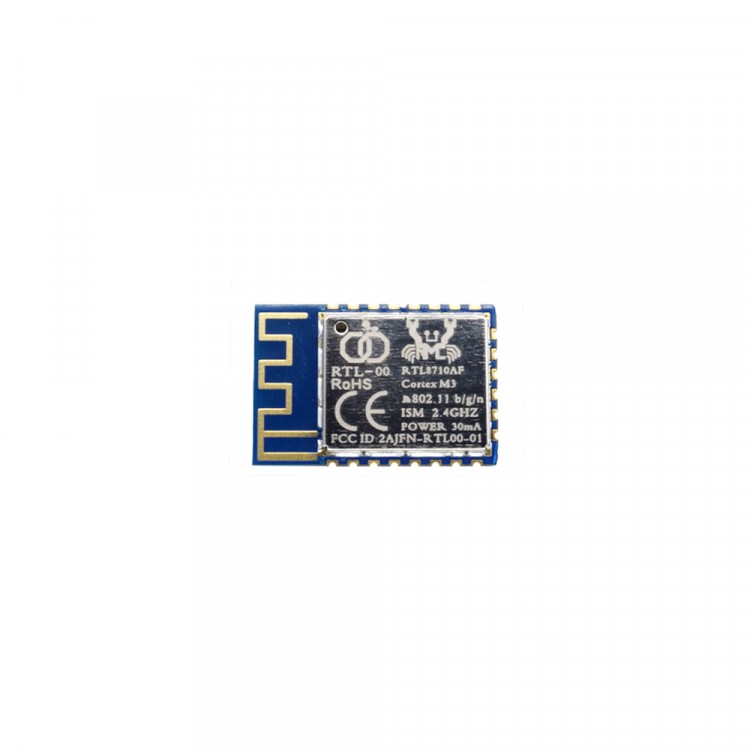

WiFi Module RTL8710AF

  • Product Code: 101797
  • Availability: In Stock
  • $4.49
  • 10+$4.20
  • 30+$3.90
  • 100+$3.50
