The Zio DC-DC is an adjustable voltage booster that can take a 3.7v to 10v input and boost any higher voltage between 5v and 12.5v.

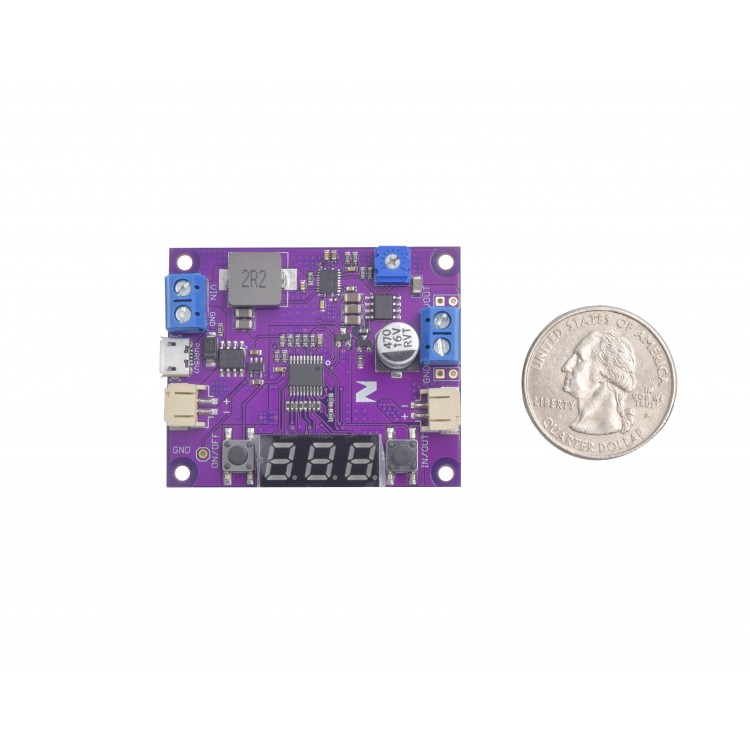

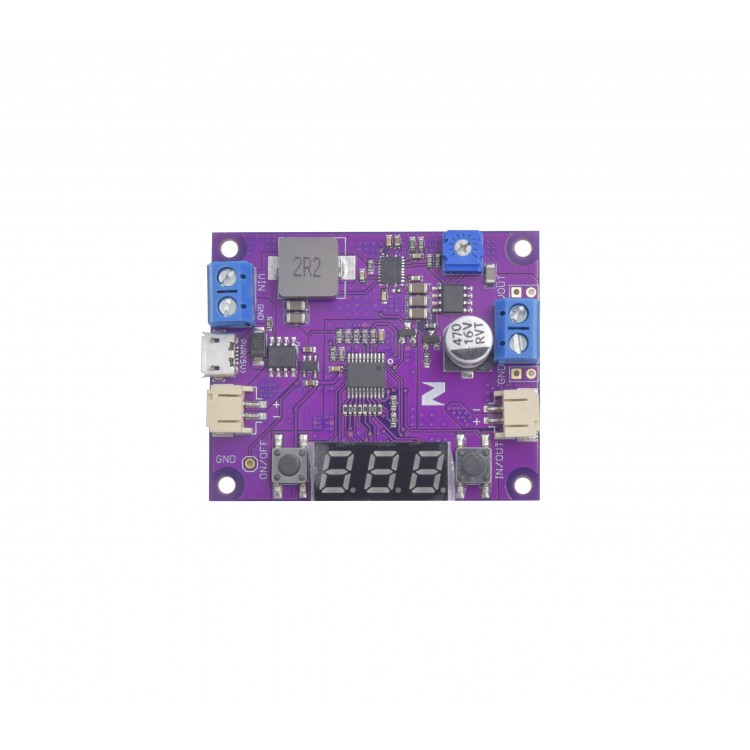

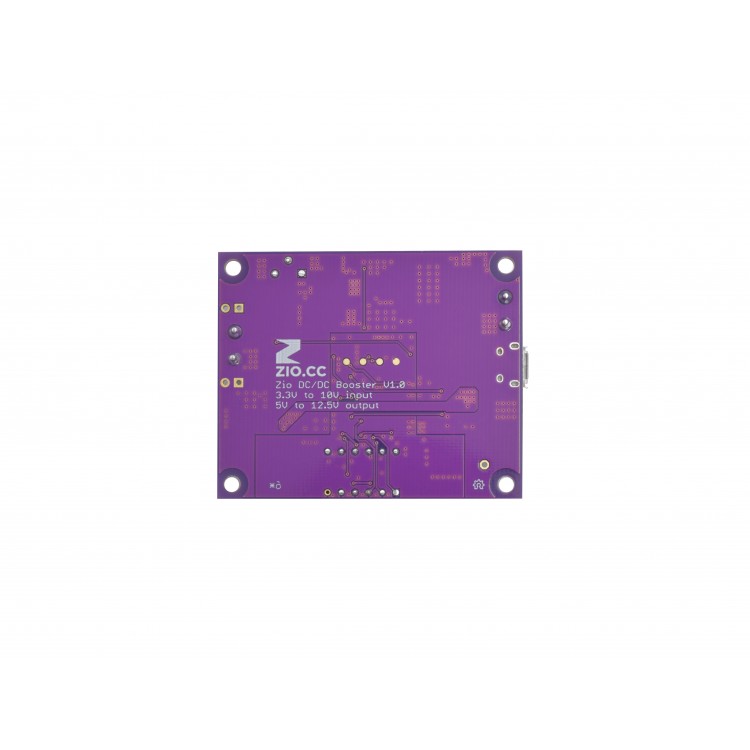

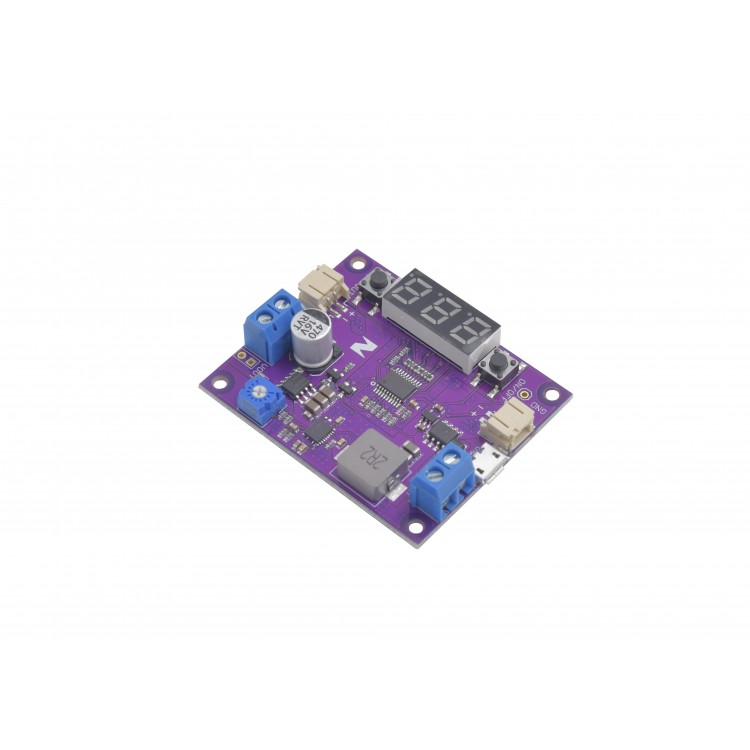

The board features four connectors (one set of screw terminals, two JST PH connectors, and a micro-USB connector) on the input bus, and a set of screw terminals and PTH pads for the output.
Output voltage is adjusted using a potentiometer that can be adjusted with a Phillips or 2mm flathead screwdriver. The 24-segment (3 seven-segment digits and three decimal indicators) display can be toggled using a momentary switch to show the input voltage or output voltage, and a second momentary switch toggles the output on and off.
Note: This board can only boost, and doesn’t have the ability to regulate the input to lower voltage.
Specifications:
- Booster IC: TPS61088
- Input: 3.7v to 10v
- Output: 5v to 12.5v
- Dimension: 46.8x 56.7mm
- Weight: 20.7g
