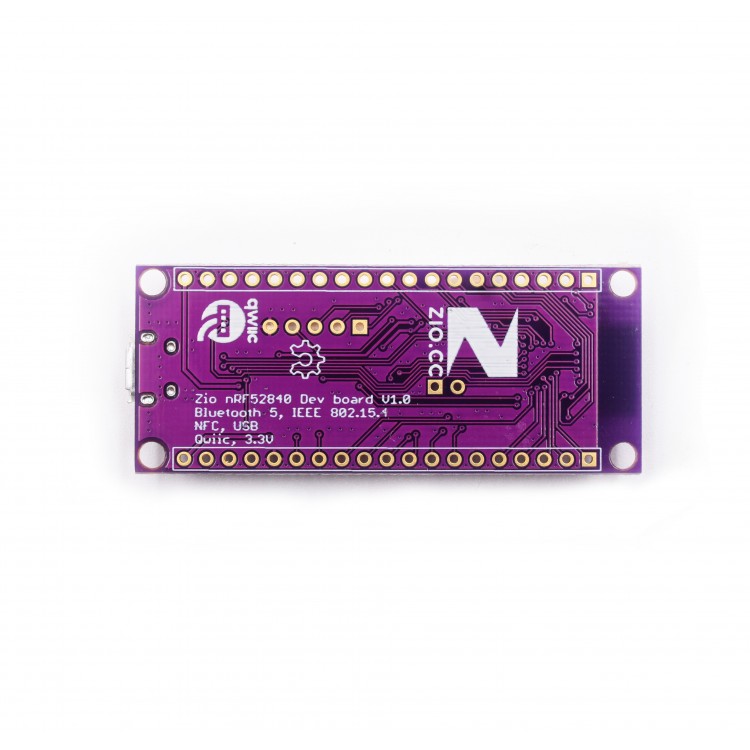

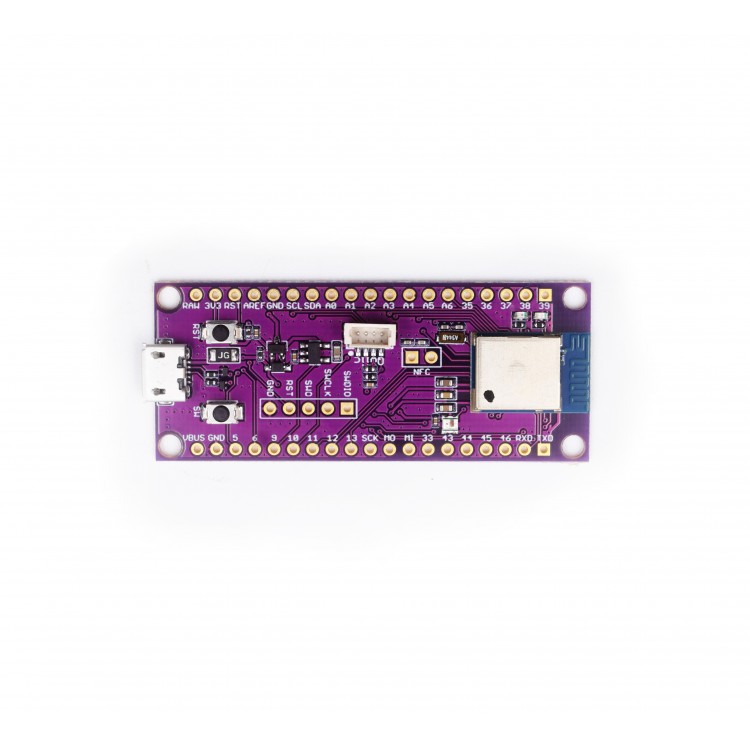

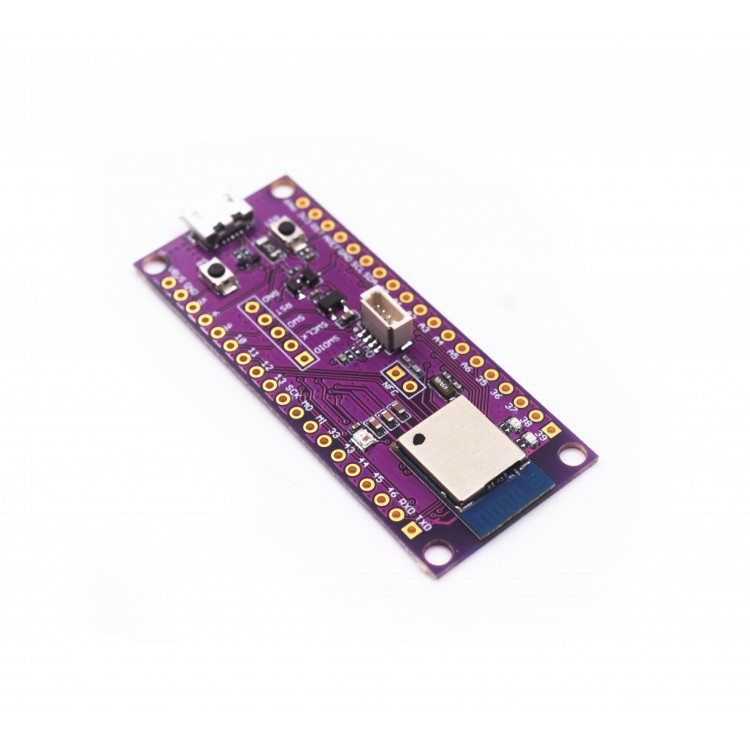

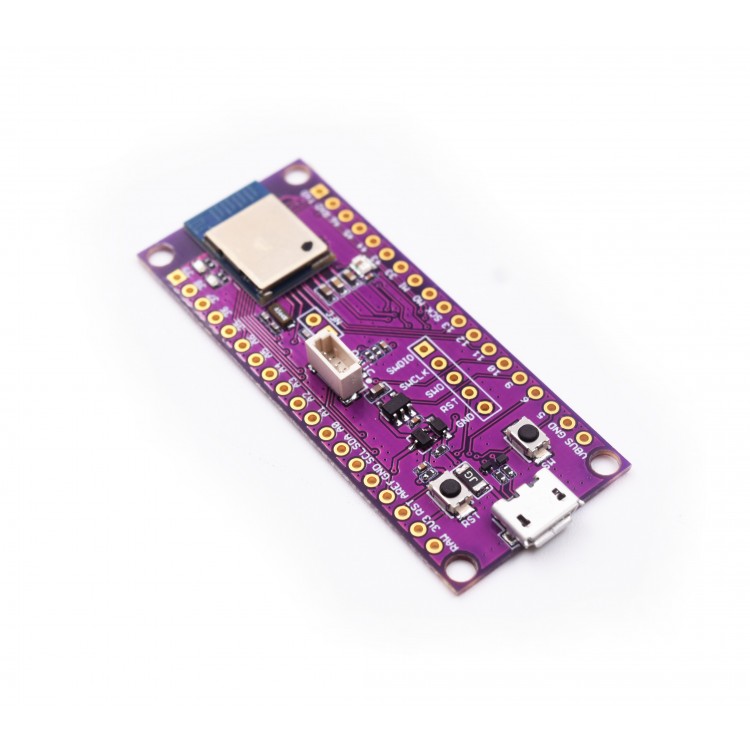

Zio Qwiic nrf52840 Dev Board (101968)


This is a development and breakout board based on nRF52840 SoC - a powerful combination of ARM Cortex-M4 CPU and 2.4GHz Bluetooth radio. With the nRF52840 at the heart of your project, you’ll be presented with a seemingly endless list of project-possibilities in an incredibly small package.

This board breaks out most of the nRF52840 module’s pins, including GPIO, UART, SPI, I2C, NFC, etc.. With the Micro USB connector, you can easily program and supply power to it. We’ve flashed Adafruit’s nrf52 bootloader, an Arduino core for our nRF board, so you can interface with the arduino IDE.

Additionally, we put a Qwiic connector on the board, so you can easily use our Qwiic modules with this development board. And there is a full-color addressable LED WS2812-2020 connected to Pin8. We also break out the NFC pins for NFC testing purpose.

It also support programming with CircuitPython, check sparkfun’s tutorial here.

You can find most of the technical specifications details from the nRF52840 module datasheet.

Other Specifications

  • Dimension: 57.4 x 23.9mm
  • Weight: 5.1g
  • Operation Voltage: 3.3V


Write a review

Note: HTML is not translated!
    Bad           Good

Zio Qwiic nrf52840 Dev Board (101968)

  • Product Code: 101968
  • Availability: In Stock
  • $28.90

Tags: zio brain, modules
