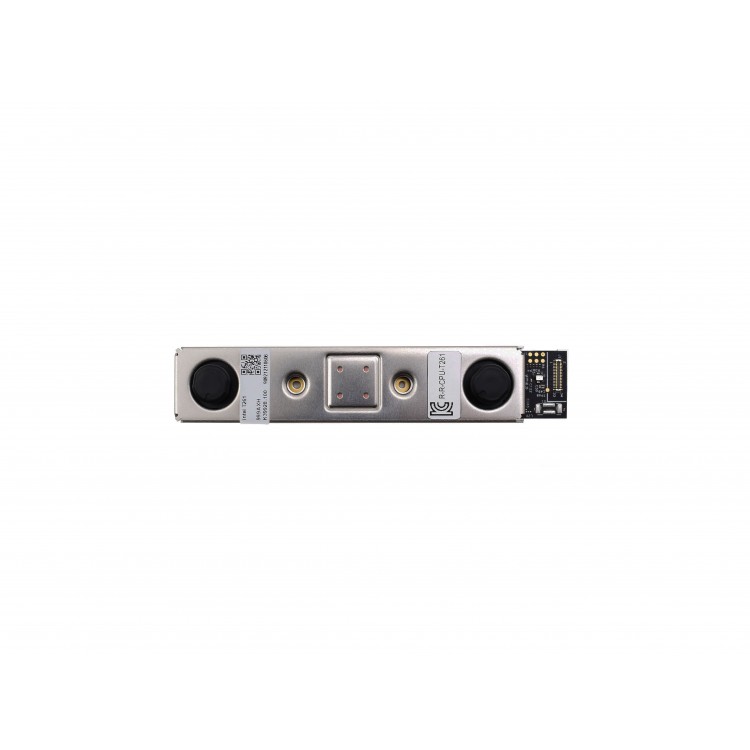

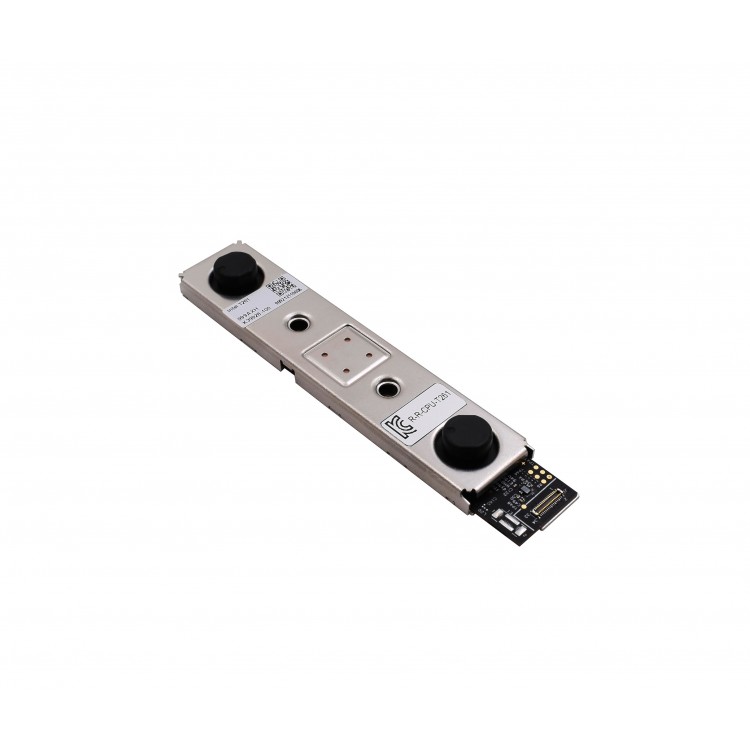

Intel® RealSense™ Tracking Module T261 (102035)

The Intel® RealSense™ T261 is a tracking module based on visual and inertial sensor fusion, with two fisheye cameras and an Inertial Measurement Unit (IMU).

For 6-DOF orientation and translation solution, the T261 features the Intel® Movidius™ Myriad™ VPU 2, that streams at 200Hz with only 6ms latency (you need a USB 3 connection to simultaneously stream 6-DOF data and feeds from the cameras, but just USB 2 for the 6-DOF solution data).


There’s also a Unity asset package that you can find here!


This module is the default 6-DOF sensor for our current version of Project North Star, but the Intel® RealSense™ T261 would also be a great tracking module for robots, drones, and other AR/VR projects.


Check out our low-profile ribbon cable USB adapters and other accessories for the Intel® RealSense™ T261:


Intel® RealSense™ T261 Features

  • Intel® Movidius™ Myriad™ VPU 2
  • High precision V-SLAM algorithms
  • 6-DOF data streaming to host
  • Low latency
  • OV9282 dual fisheye lenses with combined 163±5° FOV
  • BMI055 IMU for accurate measurement of rotation and acceleration


Intel and Intel RealSense are trademarks of Intel Corporation or its subsidiaries.

Write a review

Note: HTML is not translated!
    Bad           Good

This Bill of Materials can be downloaded here: PDF. The BOM can also be accessed here in a Google Spreadsheet.



Intel® RealSense™ Tracking Module T261 (102035)

Please consult us if you need this product.
  • Product Code: 102035
  • Availability: In Stock
  • $499.00

Tags: combinereality modules
