Introduction:

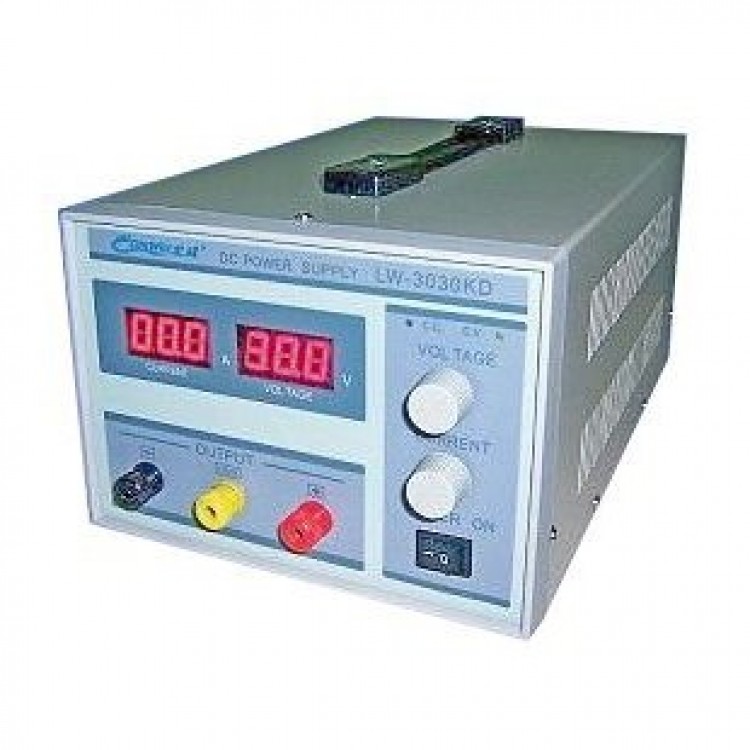

This is one of the strongest 15V power supply with up to 30A current. With 0-15V you have the right voltage for most low voltage applications, MCUs and motors, while the 0-30A provides more than enough current even for strong motors, magnets or LEDs.
The big red display shows you precisely what voltage and current you have set, while the fast reacting current limitation protects your precious circuit against being destroyed.
Features:
- 0-15V / 0-30A output
- high output stability
- good price
- bright display
- overload, over voltage, over current and over temperature protection
Details:
| Specification | |
|---|---|
| Input Voltage | 110/220VAC±10% |
| Input Voltage Frequency | 47 to 63Hz |
| Surge Current | input power 30A/115V, 60A/230V |
| Input Leakage Current | <0.7mA/230V |
| Output Voltage Range | 0-15VDC adjustable |
| Output Current Range | 0-30A adjustable |
| Isolation Test | Input to output: 1.5KVAC/1min |
| Input to outer shell: 1.5KVAC/1min | |
| Output to outer shell: 500VAC/1min | |
| Display Mode and Accuracy | LED digital display, ±1%, ±1% digit |
| Ripple and Noise | <1%(rms) |
| Voltage Stability | <0.1+2mV |
| Current Stability | <0.8% |
| Load Stability | <0.1 +2mV |
| Machine Frequency | >89% |
| Working Temperature and Humidity | -10°C to +40°C 20% to 90% |
| Storage Temperature and Humidity | -20°C to 80°C 20% to 80% |
| Cooling Method | Intelligent fan |
| Protection |
overload over voltage over current over temperature |
Package Content:
| Quantity | Content |
|---|---|
| 1 | Power Supply |
| 1 | Power Cord (please select above for which country) |
