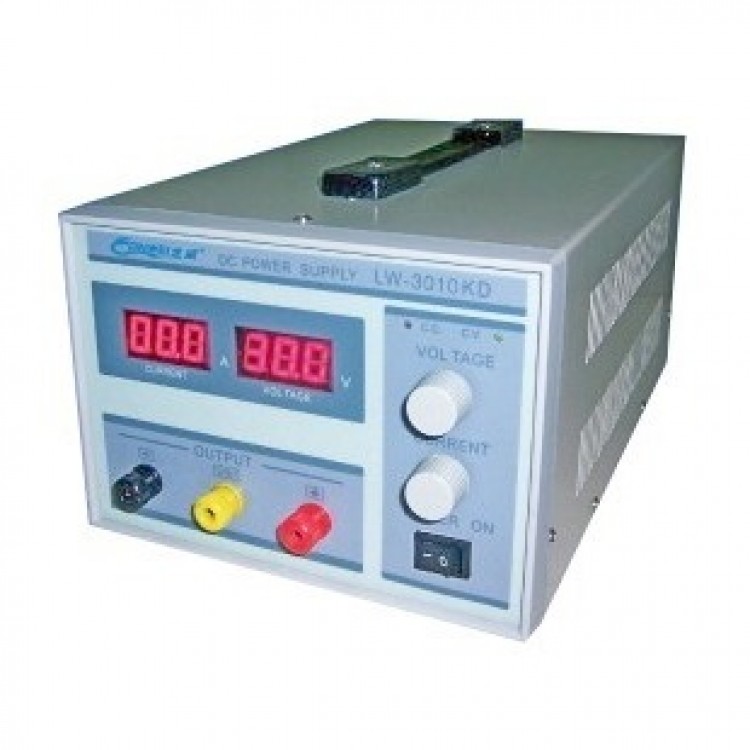

DC Power Supply LW LW-3010KD 0-30V 0-10A (100422)

Introduction:

This is one of the strongest 30V power supply with up to 10A current. With 0-30V you have the right voltage for most low voltage applications, MCUs and motors, while the 0-10A provides more than enough current even for strong motors, magnets or LEDs.
The big red display shows you precisely what voltage and current you have set, while the fast reacting current limitation protects your precious circuit against being destroyed.


Features:

  • 0-30V / 0-10A output
  • high output stability
  • good price
  • bright display
  • overload, over voltage, over current and over temperature protection



Details:

Specification
Dimension 350mm × 195mm × 150mm
Input Voltage 110VAC±10% or 220V AC±10%
Input Voltage Frequency 47 to 63Hz
Surge Current cool machine power 30A/115V, 60A/230V
Input Leakage Current <0.7mA/230V
Output Voltage Range 0-30VDC adjustable
Output Current Range 0-10A adjustable
Isolatotion Test Input to output: 1.5KVAC/1min
Input to outer shell: 1.5KVAC/1min
Output to outer shell: 500VAC/1min
Display Mode and Accuracy LED digital display, ±1%, ±1% digit
Ripple and Noise <1%(rms)
Voltage Stability <0.1+2mV
Current Stability <0.8%
Load Stability <0.1 +2m V
Machine Frequency >86%
Working Temperature and Humidity -10°C to +40°C 20% to 90%
Storage Temperature and Humidity -20°C to +80°C 20% to 80%
Cooling Method Intelligent fan
Protection overload
over voltage
over current
over temperature



Package Content:

Quantity Content
1 Power Supply
1 Power Cord (please select above for which country)
