LoRa Ra-01 433MHz Long Range Wireless Transceiver - SX1278

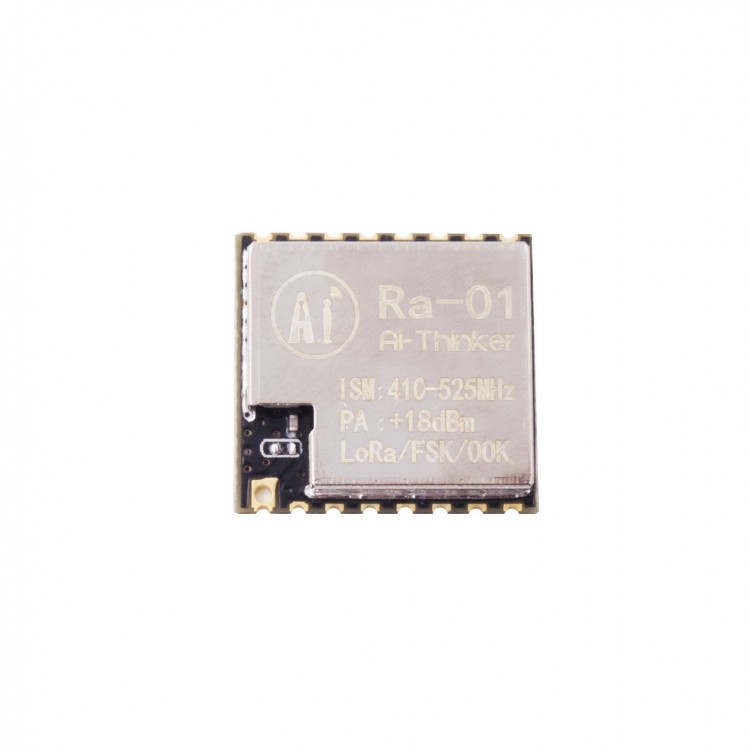

LoRa SX1278 10KM 433MHz Long Range Wireless Module Ra-01

Description

Developed by Ai-Thinker company, the manufacturer of the ESP32S, this Ra-01 LoRa (Long-range Radio) module will take your IoT projects the distance with communication over a long-range spread spectrum. This form of wireless communication results in a larger bandwidth, increasing interference resistance, minimizing current consumption, and increasing security.

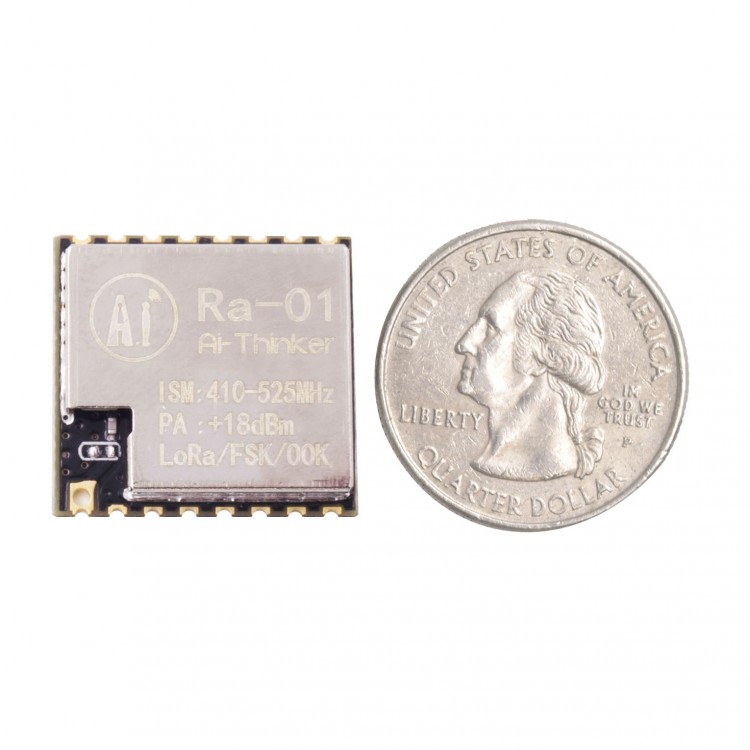

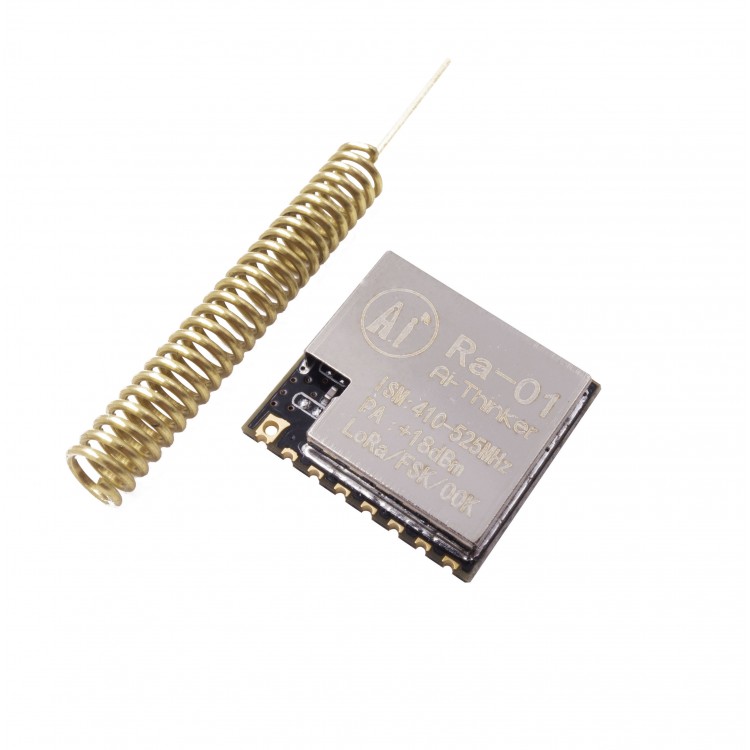

This module uses SX1278 IC and works on a 433MHz frequency. Frequency hopping—which gives you that sweet balance of quality signal transmission—will cover a range of 420-450MHz. This long range wireless capability is packed into a small (17 x 16mm) package and delivered through a spring antenna.


With the LoRa Ra-01, you don’t have to compromise in the balance of range, interference immunity, or energy consumption. The technology behind this IC means that it's perfect for those projects requiring range and strength.

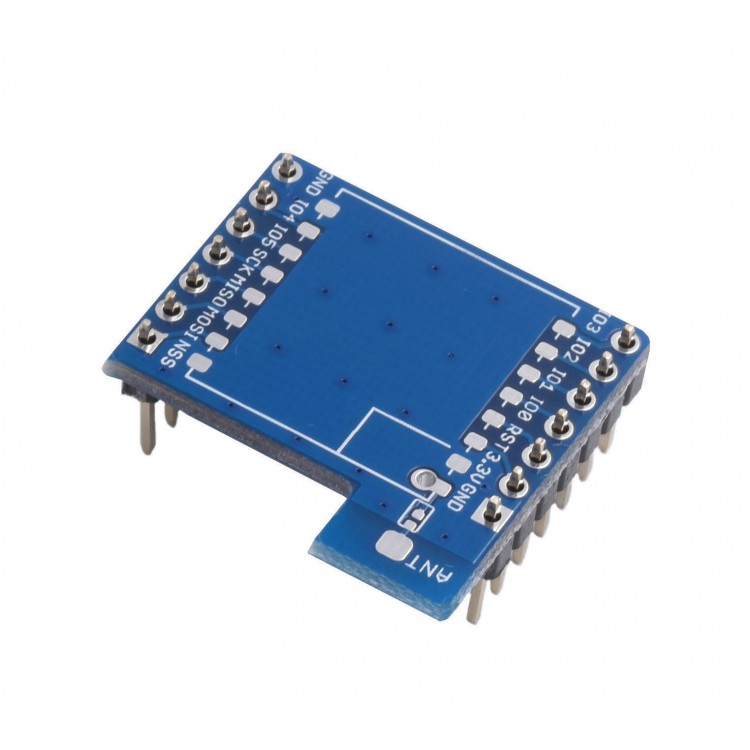

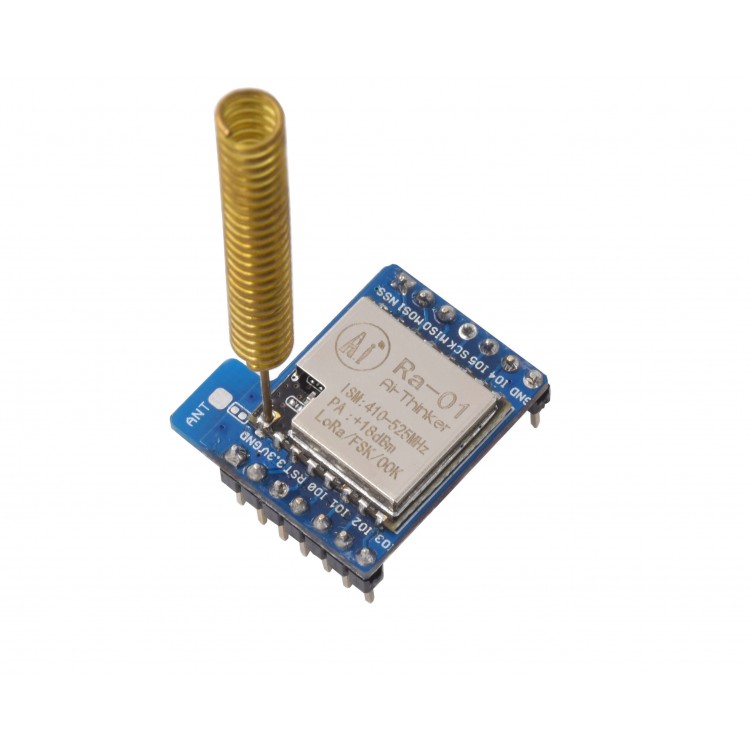

Note: If you would like to add the breakout board to your order, please select "Yes" in the Available Options section.


Features:

  • LoRaTM spread spectrum communication
  • +20dBm - 10mW. Stable RF output power when input voltage changed
  • Half-duplex SPI communication
  • Programmable bit rate can reach to 300kbps
  • Support FSK, GFSK, MSK, GMSK, LoRaTM and OOK Modulation Mode
  • 127dB RSSI wave range.
  • Automatically detect RF signal, CAD mode, and super high-speed AFC
  • With CRC 256 bytes data engine
  • Half hole (castellated hole)  SMD package
  • With metal shielding case
  • Spring antenna


Specifications:

  • Wireless Standard: 433MHz
  • Frequency range: 420 - 450MHz
  • Port: SPI/GPIO
  • Operating Voltage: 1.8 - 3.7V, default 3.3V
  • Working Current, Receive: less than 10.8mA (LnaBoost closed, Band 1)
    Transmit: less than 120mA (+20dBm),
    Sleep model: 0.2uA
  • Working temperature: -40- +85 degrees
  • Pin pitch: 2.0 mm

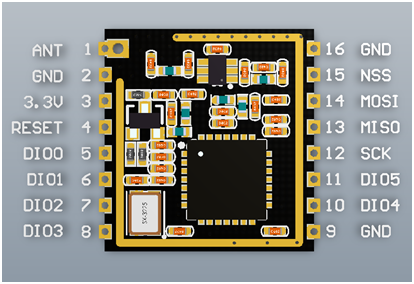

Pin Explanation

Ra-01
Ra-02
Pin
Description
1
-
ANT
Antenna
2
1, 2
GND
GND
3
3
3.3V
3.3V Power in
4
4
RESET
Reset
5
5
DIO0
Digital IO0, software setting
6
6
DIO1
Digital IO1, software setting
7
7
DIO2
Digital IO2, software setting

8

8
DIO3
Digital IO3, software setting

9

9
GND
GND

10

10
DIO4
Digital IO4, software setting

11

11
DIO5
Digital IO5, software setting

12

12
SCK
SPI Clock input

13

13
MISO
SPI data output

14

14
MOSI
SPI data input

15

15
NSS
SPI Selected-IN

16

16
GND
GND
