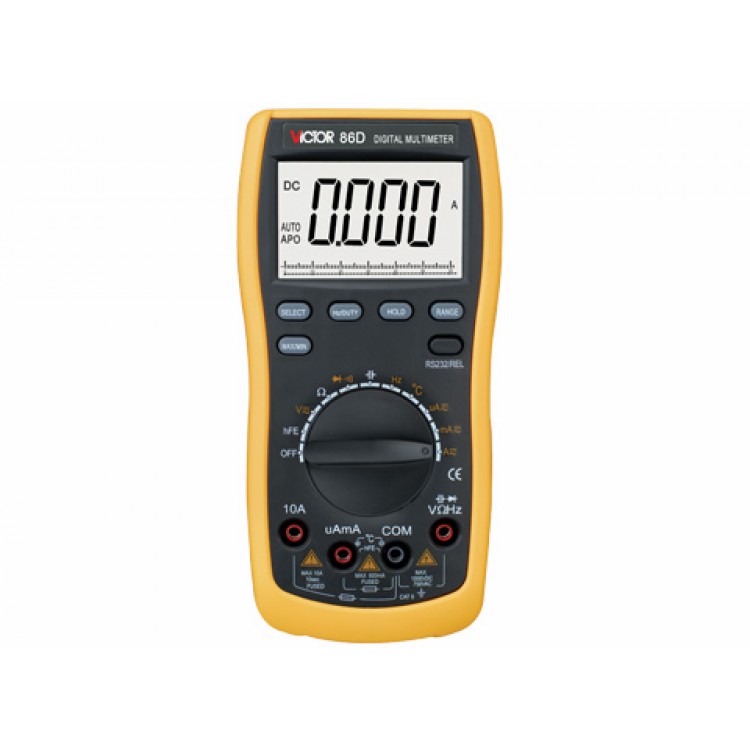

Multimeter Victor 86D (U,I,T,R,C, Autorange, USB)

Introduction:

The is the best auto-range multimeter for a medium budget we found on the market.
Can measure besides all standard values also capacitance, frequency, temperature and test transistors and diodes.
Last but not least you can connect this multimeter via USB directly to your computer for automated data acquisition or just for displaying and saving the values.
Perfect for all advanced and professional users.
See the related products for other multimeters.



Features:

  • auto-range
  • USB/RS232 interface
  • great price/performance ratio
  • large display with backlight and bar-graphs
  • measures also capacitance, frequency and temperature
  • all functions are protected against too high voltage
  • rugged case



Details:

Specification
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+4)
AC Voltage 6V/60V/600V/750V ±(0.8%+10)
DC Current 600uA/6000uA /60mA/600mA/10A ±(1.2%+10)
AC Current 600uA/6000uA /60mA/600mA/10A ±(1.5%+10)
Resistance 600Ohm/6kOhm/60kOhm/600kOhm/6MOhm/60MOhm ±(0.8%+4)
Capacitance 40nF/400nF/4uF/40uF/200uF ±(3.5%+8)
Inductance ---
Frequency 100Hz/1kHz/10kHz/100kHz/1MHz/30MHz ±(0.5%+15)
Temperature -20...1000°C ±(1.5%+15) / 0...1832°F ±(1.5%+15)

Diode Test yes
Transistor Test no
Continuity Buzzer yes
Low Battery Indication yes
Data Hold yes
Show Min/Max Values yes
Auto Power Off yes
Back Light yes
Display Unit Symbol yes
USB/RS232 Interface yes
Function Protection yes
Shockproof Protection yes

Input Impedance 10MOhm
Frequency / Duty Cycle 0.1%...99.9%
Sampling Rate 3Samples/s
AC Frequency Response 4...400Hz
Setting Range Auto
Max. Display 5999
LCD Size 70x50mm
Battery 3V (1.5Vx2)

Product Color Case: Dark Gray; Holster Color: Yellow
Product Dimension 191x93x48mm
Product Net Weight 320g (including battery)



Package Content:

Quantity Content
1 Measurement Cable
1 Temperature Probe
1 Battery
1 Instruction Manual
1 USB Cable
1 CD with PC Software
1 Protective Bag



Links & Downloads:

Manufacturer Website
Manual
Software

Write a review

Note: HTML is not translated!
    Bad           Good

Multimeter Victor 86D (U,I,T,R,C, Autorange, USB)

  • Brand: Victor
  • Product Code: 100411
  • Availability: In Stock
  • $36.99
  • 10+$35.00
  • 30+$33.00
  • 50+$30.00
