Description

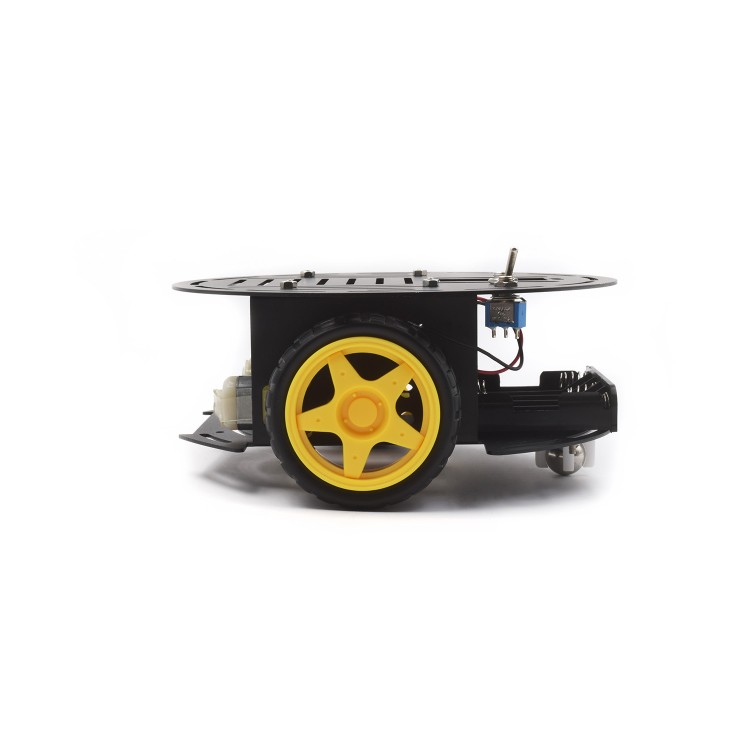

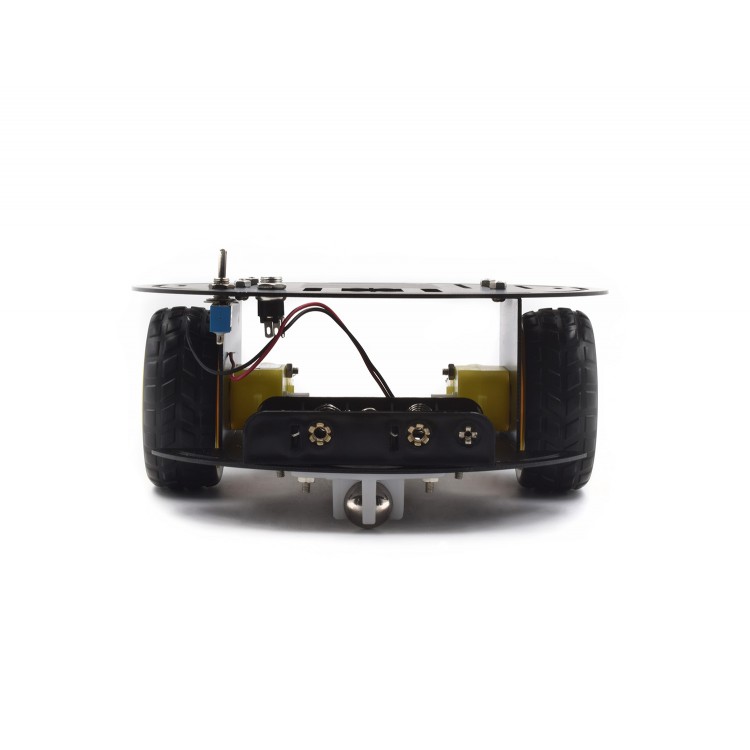

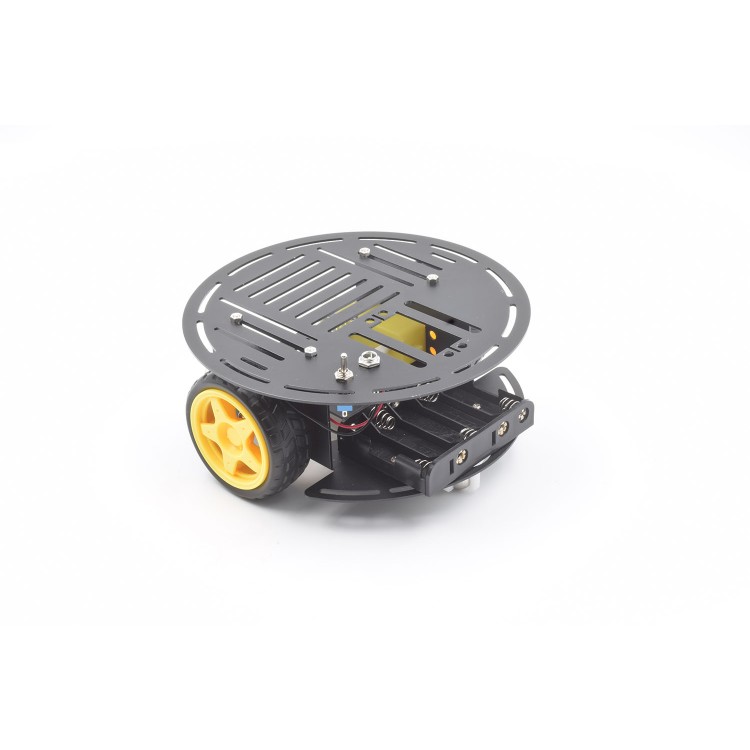

This kit includes everything you need to build the body of a 2-wheel-drive Robot. For beginners and more advanced users alike, this kit is a great platform. For beginners just learning to construct a robot, this kit lets you build from the skeleton, up. Whereas for more advanced builders, use this platform to explore more advanced modules and sensors.

Made for indoor use, two circular, anodized aluminum, metal chassis provide a light, but durable frame. It is roughly the size of your hand-span. All the mounting hardware you need to set up the skeleton and motor system are included. Stability is provided through a ball-castor.

Easy to use with your choice of microcontroller, install your favorite sensors and modules and make this Scarab skitter. Combination choices are endless, but we recommend pairing: a 2DOF pan-tilt mount with an infrared, light, or an ultrasonic sensor to avoid obstacles; Arduino Uno; servo controller; motor driver; perhaps a TOF sensor; and a wireless RF module.

Note: This is just the body of the robot and motors. Microcontroller, sensors, and batteries, not included.

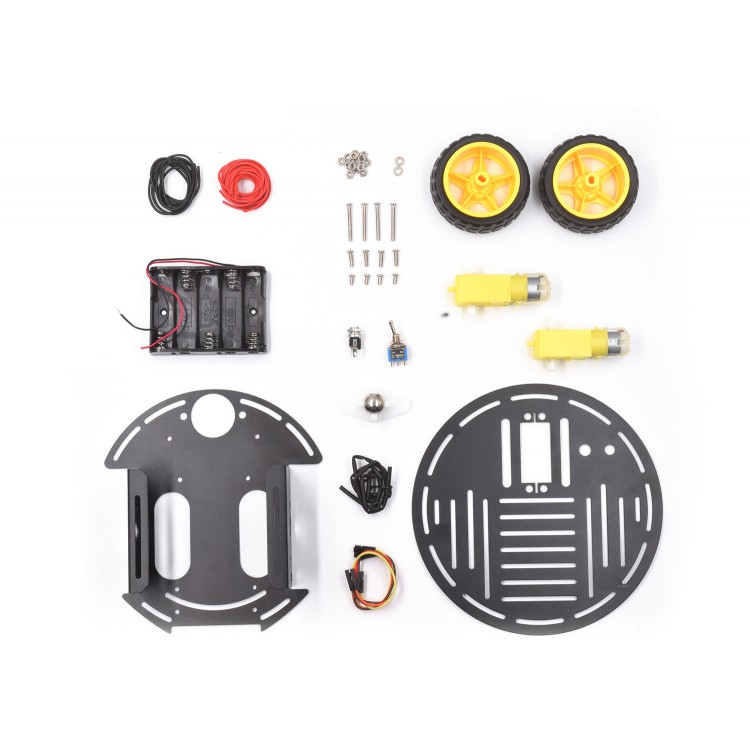

Package includes:

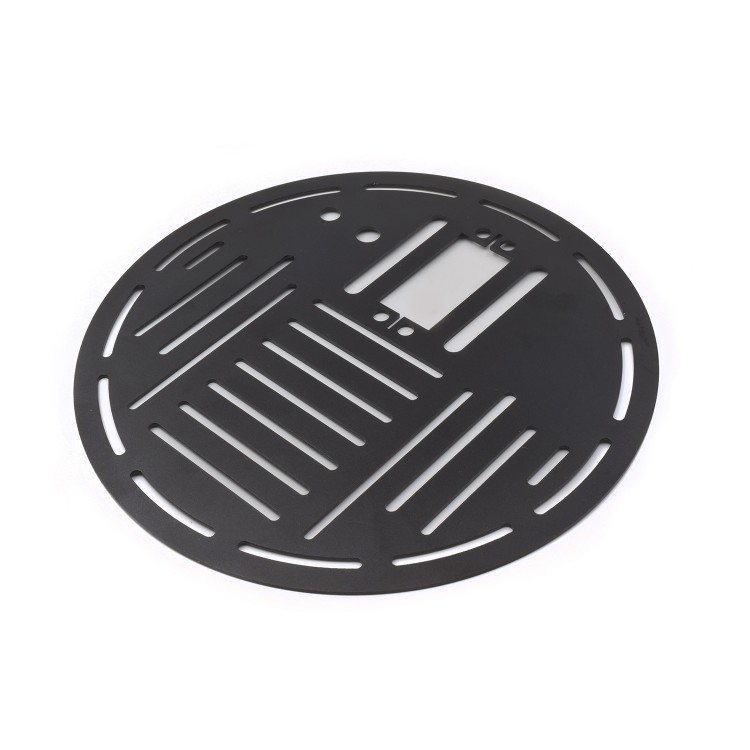

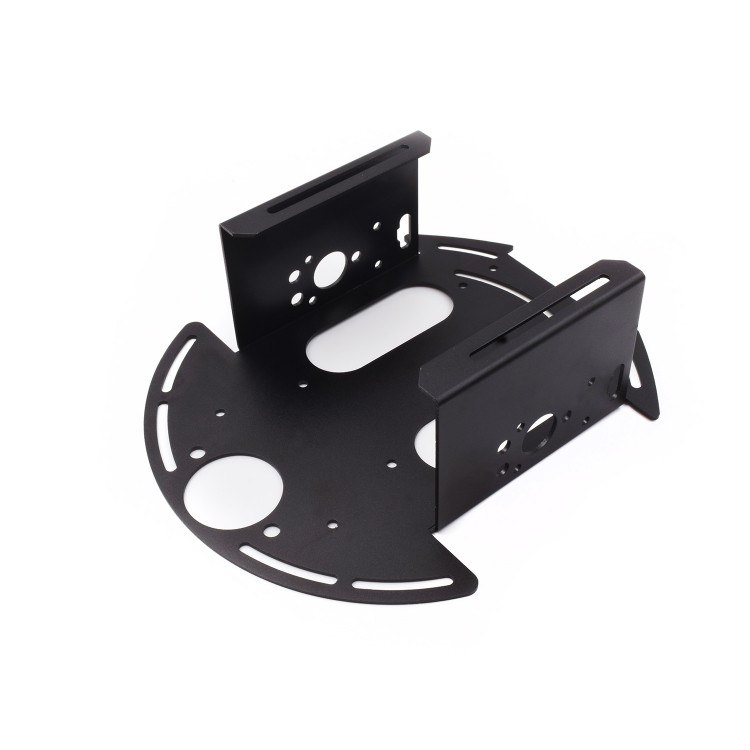

x2 Chassis panels

x2 65mm rubber wheel

x1 Universal ball castor

x1 DC Barrel jack panel mount

x1 Switch

x2 Power cables

Lots of M3 Nuts

x4 M3 25mm screws

x4 M3 10mm screws

x4 M3 6mm screws

x2 Washers

x4 Jumper wires

Specifications:

Robot height: 3.2 in (8 cm)

Weight: 1.12 lb. (506 g)

Diameter of chassis: 6.7 in (17 cm)

Wheel height: 2.6 in (6.5 cm)

Chassis distance from ground: 0.8 in (2 cm)

Height between chassis: 2.4 in (6 cm)

Gear ratio 1:48

No-load speed: 220rpm

Torque (3V): 3200 mg/cm

Torque (6V): 5500 mg/cm
