Barometric Pressure Sensor BMP180 (I2C) (10100320)

Description:

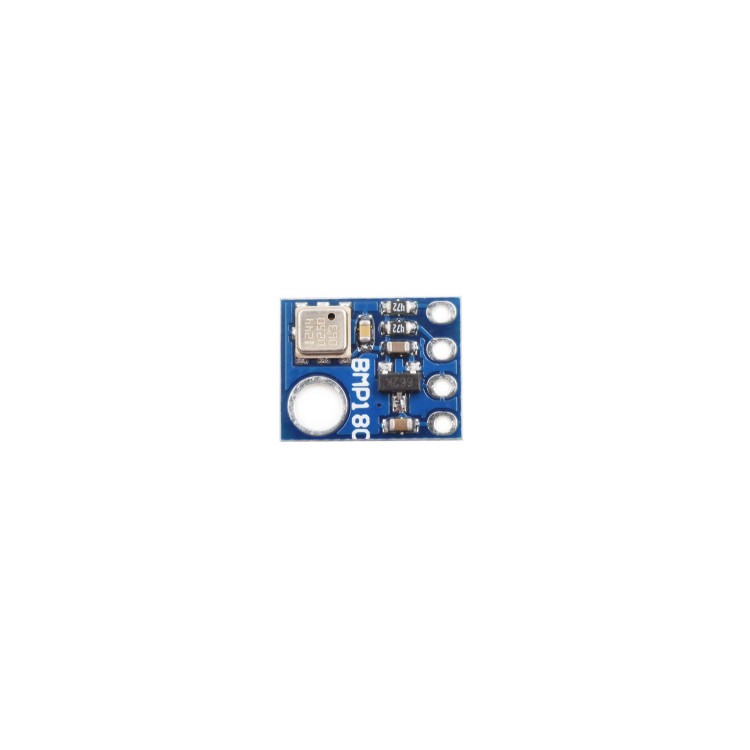

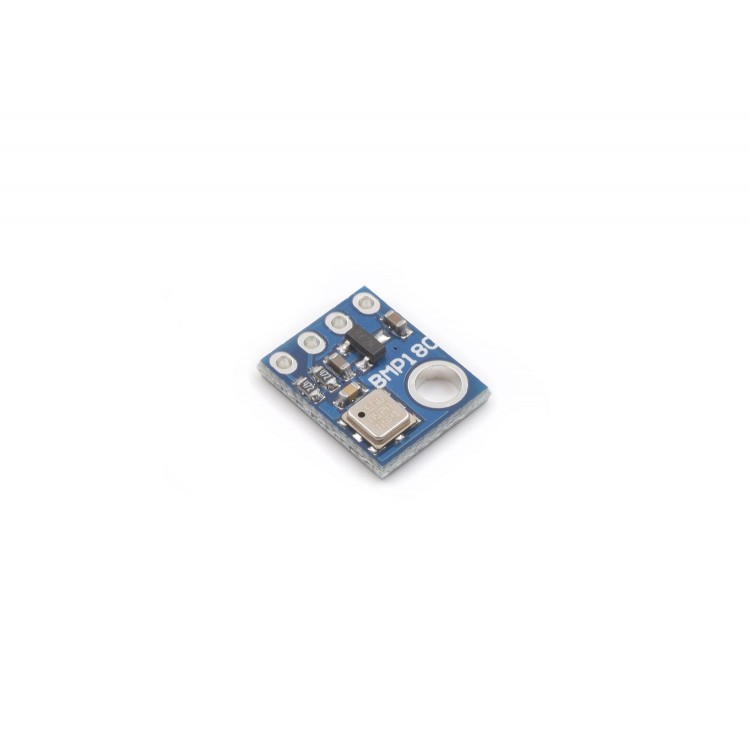

This precision sensor from Bosch is the best low-cost sensing solution for measuring barometric pressure and temperature. Because pressure changes with altitude you can also use it as an altimeter! The sensor is soldered onto a PCB with a 3.3V regulator, I2C level shifter and pull-up resistors on the I2C pins.


Specifications:

  • Dimensions: 3.6 x 3.8 x 0.93mm
  • Pressure sensing range: 300 ~1100 hPa (9000m to -500m above sea level)
  • Interface : I2C
  • Low power consumption: 5A in the standard model
  • -40 to +85°C operational range, +-2°C temperature accuracy
  • This board/chip uses I2C 7-bit address 0x77.
