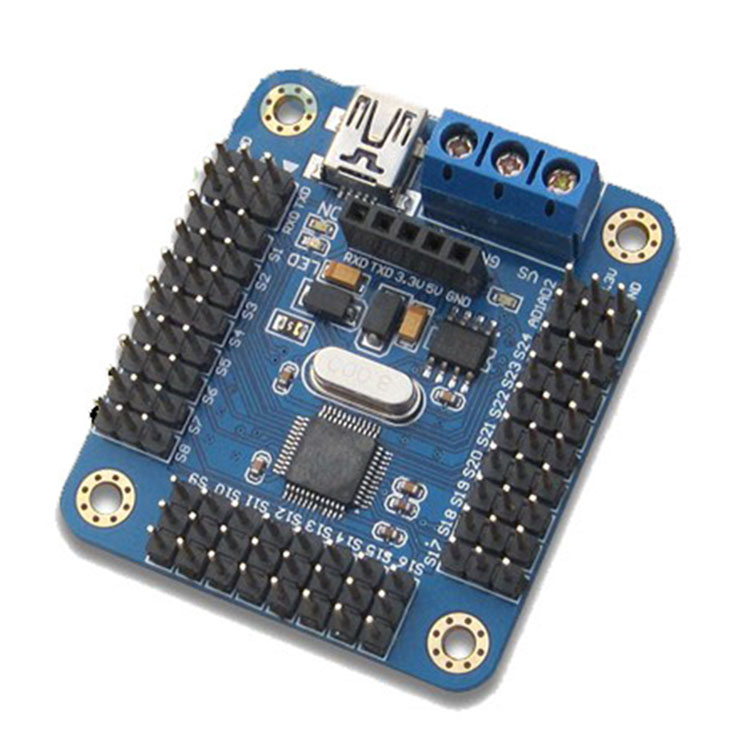

Servo Motor Control Board with Mini USB Port (16 Channels) (101274)

This is a low cost but very powerful option. Easily control up to 16 servos through this servo control board.

16 Channels can be simultaneously powered via a mini USB port.

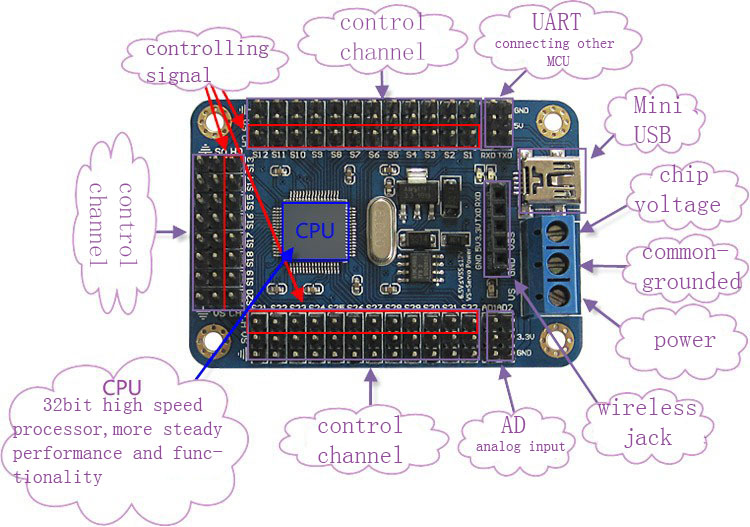

  • Control chip power supply range:6.5V-12V or 4.5V-5.5V (With USB reverse protection)
  • Steering engine power supply:5V DC
  • Control channel: it can control 16 servos at the same time.(the speed of steering engine is adjustable)
  • PIF in: USB or TTL/USART(you can use bluetooth or other wireless module to control steering engine)
  • Signal output: PWM(accuracy=1us)
  • Resolution of servo steering engine: 1us,0.09 degree.
  • Height between classis and ground:24mm
  • Baud rate range: 9600 19200 38400 57600 115200 128000(Fully automatic identification, without setting)
  • Support servo steering engine: Futaba or Hitec and any steering engine use PWM control signal.
  • PCB dimension: 51mm x 43.5mm x 1.6mm(mounting hole spacing :42mm x 35.5mm)
  • Control method: USB and TTL(with a free USB cable and the host control software)
  • Flash:onboard 512k ROM
