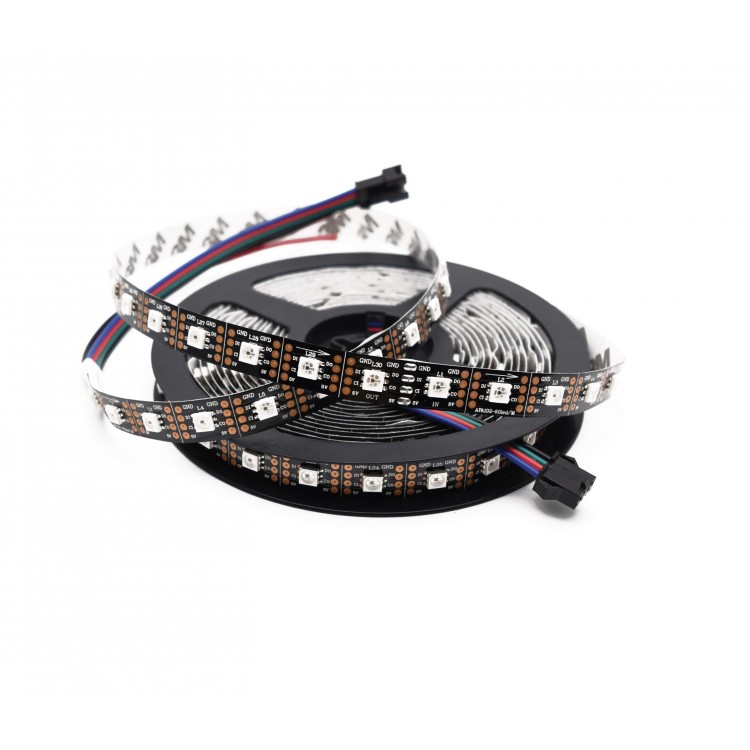

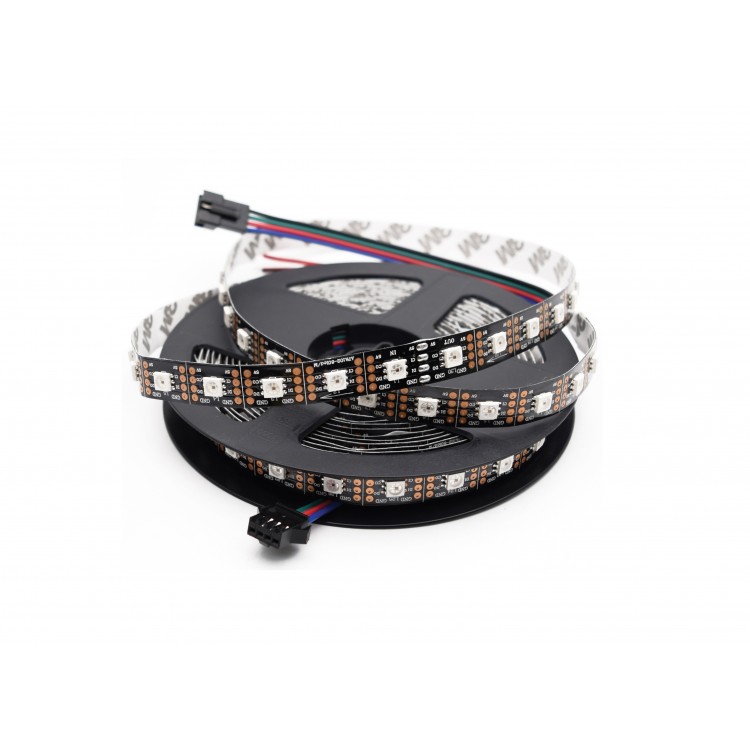

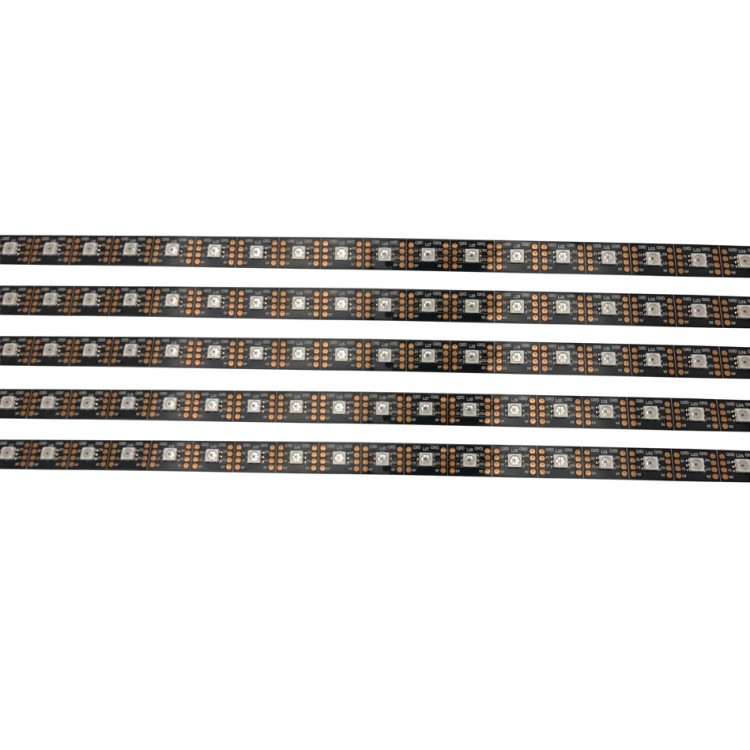

APA102C RGB LED stripe 60 LEDs per meter 5 meters (101791)
Click Image for Gallery
APA102C RGB LED stripe 60 LEDs per meter 5 meters | 101791 | Other by www.smart-prototyping.com APA102C RGB LED stripe 60 LEDs per meter 5 meters | 101791 | Other by www.smart-prototyping.com APA102C RGB LED stripe 60 LEDs per meter 5 meters | 101791 | Other by www.smart-prototyping.com APA102C RGB LED stripe 60 LEDs per meter 5 meters | 101791 | Other by www.smart-prototyping.com



Description

This LED stripe is similar like the well-known full-color LED WS2812 serial, it is an individually addressable LED strip based on the APA102-C 'Super LED' integrated RGB LED and driver. The strip is powered by a 5V power supply (not included) and is controlled by a clock+data signal from a suitable controller (not included), for example, Arduino, Raspberry Pi, PixelPusher or similar microcontroller/computer. Compatible with the FastLED library.

4-pin JST connector included:


Red: VCC
Yellow: CLK
Green: DATA
BLUE: GND


Datasheet:

APA102.pdf

Write a review

Note: HTML is not translated!
    Bad           Good

APA102C RGB LED stripe 60 LEDs per meter 5 meters (101791)

  • Product Code: 101791
  • Availability: In Stock
  • $78.00
  • 5+$75.00
  • 20+$70.00
Add to Wish List Compare this Product

0 reviews / Write a review
