Description

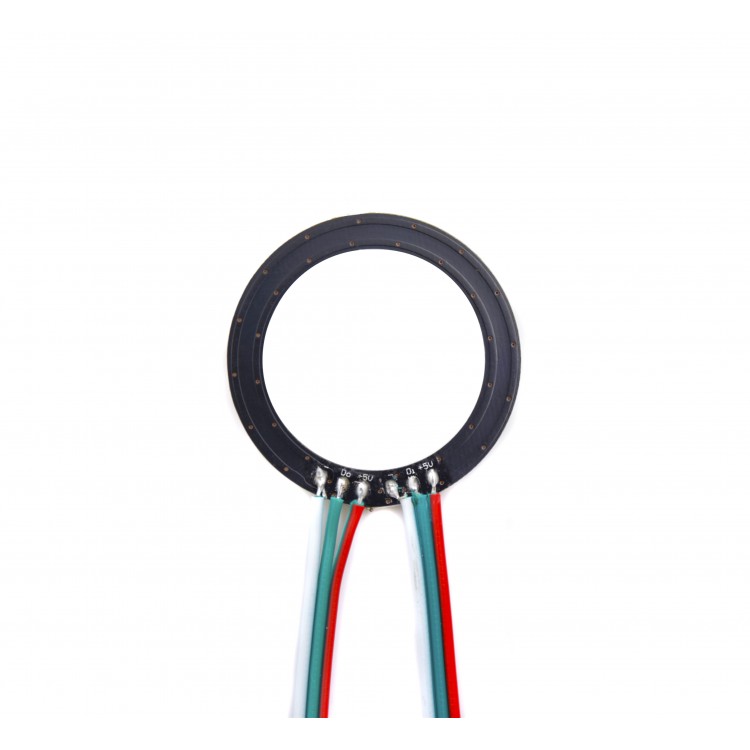

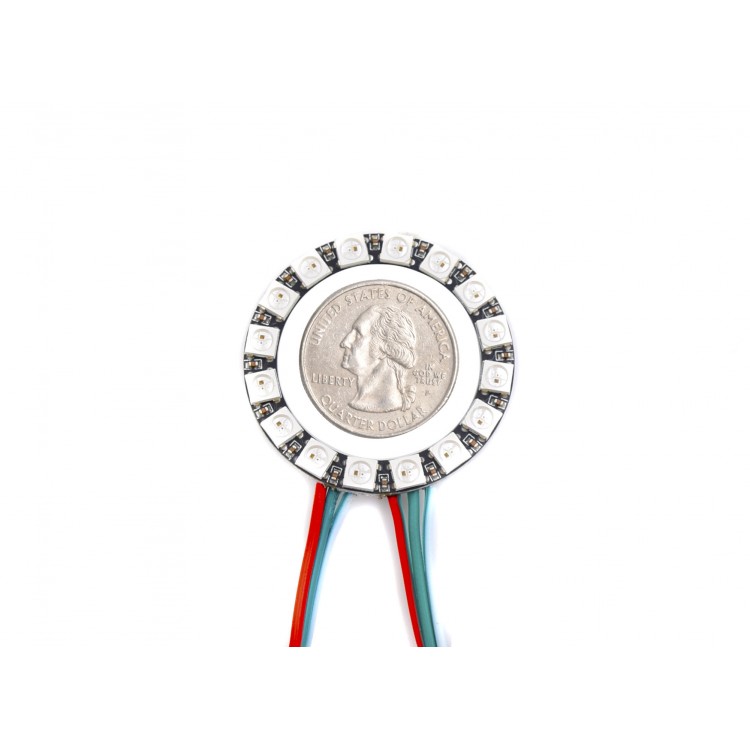

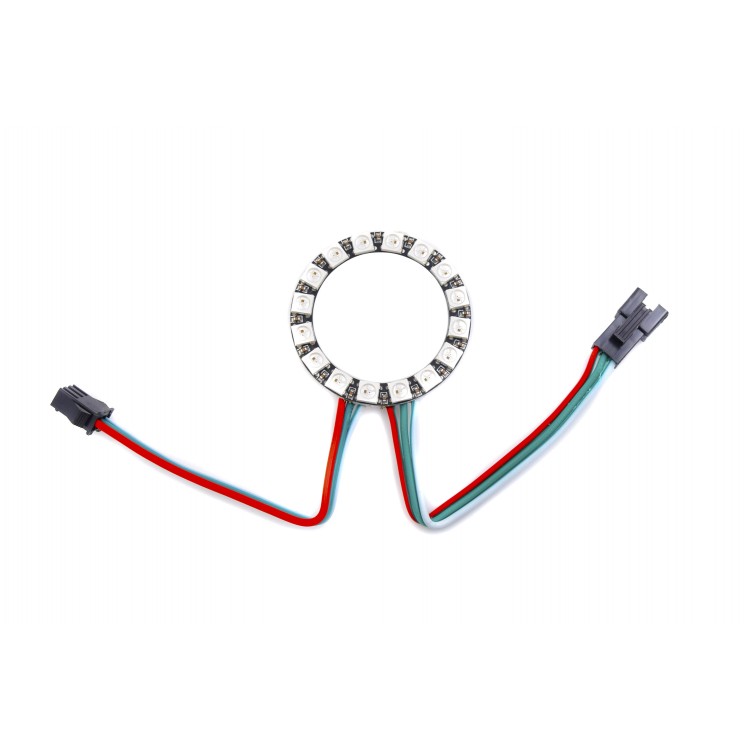

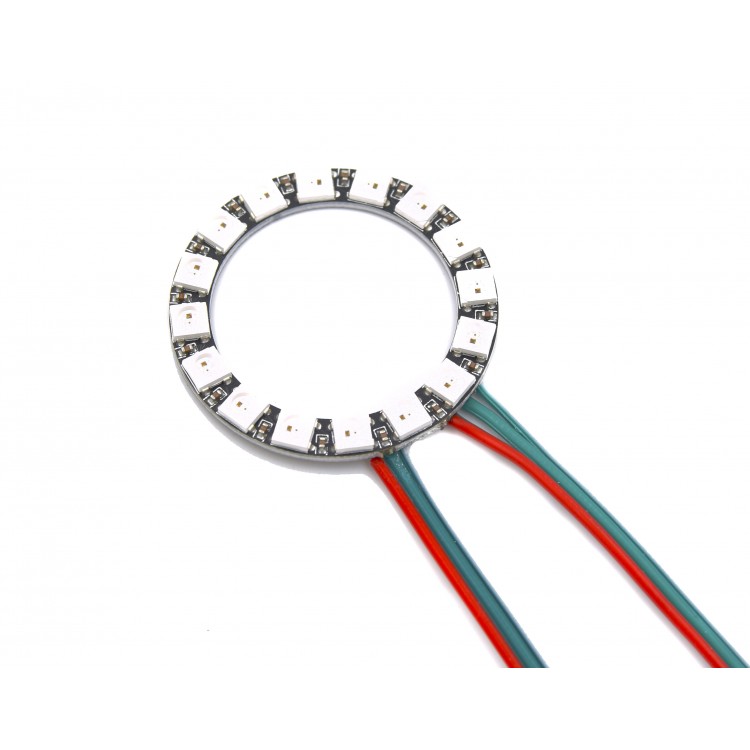

This smaller LED ring has 16 addressable SK6812 RGB LEDs on board with two sets of 3-wire input and output cables and connectors. Daisy chain away with more LED rings.

These SK6812-based LED strips work as a drop-in replacement for the older WS2812B-based strips in most applications, and they can chain together with the WS2812B-based LED strips.

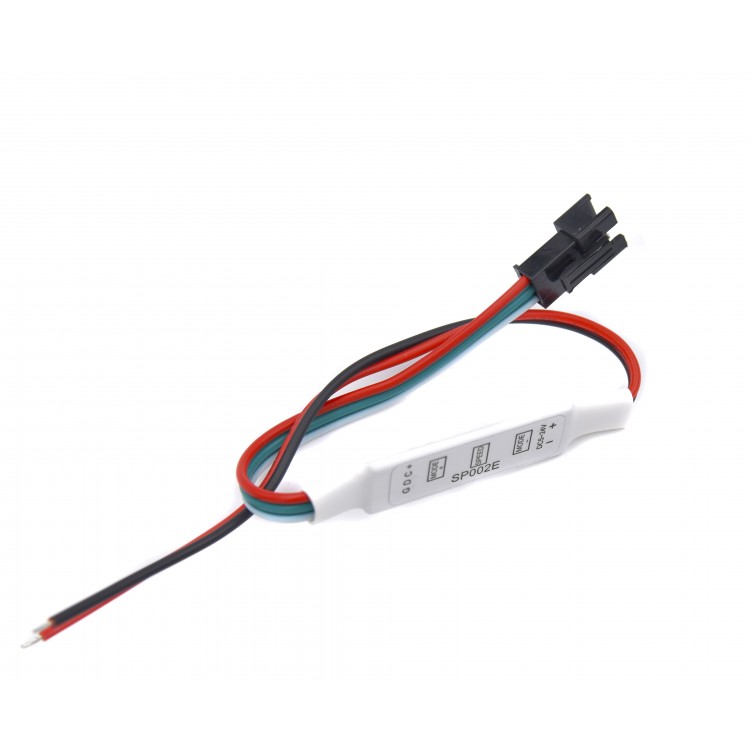

If you want to experience the brilliance of the LEDs without spending time on coding, you can also add-on a small controller. All you need to do is plug it into your power supply and enjoy!

Specifications

• LEDs: 16

• Dimension: 45.0mm diameter

• LED model: SK6812
• LED Light color: 256 RGB
• Operating Voltage: 5V
• Waterproof: NO

• PCB Thickness: 1.0mm
• LED controller: Optional (Note: The LED controller is not open-source device)


Links

SK6812 Datasheet

Adafruit Neopixel Library
