North Star Deck X Kit A (without 3D Printed Parts) (102015)

Note: This kit uses the Leap Motion Controller for hand tracking and the Intel® RealSense™ T261 for 6-DOF spatial tracking of the headset itself—both of which are available as add-ons. We’re working on ribbon adapters for other popular 6-DOF sensors but, for now, if you want to use a different 6-DOF sensor, you’ll need to get your own ribbon adapters (and probably modify the 3D-printing files).

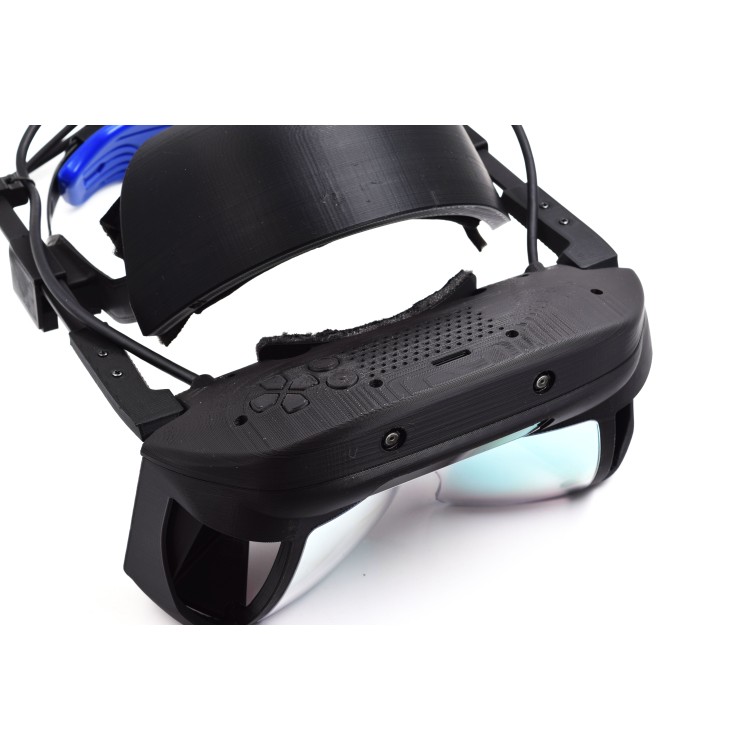

This modular AR headset kit from CombineReality provides all the components necessary to build your Project North Star Deck X, our modified version of the Project North Star v3.2 headset (3D-printed parts not included).


With the Intel® RealSense™ T261 6-DOF sensor and Ultraleap’s Leap Motion Controller hand-tracking sensor packed under one lid, the Deck X is more compact than our previous modified versions. It also comes with the Integrator, our custom-built USB Hub System with integrated Arduino, Flash Drive, and built-in programmable buttons. The buttons can do whatever you want—but come pre-programmed for adjusting optical ergonomics factors, like IPD and eye position relative to the lenses.


The most exciting part about the Integrator, though, might be that it brings down the use of cables down from 4 to just 2! Not only does that reduce the number of USB ports used on your computer, it greatly reduces the weight of the cable bundle hanging off the back of your head. And, to be frank, it also just looks a lot less janky.


About the CombineReality kits:


Our Project North Star kits are made to accommodate our customers’ different needs, preferences, and access to a 3D printer.

  • Kit A provides all the necessary components to build a Project North Star Deck X headset, except the 3D-printed parts. The Intel® RealSense™ T261 and LMC are available as add-ons.
  • Kit B provides all the necessary components to build a Project North Star Deck X headset, including the 3D-printed parts. The Intel® RealSense™ T261 and LMC are available as add-ons.
  • Kit C provides a pre-assembled Project North Star Deck X headset, packed and shipped inside the Deck X Rugged Carrying Case.


Check out the table below for more details:


ComponentsKit AKit BKit C
North Star Classic Electronics & Optics


Pre-Assembled
North Star Deck X Specific Electronics


Pre-Assembled
North Star Mechanical Parts


Pre-Assembled
North Star 3D Printed Parts Pre-Assembled
PETG 3D Printed Sensor Mounting Bracket for T261*Pre-Assembled
North Star Cables Bundle Pre-Assembled
Accessories for Intel® RealSense™ T261Pre-Assembled
Intel® RealSense™ T261OptionalOptionalPre-Assembled
Leap Motion ControllerOptionalOptionalPre-Assembled
Screwdriver & Hex Wrench
Deck X Rugged Carrying CaseOptionalOptional



*) All kits, including Kit A, come with a PETG + carbon fiber 3D-printed sensor mounting bracket because of the temperatures that the T261 can reach (above the point where PLA loses its structural integrity). Also because filaments with carbon fiber in them are abrasive—and a little bit exotic.


For a full overview of the kit's content, please check the Bill of Materials tab.


As well as headset kits, individual components can be purchased for your set-up—including the lenses, display driver board, and high-resolution 120Hz-capable BOE displays specified in Leap Motion’s North Star reference design.


If you have any questions or requests, please contact us. Good luck with your North Star build!


--


Useful Links

This headset kit requires a certain level of technical expertise. Please consult these technical resources before purchasing:




 Intel and Intel RealSense are trademarks of Intel Corporation or its subsidiaries.

Write a review

Note: HTML is not translated!
    Bad           Good

This Bill of Materials can be downloaded here: PDF. The BOM can also be accessed here in a Google Spreadsheet.





North Star Deck X Kit A (without 3D Printed Parts) (102015)

  • Product Code: 102015
  • Availability: SOLD OUT
  • $349.00

Available Options

Tags: combinereality kits, bundles
