Zio is a new line of open sourced, compact, and grid layout boards, fully integrated with Arduino, Raspberry Pi, ESP32, MicroPython and any MCU support I2C.
Designed by Smart Prototyping, Zio is made suitably for wearables, robotics, small-space limitations or other on the go projects.
Build on Sparkfun's Qwiic Connect System all Qwiic modules can be connected and used plug and play with any other module which has a Qwiic connector. And in case you want to connect other modules you can use our Qwiic adapters to a Pinheader, Breakout Board, Grove, Raspberry Pi.
You can learn more on our Zio on the Zio landing page zio.cc.

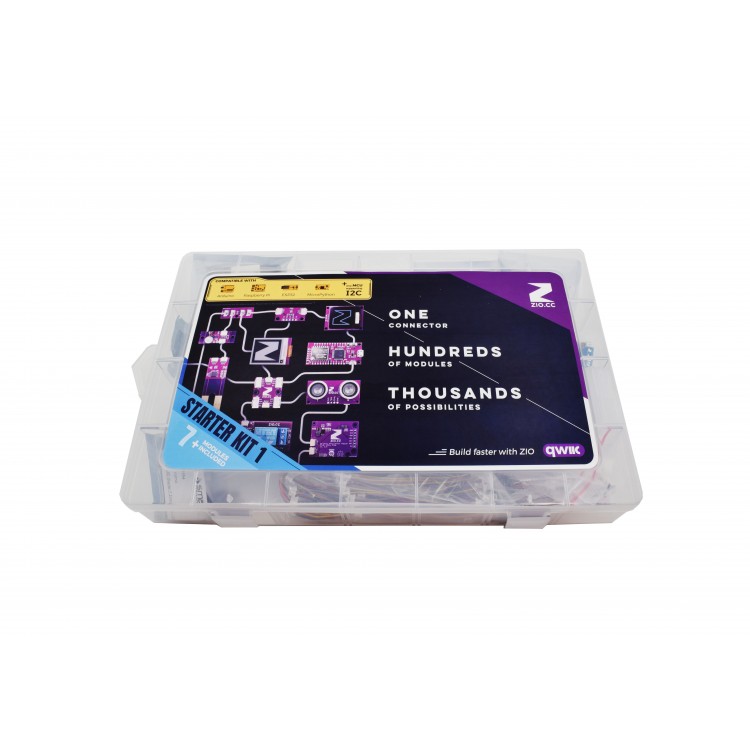

Special Limited Time Offer: The Zio Starter Kits are significantly cheaper than buying each Zio Module separately. And for market introduction we offer an insane discount on top of that. Due to that the Starter Kits are limited to 1 Starter Kit per customer.
| Zio Starter Kit Comparison | Kit 1
| Kit 2
| Kit 3 |
Price of Starter Kit (USD)
| 29.90
| 49.90
| 99.90 |
Price if Purchased Separately (USD)
| 68.70
| 117.60
| 220.90 |
| Savings (USD) | 38.80 | 67.70 | 121.00 |
| |
| Modules Included | 7 | 12 | 20 |
| Cables Included | 18 | 33 | 45 |
| Other Parts Included | 36 | 72 | 107 |

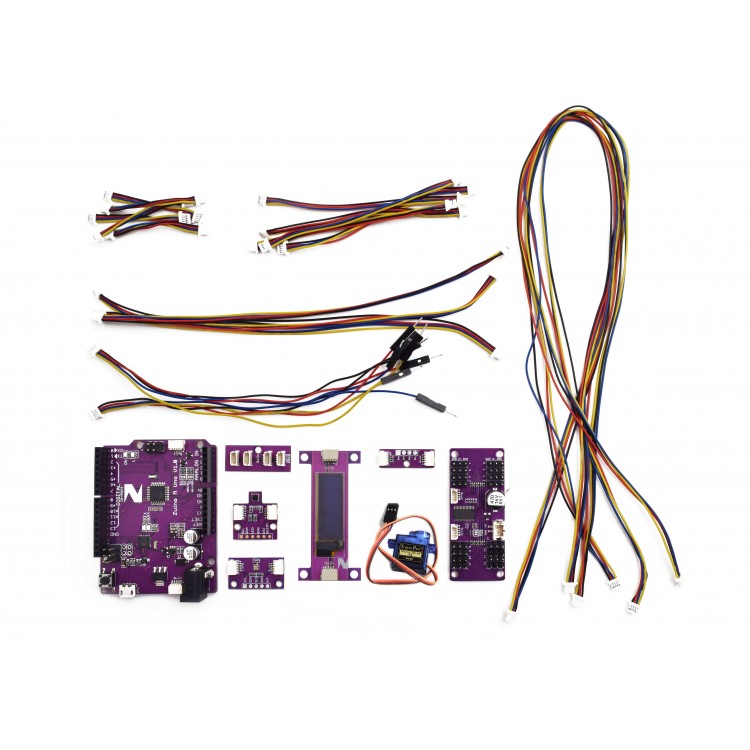

| Category | SKU NO. | Product Name | Kit 1 | Kit 2
| Kit 3 |
| Computation | 101886 | Zuino M UNO (5V Qwiic) | 1 | 1 | 1 |
| 101887 | Zuino XS PsyFi32 (ESP32, Qwiic, 3.3V, WiFi, BLE) | - | - | - |
| 101934 | Zio nRF52832 Dev Board (Qwiic, BLE, NFC, 3.3V) | - | - | - |
| 101968 | Zio Qwiic nrf52840 Dev Board | - | - | - |
| 101793 | Raspberry Pi | - | - | - |
| Qwiic Communication | 101899 | Zio Qwiic Adapter (Qwiic to 4-Pin Header) | 1 | 1 | 1 |
| 101898 | Zio Qwiic Hub (3 extra Qwiic Connectors) | 1 | 1 | 1 |
| 101946 | Zio Qwiic to Grove Adapter | - | 1 | 1 |
| 101925 | Zio Qwiic Level Translator (PCA9306) | - | - | - |
| 101937 | Zio Qwiic Hat for Raspberry Pi | - | 1 | 1 |
| 101901 | Zio Qwiic IO Expander (16 Channels) | - | - | - |
| 101911 | Zio Qwiic Booster (LTC4311) | - | - | - |
| 101900 | Zio Qwiic Mux (8 multiplexed Qwiic I2C Busses) | - | - | - |
| Wireless Communication | 101956 | Zio Qwiic Lora Module (433MHz, I2C) | - | - | - |
| 101966 | Zio Qwiic Lora Module 915MHz | - | - | - |
| 101940 | Zio Qwiic LoRa Dev Board (433MHz) | - | - | - |
| Power Management | 101975 | Zio Qwiic Power Adapter LM2596 | - | - | - |
| 101917 | Zio DC-DC Booster | - | - | - |
| 101888 | Zio LiPo Battery Manager (Qwiic, 3.7Vin, 0.5A/Charger, 3.3Vout, 1.35Amax) | - | - | - |
| Actuator / Driver | 101939 | Zio Qwiic Relay (1 Channel) | - | 1 | 1 |
| 101896 | Zio 16 Servo Controller (Qwiic) | 1 | 1 | 1 |
| 101897 | Zio 4 DC Motor Controller (Qwiic, 2.5 to 13.5V, 1.2A Continuous, 3.2A Peak) | - | - | 1 |
| 101932 | Zio Qwiic RGB LED APA102 | - | - | 1 |
| Sensors (General) | 101904 | Zio Line Finder (Qwiic, 4 Transceivers) | - | - | - |
| 101905 | Zio Rotary Encoder Sensor | - | - | - |
| 101931 | Zio Qwiic Current & Voltage Sensor INA219 | - | - | 1 |
| 101936 | Zio Qwiic RGB Color Sensor TCS34725 | - | - | - |
| 101924 | Zio Qwiic RTC module (DS3231) | - | - | - |
| 101928 | Zio Qwiic Surface Temperature Infrared Sensor (MLX9061) | - | - | - |
| 101955 | Zio Qwiic GPS Module (U-blox, NEO-M8N-0-10) | - | - | - |
| 101974 | Zio Qwiic RFID Card Reader Module (MFRC522) | - | - | - |
| Sensor (Distance) | 101890 | Zio Ultrasonic Distance Sensor (Qwiic, 2 to 400cm) | - | 1 | 1 |
| 101891 | Zio TOF Distance Sensor RFD77402 (Qwiic, 10 to 200cm) | - | - | - |
| Sensor (Environment) | 101927 | Zio Qwiic Air Pressure Sensor (BMP280) | - | - | 1 |
| 101926 | Zio Qwiic Temperature Humidity Sensor (SHT31) | 1 | 1 | 1 |
| 101963 | Zio Qwiic PM2.5 Air Quality Sensor + Adapter Board | - | - | - |
| 101930 | Zio Qwiic Light Sensor TSL2561 | 1 | 1 | 1 |
| 101929 | Zio Qwiic UV Sensor VEML6075 | - | - | - |
| 101957 | Zio Qwiic Loudness Sensor (I2C) | - | 1 | 1 |
| 101941 | Zio Qwiic Soil Moisture Sensor (I2C) | - | - | 1 |
| Sensor (Orientation) | 101935 | Zio Qwiic Triple Axis Magnetometer MLX90393 | - | - | - |
| 101893 | Zio 9DOF IMU LSM9DS1 (Qwiic) | - | - | - |
| 101892 | Zio 9DOF IMU BNO055 (Qwiic) | - | - | 1 |
| 101894 | Zio 9DOF IMU BNO080 (Qwiic) | - | - | - |
| User Interface (Input) | 101970 | Zio Qwiic Capacitive Touch Sensor Module (AT42QT2120) | - | - | - |
| 101964 | Zio Qwiic Gesture Sensor (PAJ7620U2) | - | - | 1 |
| User Interface (Display) | 101902 | Zio OLED Display (0.91 in, 128x32, Qwiic) | 1 | 1 | - |
| 101954 | Zio Qwiic OLED Display (1.5inch, 128x128) | - | - | 1 |
| 101906 | Zio E-Ink Display (1.5 in, 200x 200 pixels) | - | - | - |
| 101907 | Zio E-Ink Display (2.1in, 2 Grey) | - | - | - |
| 101909 | Zio E-Ink Display (2.9 in, Black, White, Red) | - | - | - |
| 101908 | Zio E-Ink Display (2.9 in, 296x128 pixels 2 Grey) | - | - | - |
| 101921 | Zio Qwiic E-ink Display (2.9inch, black and white, 296x 128 pixel) | - | - | - |
| 101921 | Zio Qwiic E-ink Display (2.9inch, black, white and Red, 296x 128 pixel) | - | - | - |
| User Interface (Audio) | 101942 | Zio Qwiic MP3 Player | - | - | 1 |
| User Interface (Haptic) | 101943 | Zio Qwiic Haptic Motor Controller + LRA Motor (Y-Axis, G0832012) | - | - | - |
| Cables | 101831 | Qwiic Cables 5 cm | 5 | 10 | 15 |
| 101832 | Qwiic Cables 10 cm | 5 | 10 | 15 |
| 101833 | Qwiic Cables 20 cm | 3 | 5 | 5 |
| 101950 | Qwiic Cables 50 cm | 3 | 5 | 5 |
| - | Qwiic Cables 150 cm | - | - | - |
| 101834 | Qwiic Breakout jumper Cables | 2 | 3 | 5 |
| Accessories | - | DC Motor | - | - | 1 |
| 10100015 | Servo motor | 1 | 1
| 1 |

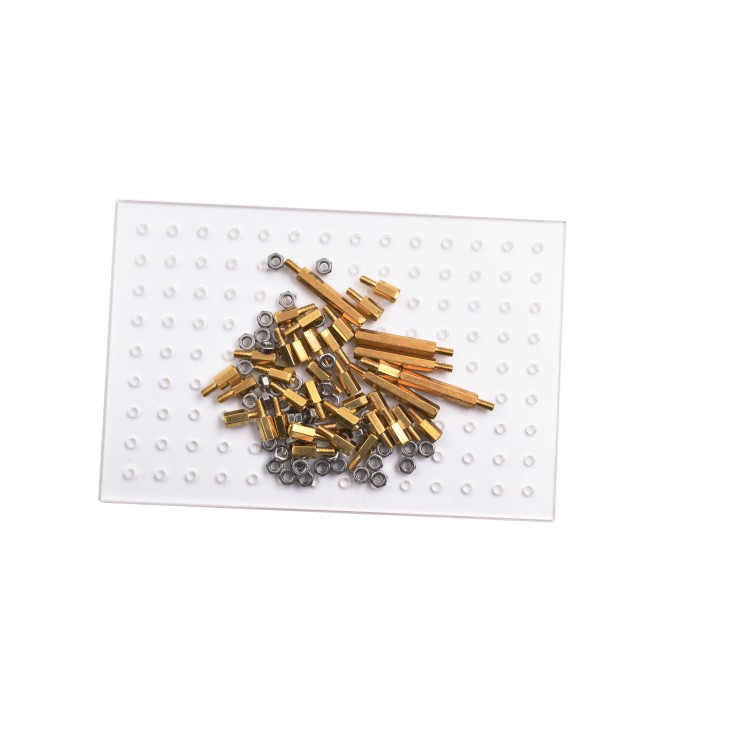

| Enclosure & Mounting (General) | 101843 | Raspberry Case | - | - | - |
| - | Mounting Plate | 1 | 2 | 3 |
| Enclosure & Mounting (Mounting Screws) | - | Nuts | 10 | 20 | 30 |
| - | Screws | 10 | 20 | 30 |
| - | Short Distancer | 10 | 20 | 30 |
| - | Long Distancer | 5 | 10 | 15 |
If you have any suggestions or ideas, or wish to have some sensor or whatever to embed Qwiic, please contact us!
